ASSEMBLING THE WINDROWER
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the float
engagement pin is installed in storage position (B)
and NOT in engaged position (A).

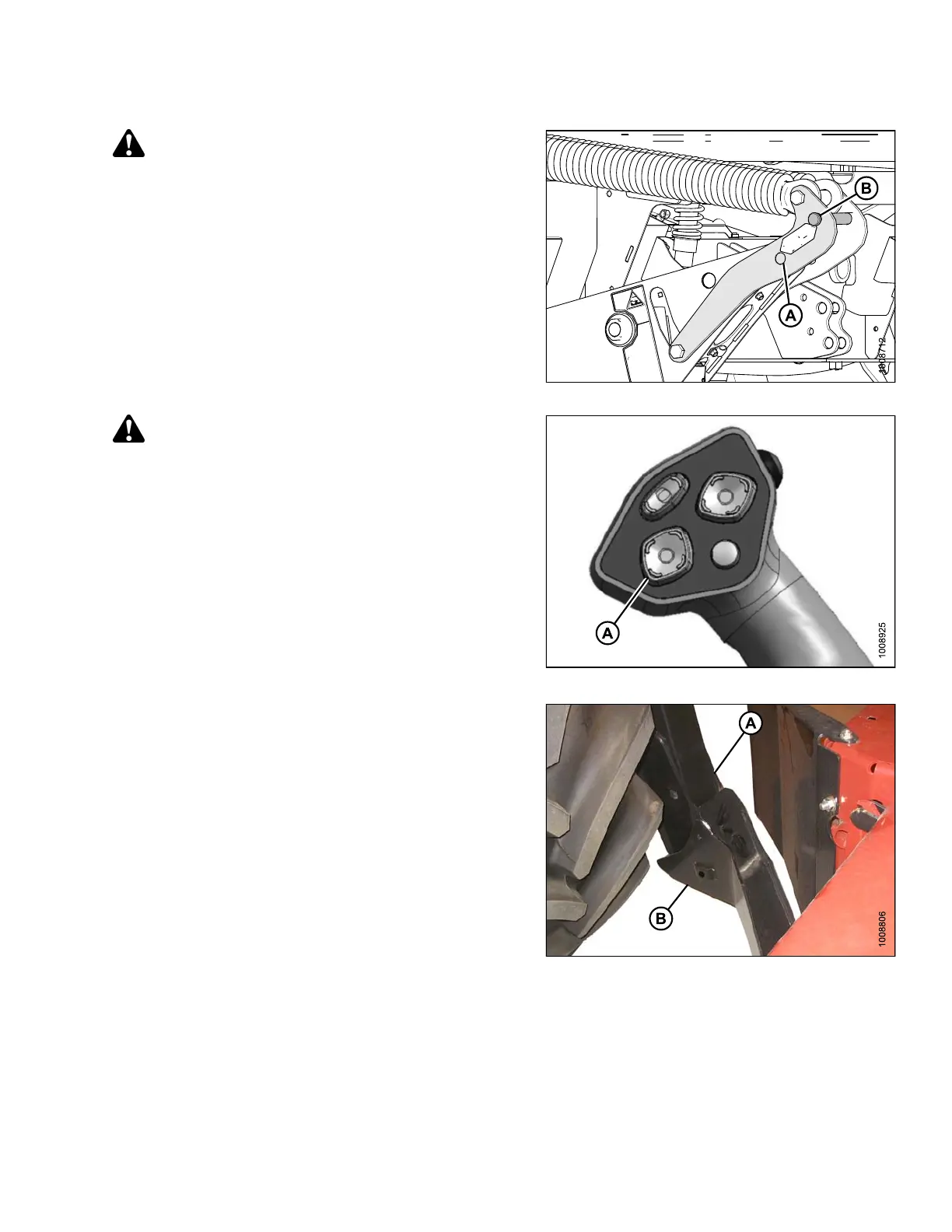

Figure 3.280: Header Float Linkage
CAUTION
Check to be sure all bystanders have cleared the area.
2. Start the engine and activate the HEADER DOWN
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
Figur
e 3.281: Ground Speed Lever
3. Drive the windrower slowly forward until the win drower
feet (A) enter the header boots (B). Continue driving
slowly forward until the feet engage the boots and the
header nudges forward.
Fig
ure 3.282: Header Boot
147962 145 Revision A
