ASSEMBLING THE WINDROWER
13. Remove clevis pin from storage position (B) in linkage
and insert into hole (A) to engage float sprin gs. Secure
with hairpin.

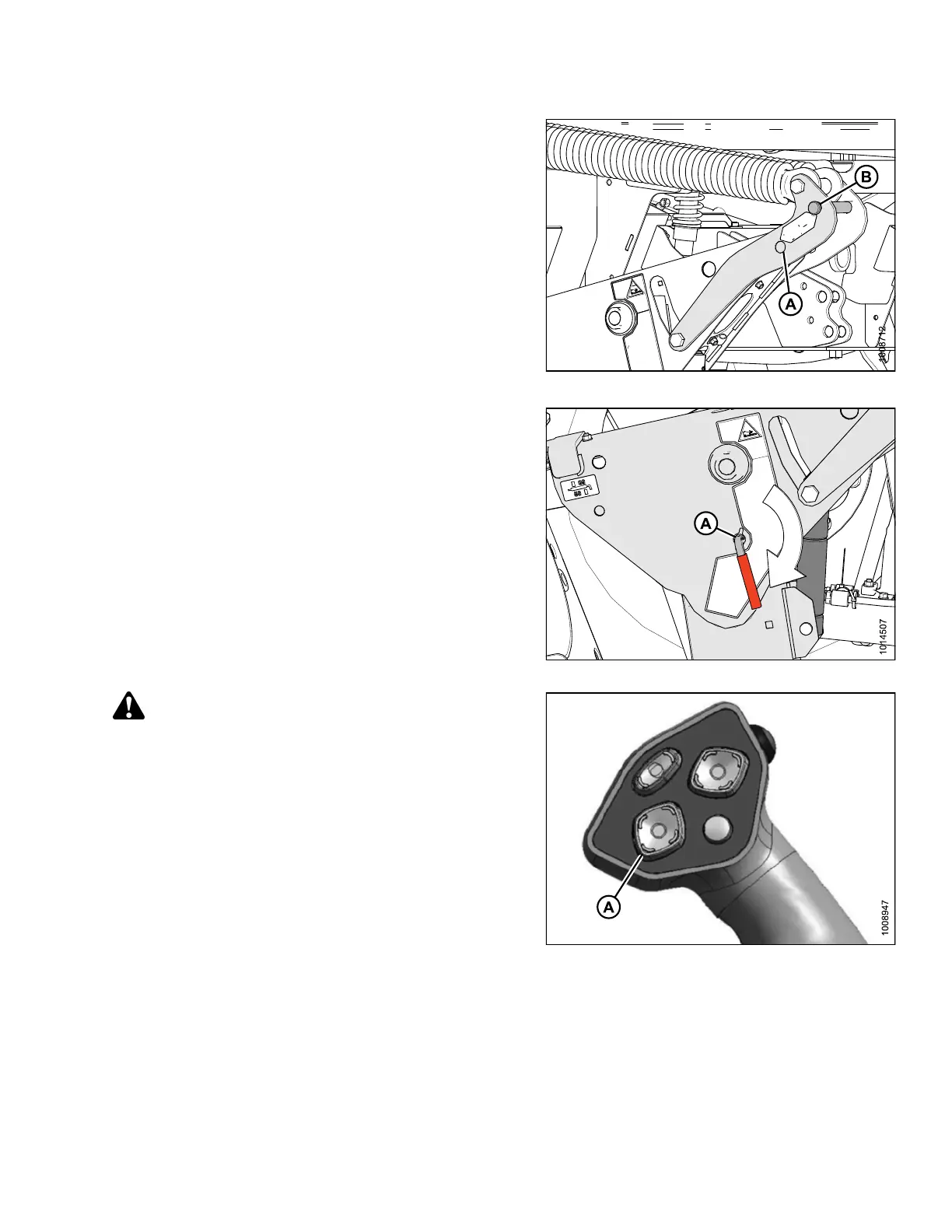

Figure 3.274: Header Float Linkage
14. Disengage safety prop by turning lever (A) downwards
to release and low er sto p until lever locks into
vertical position.
15. Repeat for opposite safety prop.
Figure 3.275: Safety Prop
CAUTION
Check to be sure all bystanders have cleared the area.
16. Start the e ng ine a nd activa te the HEADER DOWN
switch (A) on the GSL to fully lower the hea de r.
17. Stop engine and remove key from ignition.
Figure 3.276: Ground Speed Lever
147962 143 Revision A
