ASSEMBLING THE W INDROWER

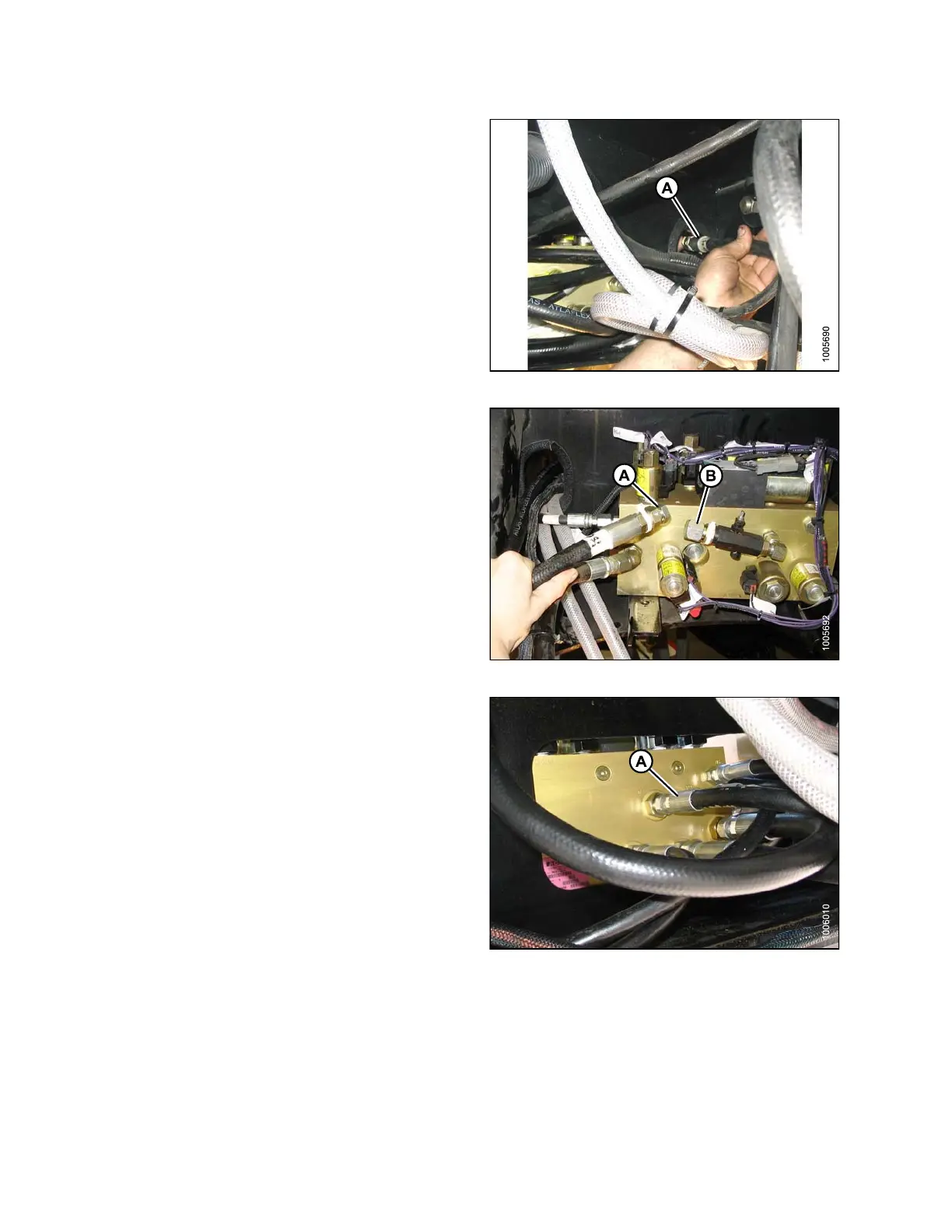

13. Retrieve long hose (MD #119328 [white tie]) (A) and
route through the hole in the left-hand frame.
Figure 3.63: Hose Routing
14. Remove c aps on hose (A) and valve block fitting (white
tie) (B), and make connection. Tighten fitting.
Figure 3.64: Valve Block
15. Remove the cap from the fittin g with yellow tie (A) o n
the valve block from the inboard side of the frame.
Figure 3.65: Valve Block
147962 54 Revision A
