ASSEMBLING THE WINDROWER
CAUTION
Check to be sure all bystanders have cleared the area.
18. Start the e ng ine a nd activa te the HEADER DOWN
switch (A) on the GSL to fully lower the hea de r.
19. Stop engine and remove key from ignition.

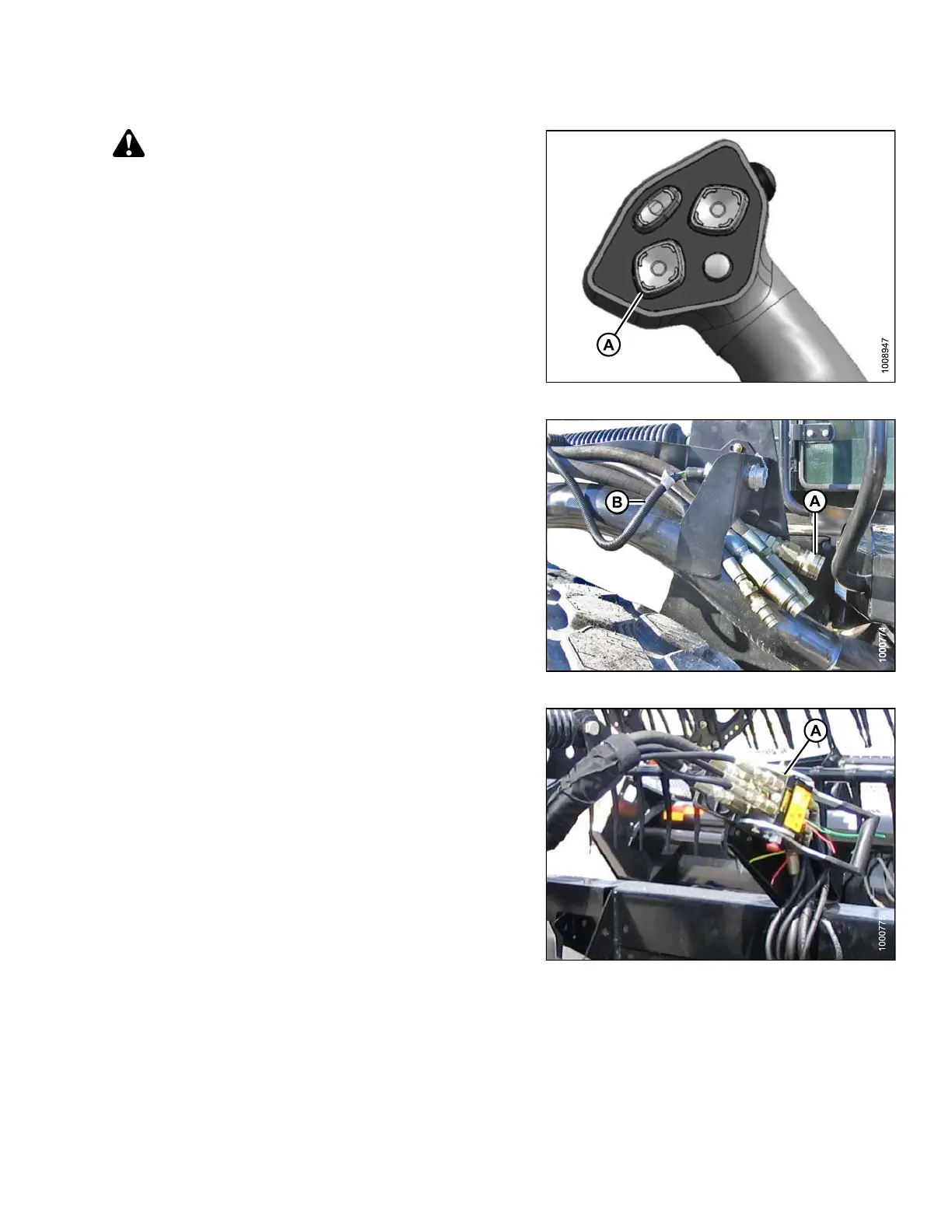

Figure 3.186: Ground Speed Lever
20. Connect h
eader drive hoses (A) and electrical
harness (
B) to header. Refer to the draper header
operator
’s manual.
Figure 3.187: Heade r Drive Hose s and Harnes s
21. Connec
t reel hydraulics (A) at right cab-forward
side of
windrower. Refer to the draper header
opera
tor ’s m anual.
22. Start
engine and raise and lower the header and the
reel a
few times to remove trapped air.
Figure 3.188: Reel Hydraulics
147962 109 Revision A
