ASSEMBLING THE WINDROWER
7. Fit the beacon onto the base making sure the beacon
is oriented wit h the point o n the lens fac ing forward
(cab-forward) as shown.

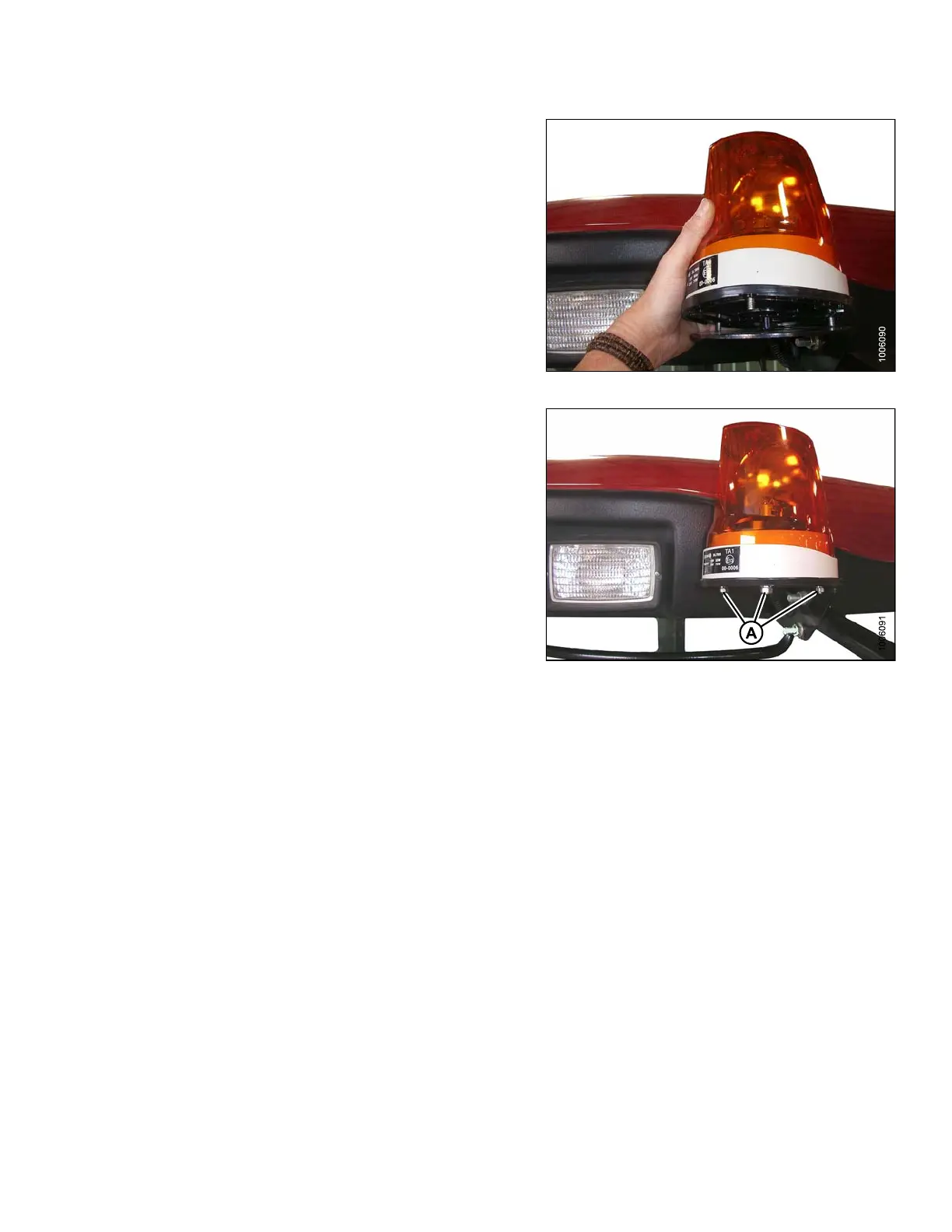

Figure 3.150: Beacon Light Orientation
8. Mount the b
eacon to the base with the lock washers
and nuts (A
) supplied with the beacon.
9. Install t
he second beacon on the opposite side of the
cab roof.
Figure 3
.151: Beacon Light
