ASSEMBLING THE WINDROWER

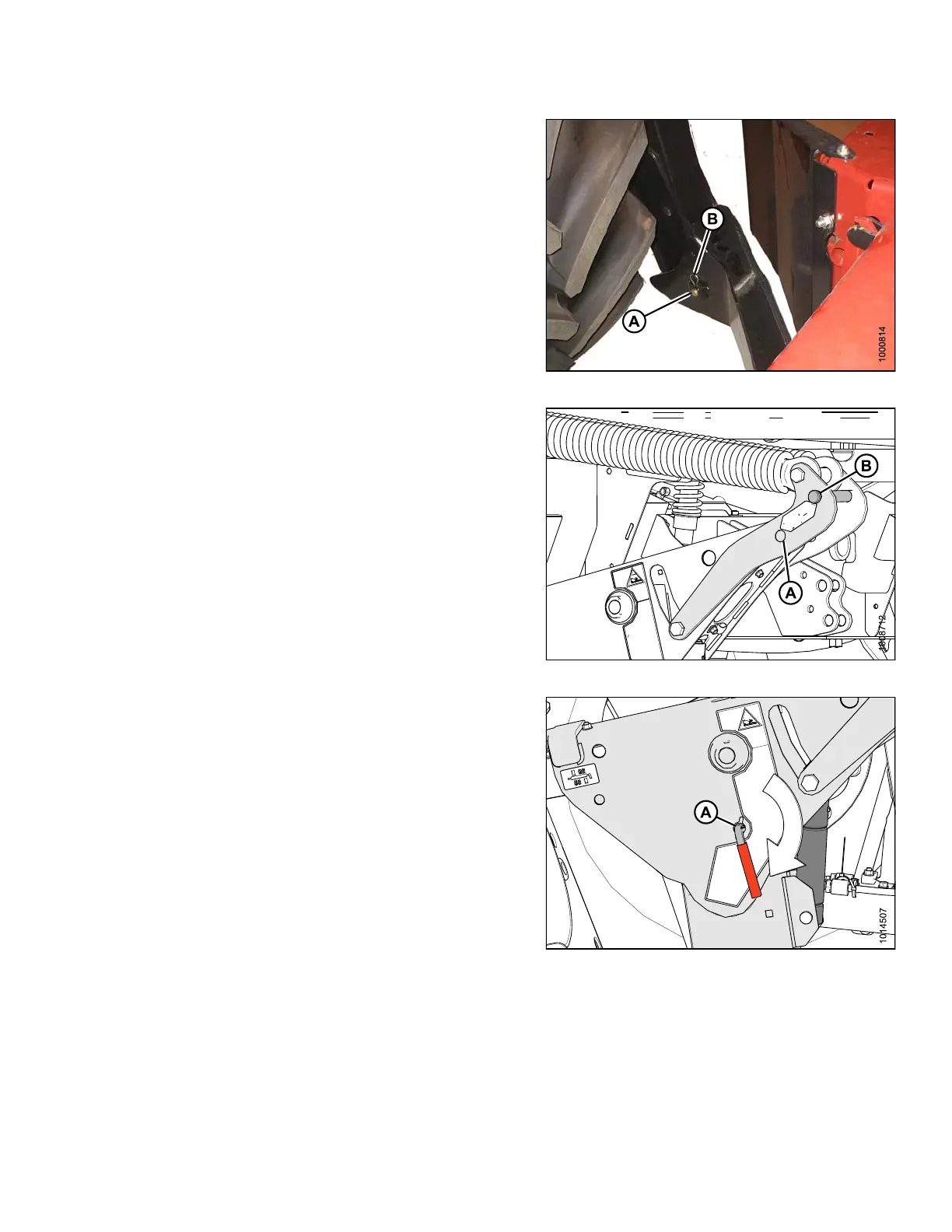

11. Install clevis pin (A) through boot and foot, and secure
with hairpin (B). Repeat for opposite side.
IMPORTAN T:
Ensure clevis pin (A) is fully inserte d and hairpin
is installed behind bracke t.
Figure 3.258: Header Boot
12. Remove clevis pin from storage position (B) in linkage
and insert into hole (A) to engage float sprin gs. Secure
with hairpin.
Figure 3.259: Header Float Linkage
13. Disengage safety prop by turning lever (A) downwards
to release and low er sto p until lever locks into
vertical position.
14. Repeat for opposite safety prop.
Figure 3.260: Safety Prop
147962 137 Revision A
