ASSEMBLING THE WINDROWER
7. Push down on rod end of link cylinder (B) until hook
engages and locks onto header pin.
IMPORTAN T:
Hook release must be down to enable self-locking
mechanism. If the release is open (up), manually
push it down after hook engages header pin.
8. Check that center-link (A) is locked onto header by
pulling upwa r d on rod end (B) of cylinder.

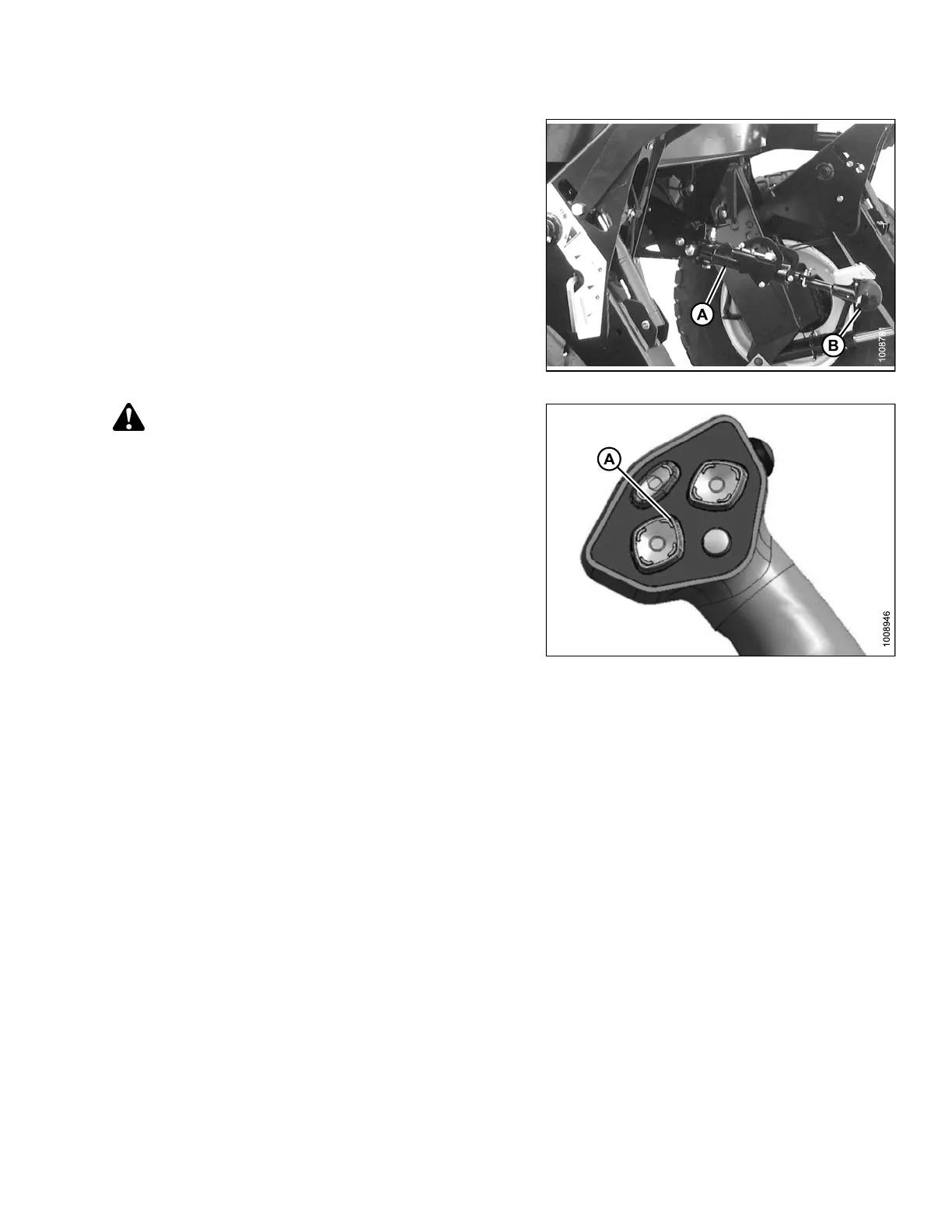

Figure 3.270: Hydraulic Center-Link
CAUTION
Check to be sure all bystanders have cleared the area.
9. Start the engine.
10. Press the HEADER UP switch (A) to raise header to
maximum height.
NOTE:
If one end of the header does NOT fully rise, rephase
the lift cylind ers as follows:
a. Press and hold the HEADER UP switch until both
cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are now phased.
NOTE:
It may be necessary to repeat this procedure if
there is air in the system.
Figure 3.271: Ground Speed Lever
147962
14
1
Revision A
