CAB DISPLAY MODULE (CDM)
4. Press SELECT (D) until KNIFE OV ERLOA D SPD? is
displayed on the upper line.
• Current overload speed is displayed on the
lower line .
NOTE:
Default setting is -300 spm. Range is -500 to
-100 spm. For more information, refer to 5.11.13
Setting and Adjusting Knife Speed, page 351 to
determine proper overload speed.
5. Press left (B) or right (C) arrows to set knife overload
speed. Press SELECT (D).
6. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D) to p roceed to next WINDROWER
SETUP action.

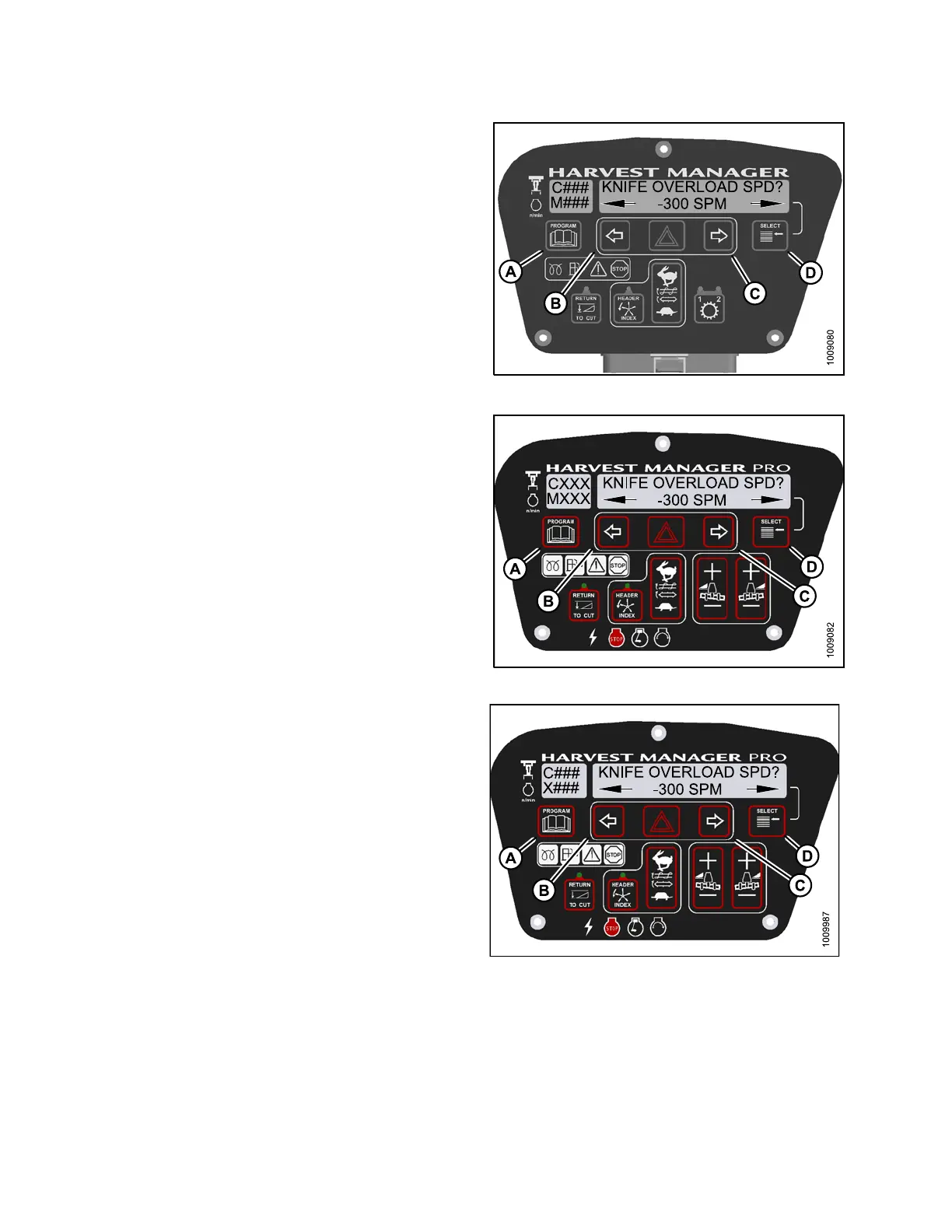

Figure 4.8
9: M105 Knife O verload Speed
Figure
4.90: M155 Knife O verload Speed
Figure 4.91: M205 Knife Overload Speed
147962 192 Revision A
