CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is dis playe d on the lower lin e .
3. Press right (B)arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed.

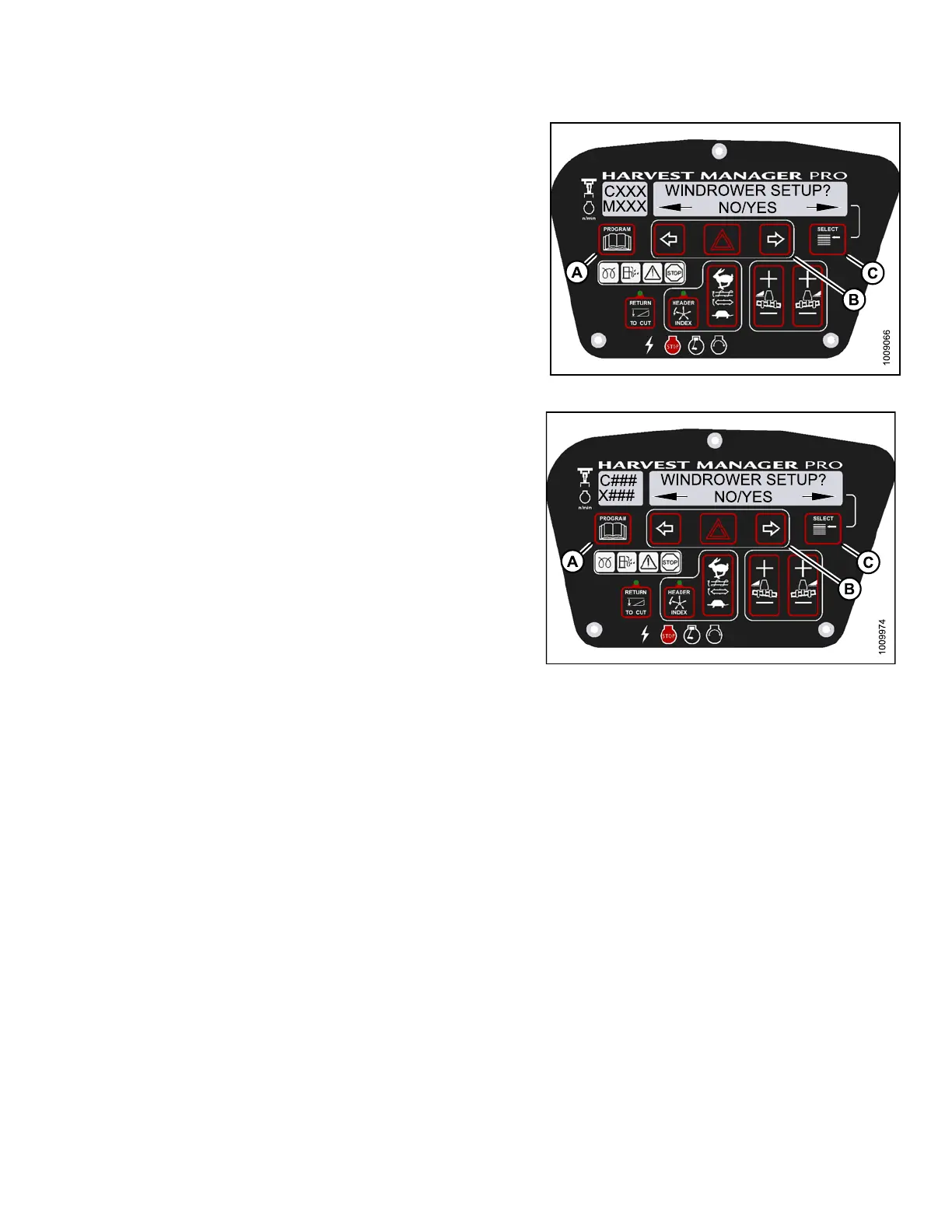

Figure 4.96: M155 CDM Programming Buttons
Figure 4.97: M205 CDM Programming Buttons
147962 195 Revision A
