CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrowto select YE S. PressSELE CT (C).
• SET KNIFE SP EED? is displayed.
• SELECT HEADER TYPE? is displayed.

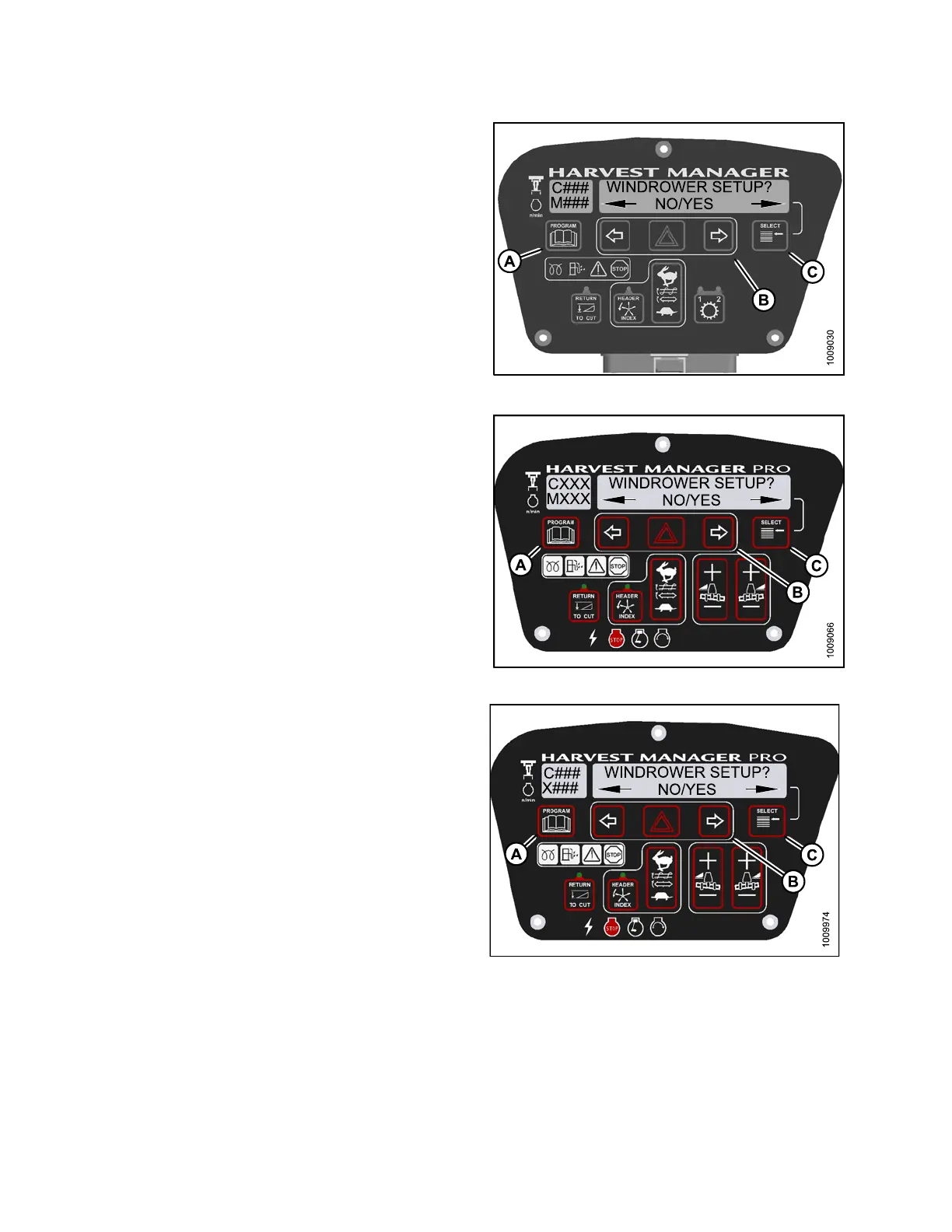

Figure 4.112: M105 CDM Programming Buttons
Figure 4.113: M155 CDM Programming Buttons
Figure 4.114: M205 CDM Programming Buttons
147962 202 Revision A
