CAB DISPLAY MODULE (CDM)
1. Turn ignition key to RUN, or start the engine .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode. Press
SELECT (C).
• WINDROWER SETUP? is displayed on the
upper line.

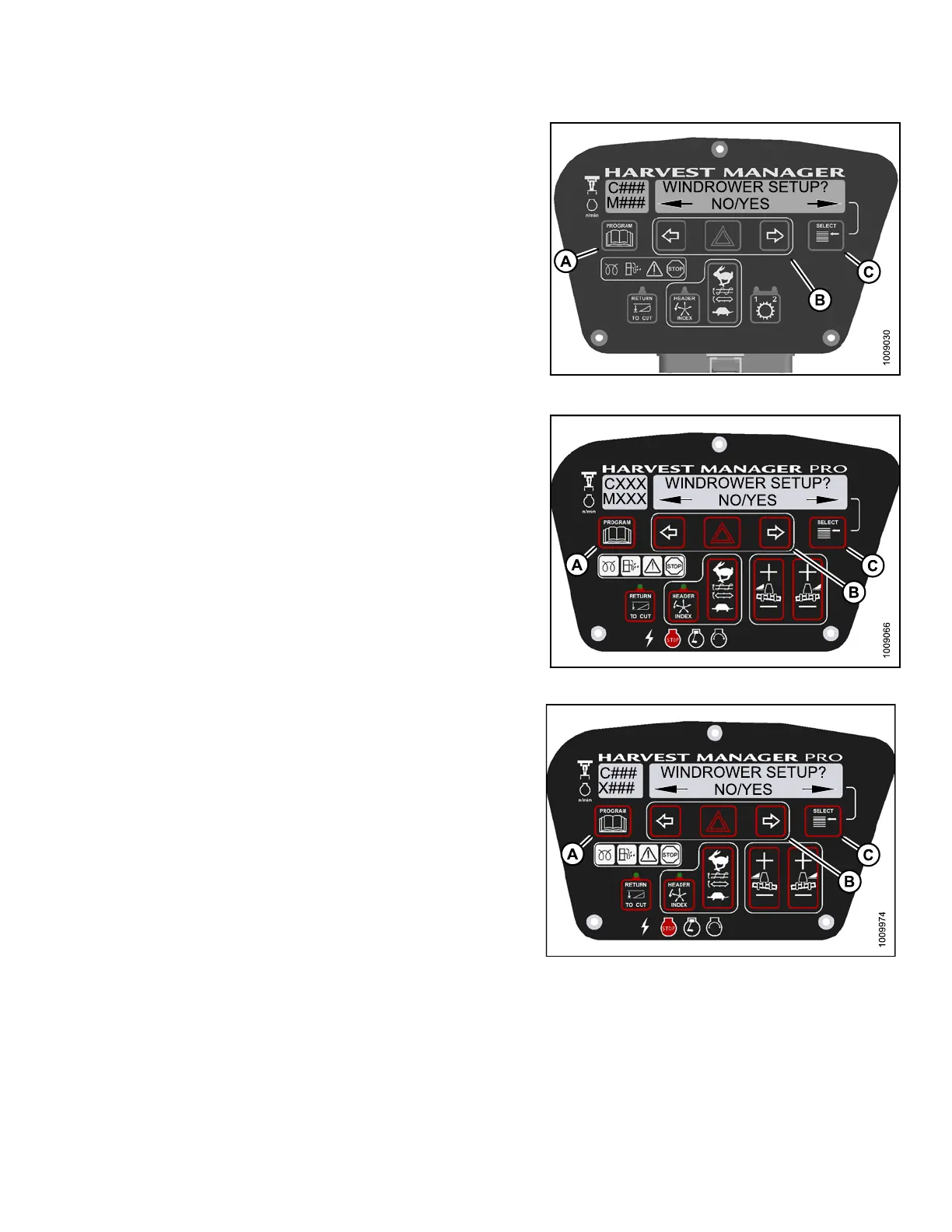

Figure 4.267: M105 CDM Programming Buttons
Figure 4.268: M155 CDM Programming Buttons
Figure 4.269: M205 CDM Programming Buttons
147962 269 Revision A
