CAB DISPLAY MODULE (CDM)
CAUTION
Check to be sure a ll bystanders have cleared t he area.
7. Press SELECT (D) until HEADER DOWN/UP is
displayed on the lower line.
8. Press SELE CT (D) until ACTIVATE HEADER HT is
displayed on the upper line.
• DOWN/UP is displayed on t he lower line.
9. Press and hold left (B) arrow to lower header, or press
and hold right (C) arrow to raise header. Verify header
is functioning properly.
10. Press PROGRAM (A) to exit Programming
Mode or press SELECT (D) to proceed to next
ACTIVATE FUNCTION.

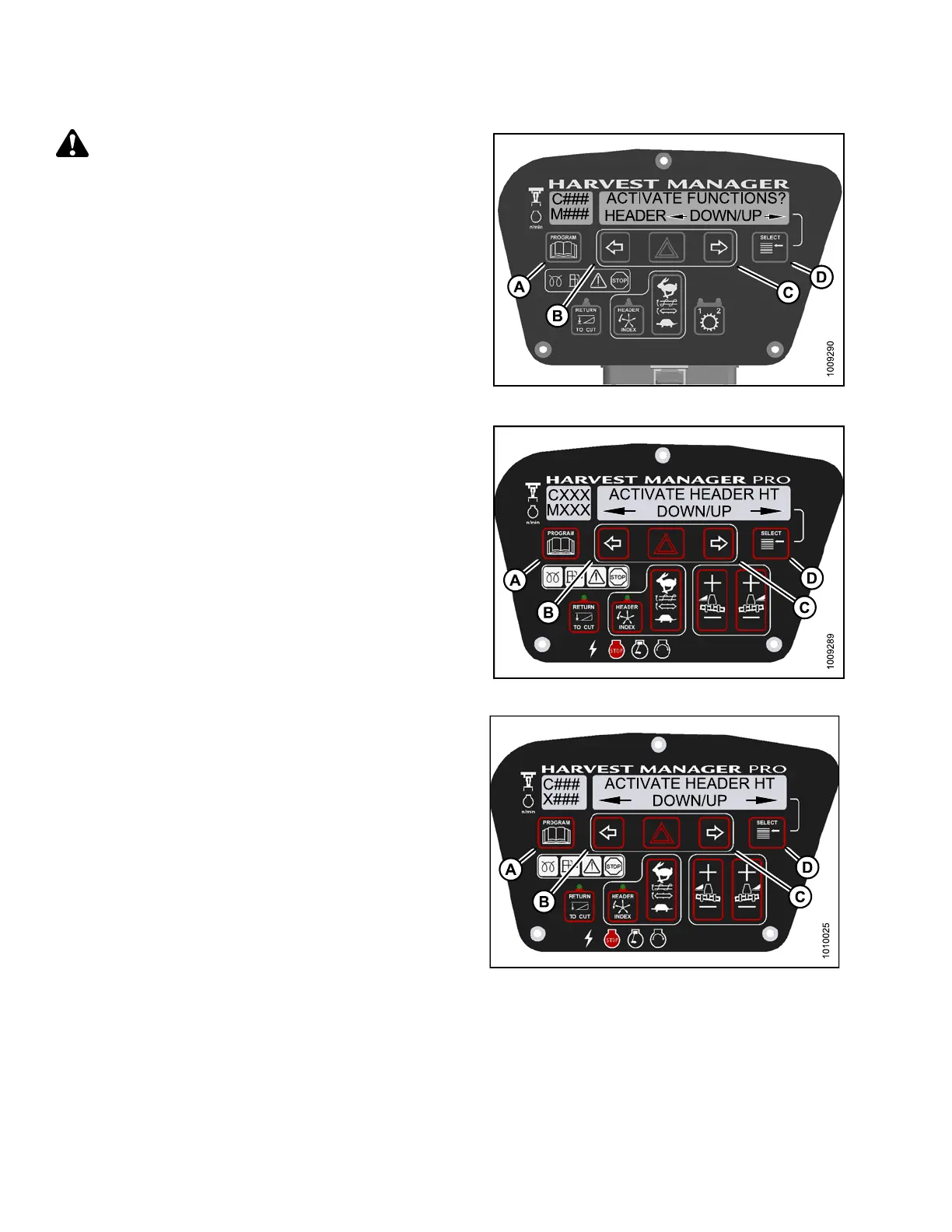

Figure 4.276: M105 Header Height
Figure 4.277: M155 Header Height
Figure 4.278: M205 Header Height
147962
27
2
Revision A
