CAB DISPLAY MODULE (CDM)
NOTE:
• The header MUST be attached to windrower to follow this procedure.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming M ode. Press
SELECT (C).
• WINDROWER SETUP? is displayed on the
upper line.

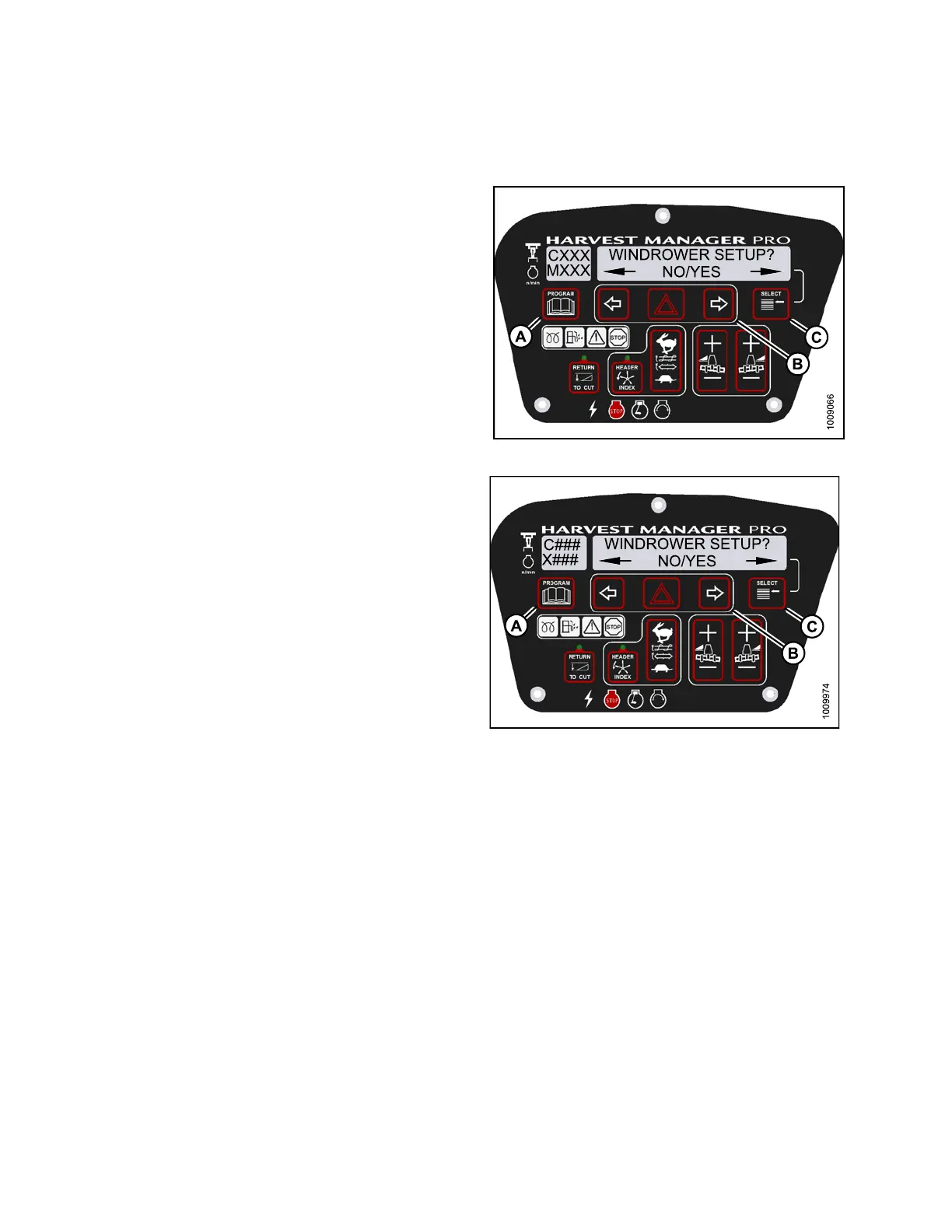

Figure 4.3
42: M155 CDM Programming Buttons
Figure 4.343: M205 CDM P rogramming Buttons
147962 298 Revision A
