ASSEMBLING THE WINDROWER

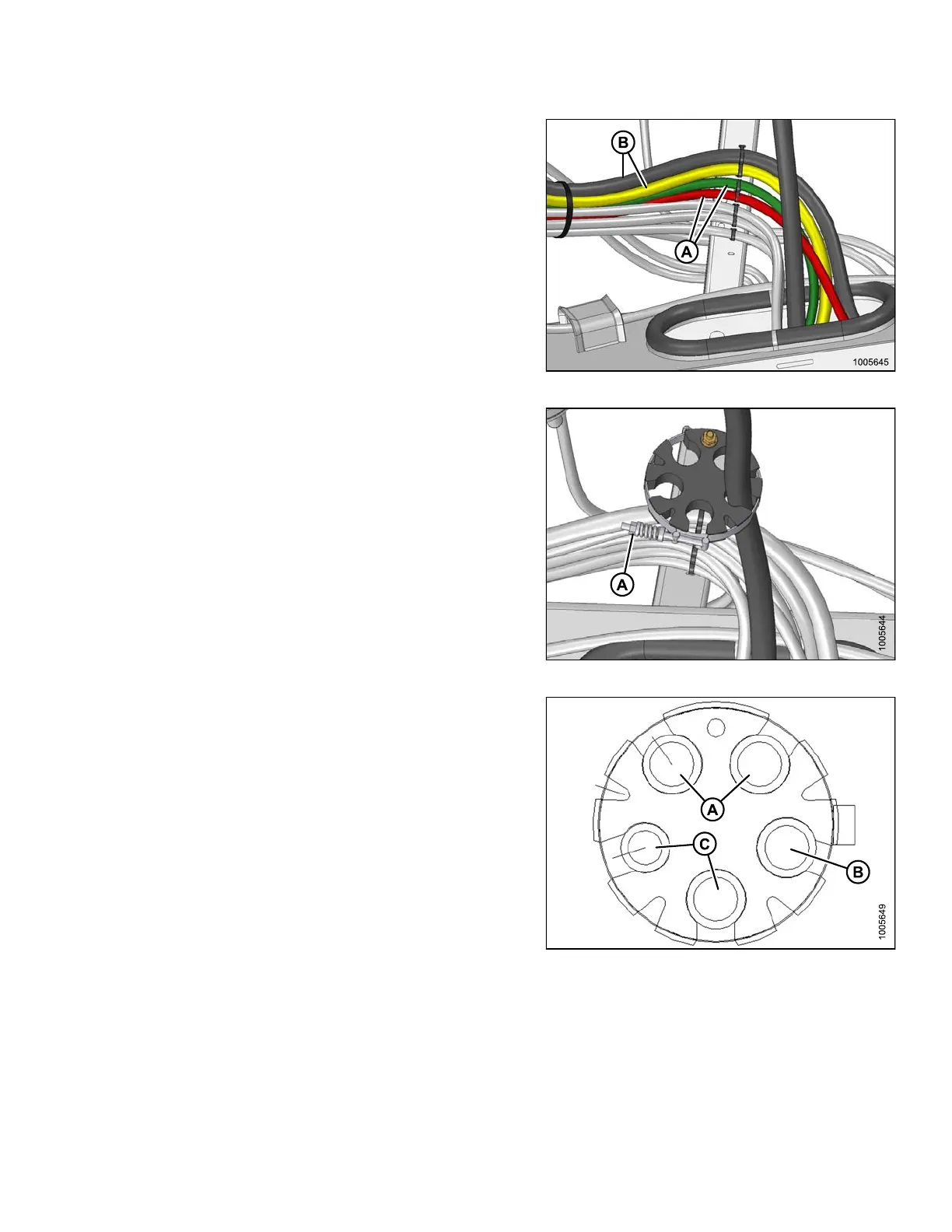

12. Position the two smaller hoses (MD #111323) (A) and
the two larger hoses (MD #111328, MD #111557) (B)
against the support as shown, and secure with
plastic ties.
Figure 3.28: Hydraulic Hose R outing
13. Remove clamp (A) from round plastic hose block (case
drainhoseispreinstalledinblock).
Figure 3.29: Hose Block
NOTE:
Case drain hose (B) is preinstalled in block.
14. Insert two left-hand traction drive hoses (A) into hose
block as shown.
15. Insert two right-hand traction drive hoses (C) into hose
block as shown.
Figure 3.30: Hose Block (View Looking
Forward)
