SEATS
09–13–1
09–13
09–13 SEATS
SEAT OUTLINE. . . . . . . . . . . . . . . . . . . . 09–13–1
SEAT SPECIFICATION. . . . . . . . . . . . . . 09–13–1
SEAT STRUCTURAL VIEW . . . . . . . . . . 09–13–1
POWER SEAT SYSTEM WIRING
DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . 09–13–2
POWER SEAT CONSTRUCTION/
OPERATION . . . . . . . . . . . . . . . . . . . . . . 09–13–3
End of Toc
SEAT OUTLINE
CHU091357100S01
• Front seat with built-in side air bag adopted
• Cushion lifter adopted for the driver-side seat
• Power seat adopted for the driver-side seat
End Of Sie
SEAT SPECIFICATION
CHU091357100S02
End Of Sie

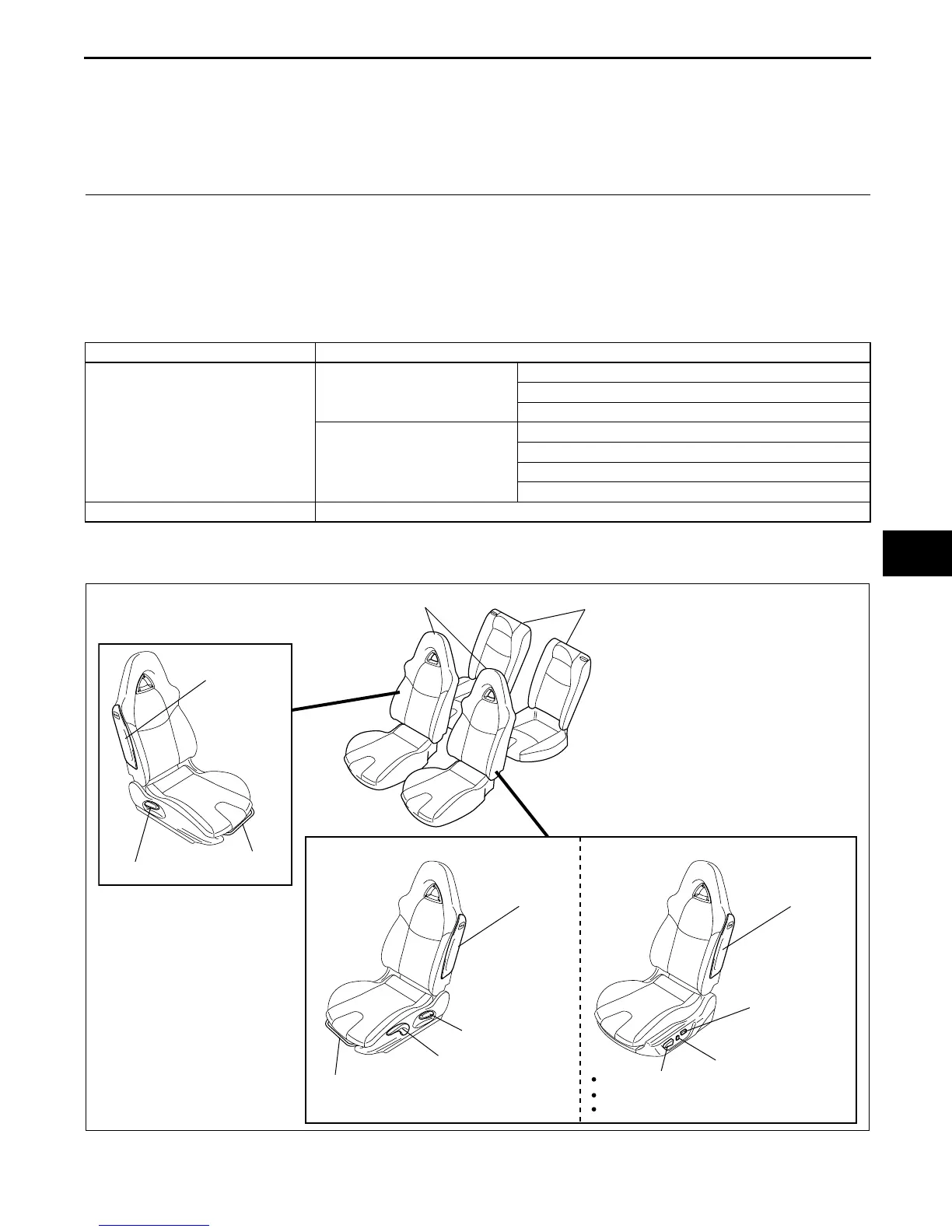

SEAT STRUCTURAL VIEW
CHU091357100S03
End Of Sie
Item Type
Front seat Manual seat Recliner function
Slide function
Cushion lifter function (Driver-side seat only)
Power seat Recliner function
Slide function
Cushion lifter function
Lumbar support function
Rear seat Fixed
RECLINER LEVER
CUSHION LIFTER LEVER
SLIDE LEVER
SLIDE LEVER
RECLINER LEVER
FRONT SEAT
REAR SEAT
SIDE AIR BAG
MODULE
PASSENGER'S SEAT
POWER SEAT
SIDE AIR BAG
MODULE
LUMBAR
SUPPORT
SWITCH
RECLINER SWITCH
SLIDER SWITCH
FRONT TILT SWITCH
REAR TILT SWITCH
DRIVER'S SEAT
MANUAL SEAT
SIDE AIR BAG
MODULE
CHU0913S101
