SEATS

09–13–2

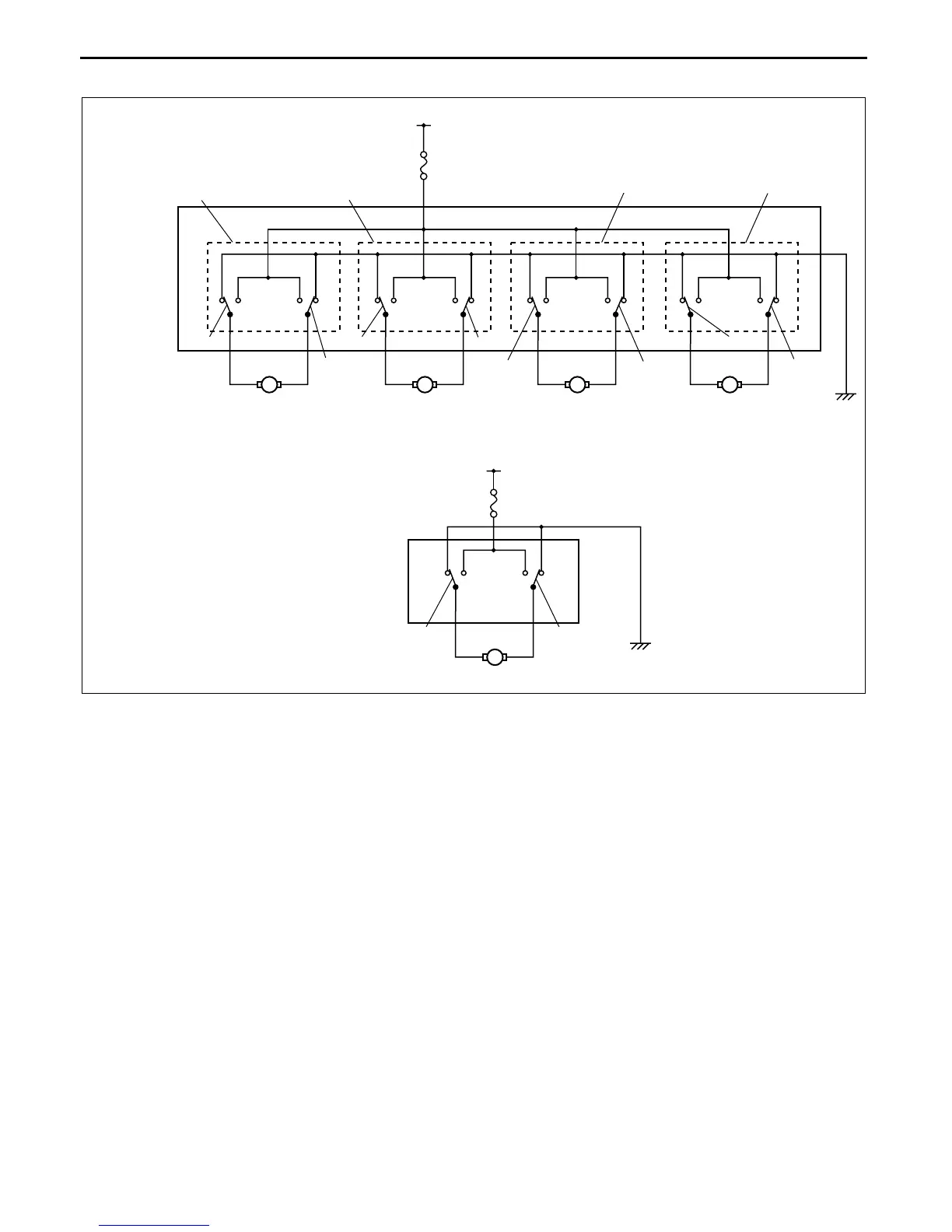

POWER SEAT SYSTEM WIRING DIAGRAM

CHU091357101S01

End Of Sie

FRONT TILT MOTOR REAR TILT MOTOR SLIDE MOTOR RECLINER MOTOR

POWER SEAT

SWITCH

UP

DOWN

UP

DOWN

FORWARD

BACKWARD

FORWARD

BACKWARD

LUMBAR

SUPPORT

SWITCH

LUMBAR SUPPORT MOTOR

FORWARD

BACKWARD

FRONT TILT SWITCH REAR TILT SWITCH

SLIDE SWITCH RECLINER SWITCH

B+

M MMM

B+

M

CHU0913S102
