SUNROOF
09–15–3
09–15

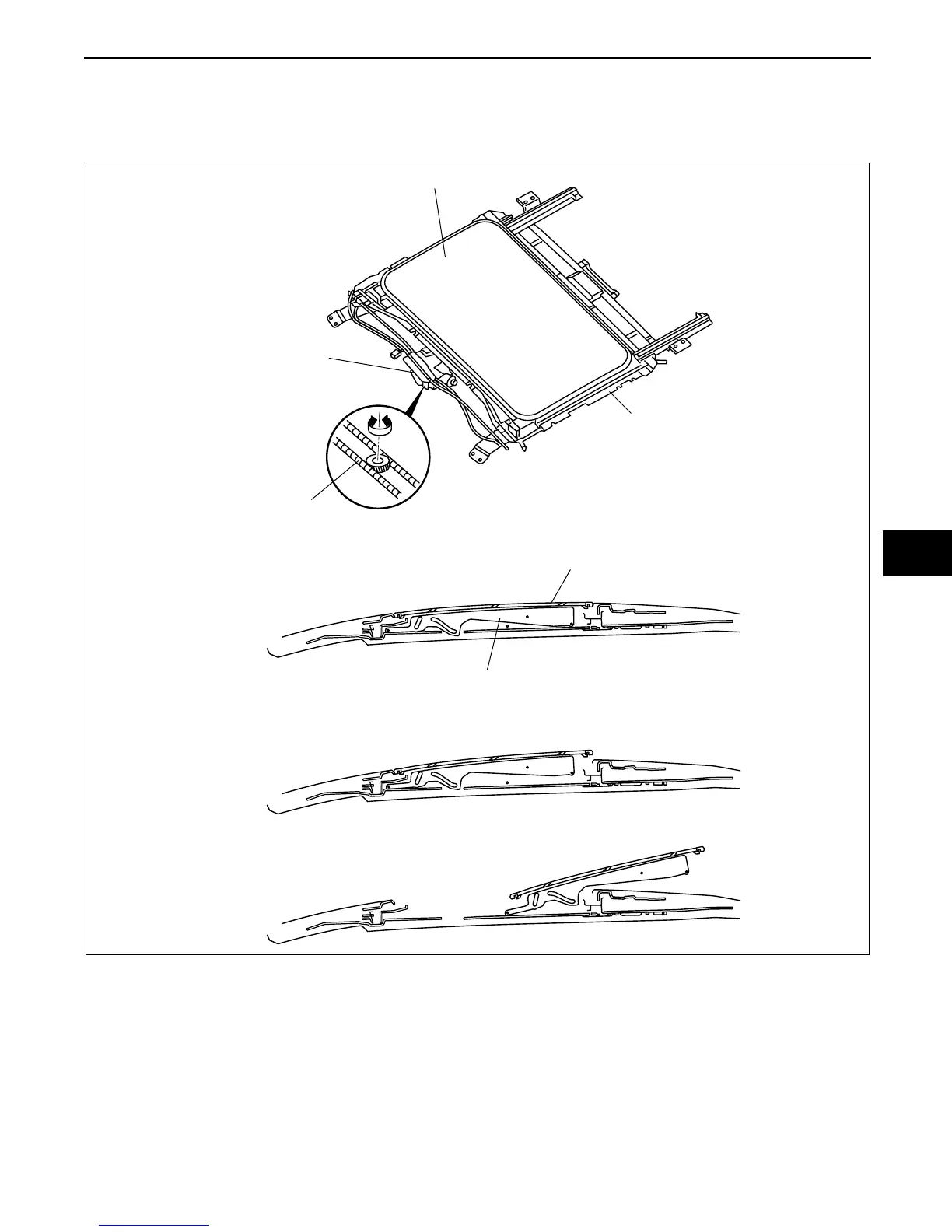

SUNROOF UNIT CONSTRUCTION/OPERATION
CHU091569850S01
• Consists of a glass panel, frame and sunroof motor.
• The drive cables inside the frame are engaged with the sunroof motor drive gear so that when the motor rotates
the drive cables also move.
• The guides are fixed to the glass panel so that the panel is moved by the drive cables sliding the guides.
End Of Sie
FULLY CLOSED
FULLY OPEN
DRIVE CABLE
GLASS PANEL
GLASS PANEL
GUIDE
FRAME
SUNROOF MOTOR
TILT UP
CHU0915S103
