AUTO LEVELING CONTROL MODULE CONSTRUCTION/OPERATION
CHU091801052S11
• The auto leveling control module is located in the underside of the blower unit in the dashboard.
• The auto leveling control module verifies changes in vehicle speed and attitude based on signal inputted from
the ABS (DSC) HU/CM, and front and rear auto leveling sensors. The control module then calculates the
optimal direction for the optical axis.
• Based on the calculation of the optical axis adjustment amount, the auto leveling control module controls the
headlight leveling actuator.
End Of Sie

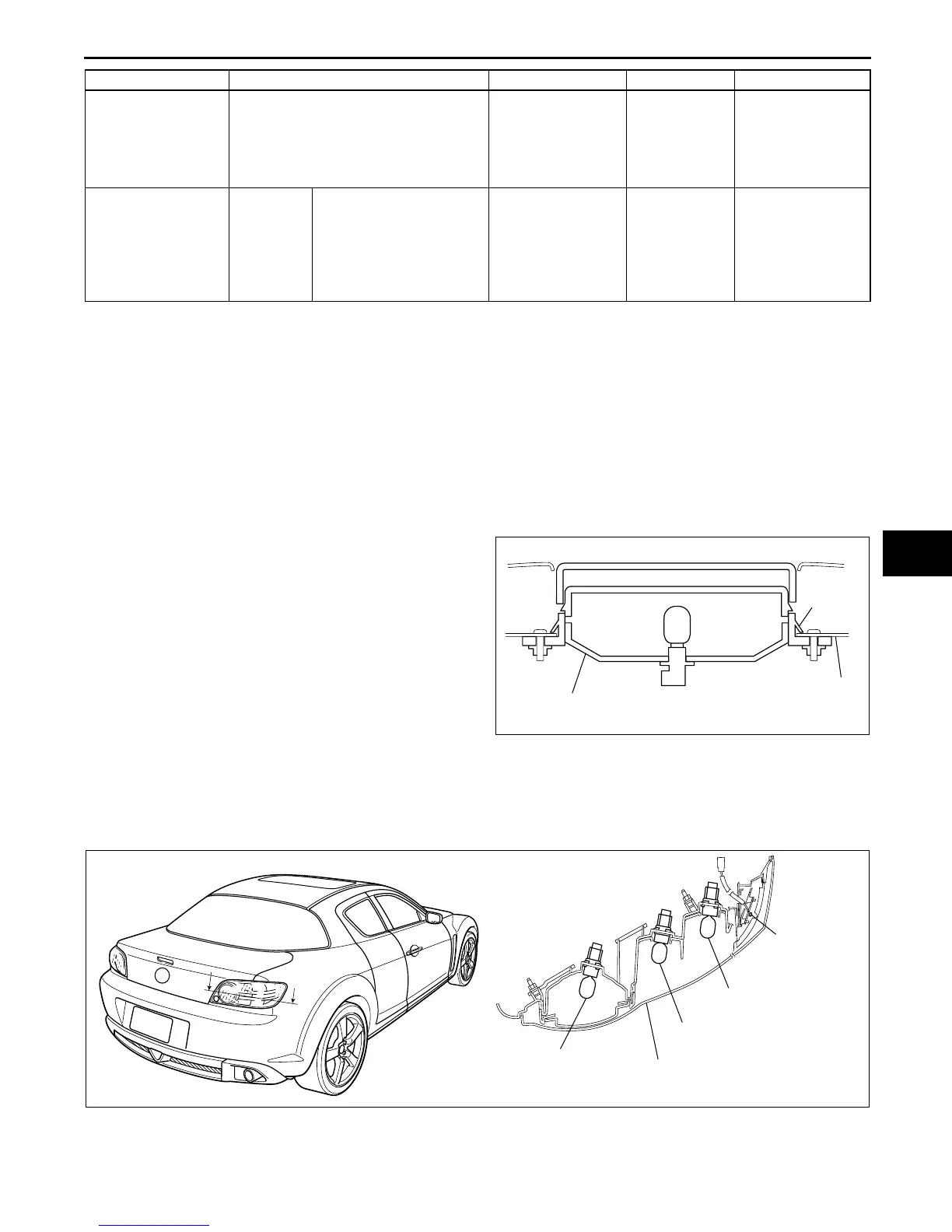

HIGH-MOUNT BRAKE LIGHT CONSTRUCTION
CHU091851580S01
• Installed to the trunk lid with the connecting tabs
and nuts.
End Of Sie
REAR COMBINATION LIGHT CONSTRUCTION
CHU091801052S12
• A step reflector that diffuses and reflects the light of the rear combination light bulbs, has been adopted. A flat,
uncut lens has been adopted to control illumination distribution.
• A round reflector for the rear combination lights has been adopted to improve design.
• Rear side marker lights for the rear combination lights have been adopted to improve marketability.
End Of Sie
ABS (DSC) HU/CM Vehicle speed of 180 km/h or more
detected
Fixes the optical
axis angle at the
position where
vehicle speed of 180
km/h or more
detected
Not illuminated Vehicle speed of
less than 180 km/h
detected
Battery voltage Excessive
power
supply
voltage
Battery voltage of 18.5 V
or more detected
Fixes headlights in
position where
excessive power
supply voltage was
determined.
Illuminated When battery
voltage of 17.5 V or
less is detected, or
ignition switch is
turned off and then
to the ON position
again.
Item Test condition Fail-safe function Indicator light Cancel condition
HIGH-MOUNT BRAKE LIGHT
TRUNK LID
TAB
CHU0918S109
SEC. A—A
A
A
REAR TURN
LIGHT BULB
BRAKE LIGHT/
TAILLIGHT BULB
REAR COMBINATION LIGHT
BACK-UP
LIGHT BULB
REAR SIDE
MARKER LIGHT
BULB
CHU0918S108
