LIGHTING SYSTEMS
09–18–10

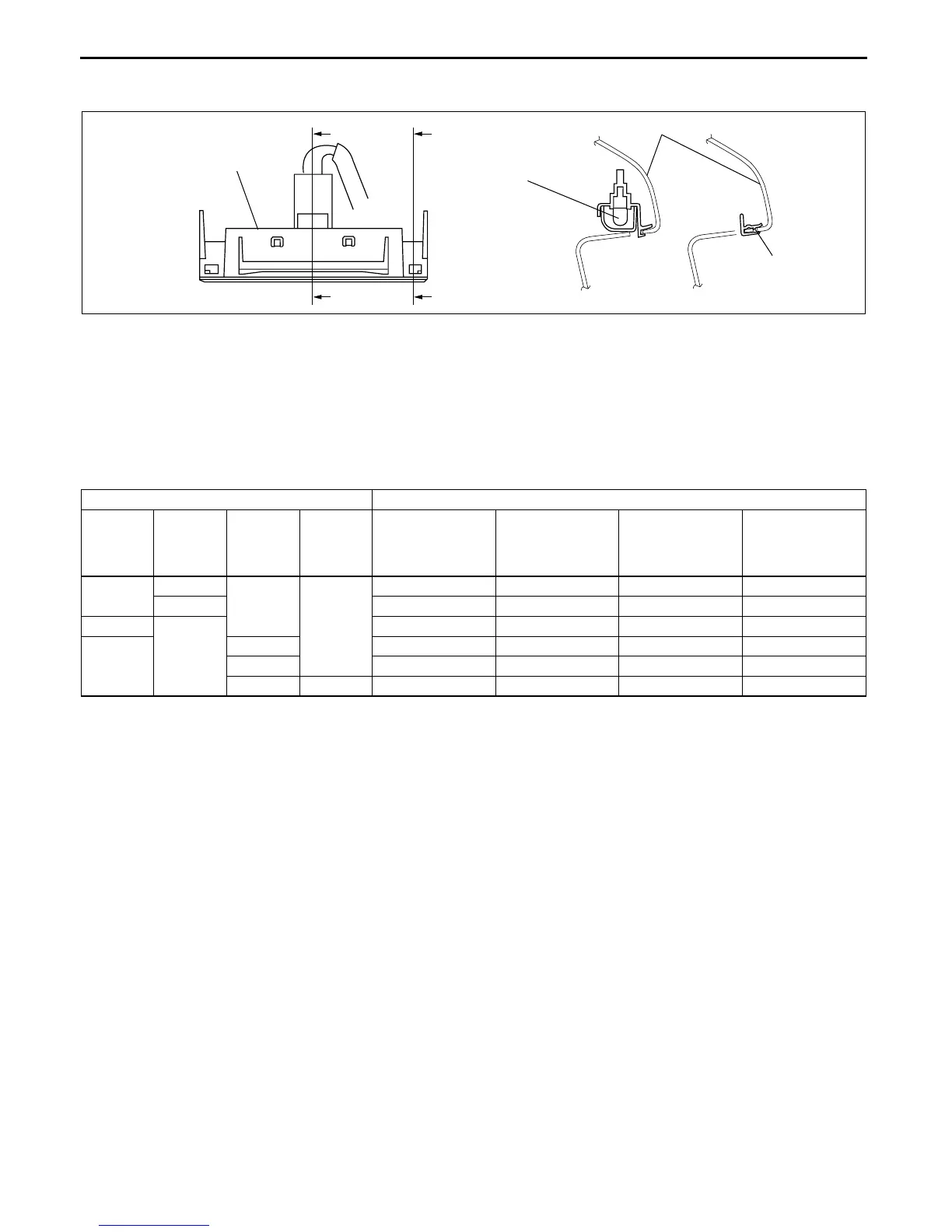

LICENSE PLATE LIGHT CONSTRUCTION
CHU091851270S01
• Installed to the rear bumper with the connecting tabs.
End Of Sie
DRL SYSTEM OUTLINE
CHU091801056S01
• The DRL system automatically operates the low-beam headlights when the ignition switch is turned to the ON
position.
End Of Sie
DRL SYSTEM OPERATION
CHU091801056S02
• The running light system automatically turns on the high-beam headlights with their brightness reduced under
the following conditions:
End Of Sie
A
TAB
LICENSE PLATE
LIGHT BULB
REAR BUMPER
SEC. A—A SEC. B—B
AB
B
LICENSE PLATE LIGHT
CHU0918S135
Operation condition (Input signal) Operation condition of illumination (Output signal)
Ignition
switch
Parking
brake
switch
Headlight
switch
Flash-to-
pass
switch
Low-beam
headlight
High-beam
headlight
Taillight, Parking
light, License
light, Front side
marker light
Illumination light
ON
OFF
OFF
OFF
- Illuminates (DRL) - -
ON ----
LOCK
OFF
----
ON
TNS - - Illuminates Illuminates
Headlight Illuminates - Illuminates Illuminates
OFF ON Illuminates Illuminates - -
