LIGHTING SYSTEMS
09–18–15
09–18
IGNITION KEY ILLUMINATION FUNCTION
CHU091851311S05
• The illumination time of the ignition key illumination is controlled by the microcomputer in the instrument cluster.
• The ignition key illumination glows when the ignition switch is at the LOCK or ACC position and any door is
open.
End Of Sie
IGNITION KEY ILLUMINATION OPERATION
CHU091851311S06
Illumination Condition
• The ignition key illumination glows under all of the following conditions.
— Driver-side door is open. (Driver-side door switch is on.)
— Ignition switch is at the LOCK or ACC position. (IG1 off)
Cancel Condition
• The ignition key illumination goes out under any of the following conditions.
— Approx. 30 s after all doors are closed. (Approx. 30 s after all door switches are off.)
— Ignition switch is at the ON position. (IG1 on)
— Approx. 5 minutes after ignition key illumination begins.
End Of Sie

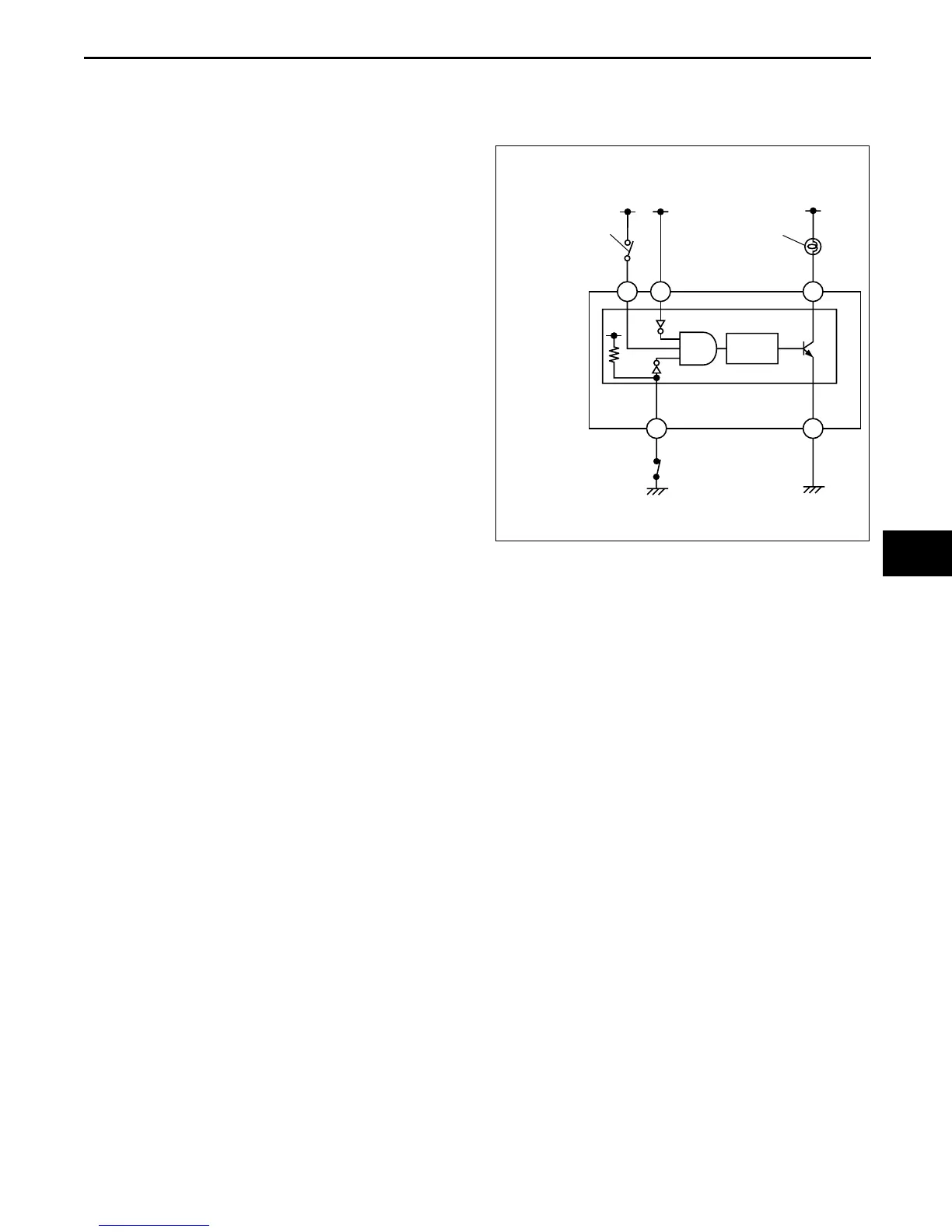

AND
IG1
MICRO COMPUTER
INSTRUMENT
CLUSTER
DOOR SWITCH
(DRIVER'S SIDE)
TIMER
KEY REMINDER
SWITCH
IGNITION KEY
ILLUMINATION
BULB
B+
2B 2V
2C
1I
2F
B+
B+
CHU0918S114
