CONTROL SYSTEM
09–40–9
09–40
2. PID/data monitor information for the ABS HU/CM and instrument cluster can be verified using an SST (WDS or
equivalent).
3. If there is a communication error between the ABS HU/CM and PCM, or between the instrument cluster and
PCM, even if the communication between the ABS HU/CM and the instrument cluster is normal, it is probable
that there is a malfunction in the PCM or PCM-related wiring harnesses.
End Of Sie

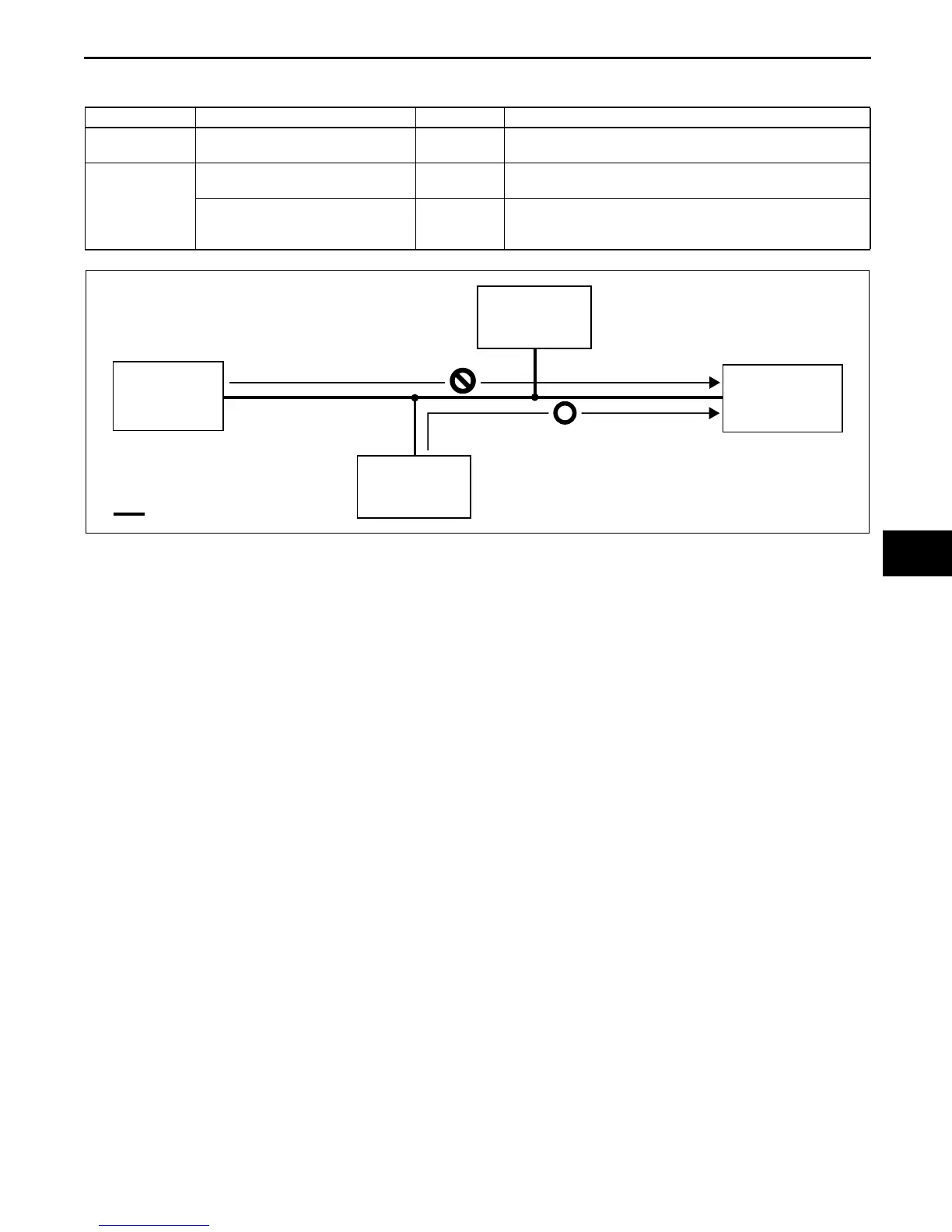

Module PID name (definition) Condition Probable malfunction point
ABS HU/CM
PCM_MSG
(Missing message from the PCM)
Not Present Communication error between ABS HU/CM and PCM
Instrument
cluster
PCM_MSG
(Missing message from the PCM)
Not Present
Communication error between instrument cluster and
PCM
ABS_MSG
(Missing message from the ABS
HU/CM
Present
Normal communication between instrument cluster and
ABS HU/CM
PCM
INSTRUMENT
CLUSTER
ABS HU/CU
DLC-2
: TWISTED PAIR
NO GOOD
GOOD
CHU0940S004
