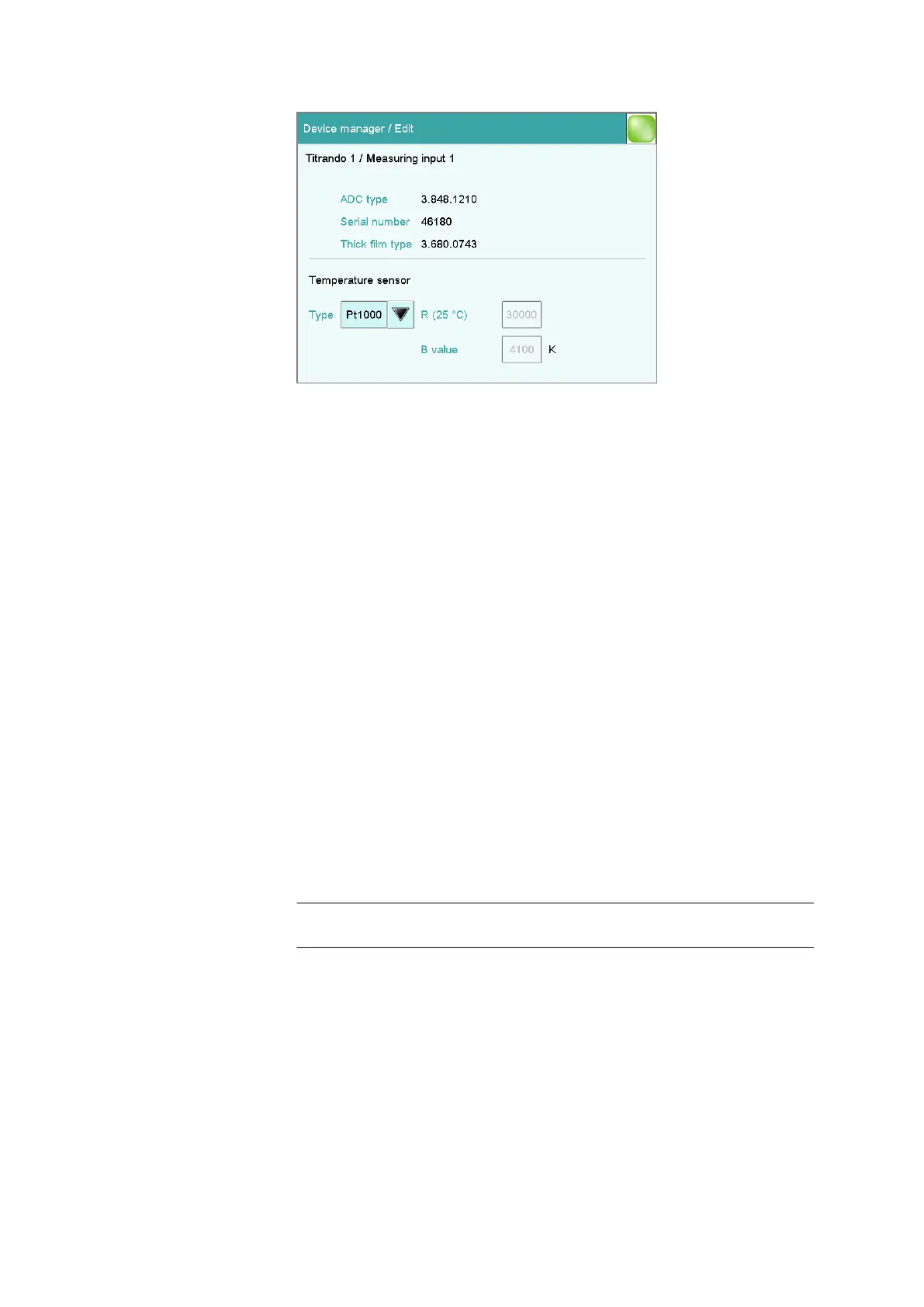

In this dialog, you define the type of temperature sensor you have con-
nected to the selected measuring input.
ADC type
Type of analog-digital converter.
Serial number
Serial number of the measuring interface.
Thick film type
Type of the thick film.
Temperature sensor
Type
The instrument supports the use of two different temperature measure-
ment techniques:
￭ NTC (Negative Temperature Coefficient)
￭ Pt1000 (Platinum resistance)
Select here the type that has been connected to the instrument. If an NTC
sensor is used, then it is also necessary to enter two sensor characteristics.
These characteristics are listed in the specifications of the sensor.
Selection Pt1000 | NTC
Default value Pt1000
R (25 °C)
This parameter can only be edited with Type = NTC.
Nominal resistance of the NTC sensor at 25 °C.
