Trainee Guide TR-L2-M2000
Level 2 Maintenance Training - M2000 Dispensing Systems 3-2-5 P/N 73-0018-00 (Revision B)
Exercise Sheet 3-2-1
Replacing the Purge and Weigh Station Cups and Banjo Wipe
1. Remove the Purge and Weigh Station cups (Refer to diagram below).
2. Remove the plastic cups inside of each station and discard them.
3. Discard the banjo wipe inside of the Weigh Station cup.
4. Place new plastic cups inside of each station.
5. Place a new banjo wipe into the cup inside of the Weigh Station.
6. Replace the station lids.

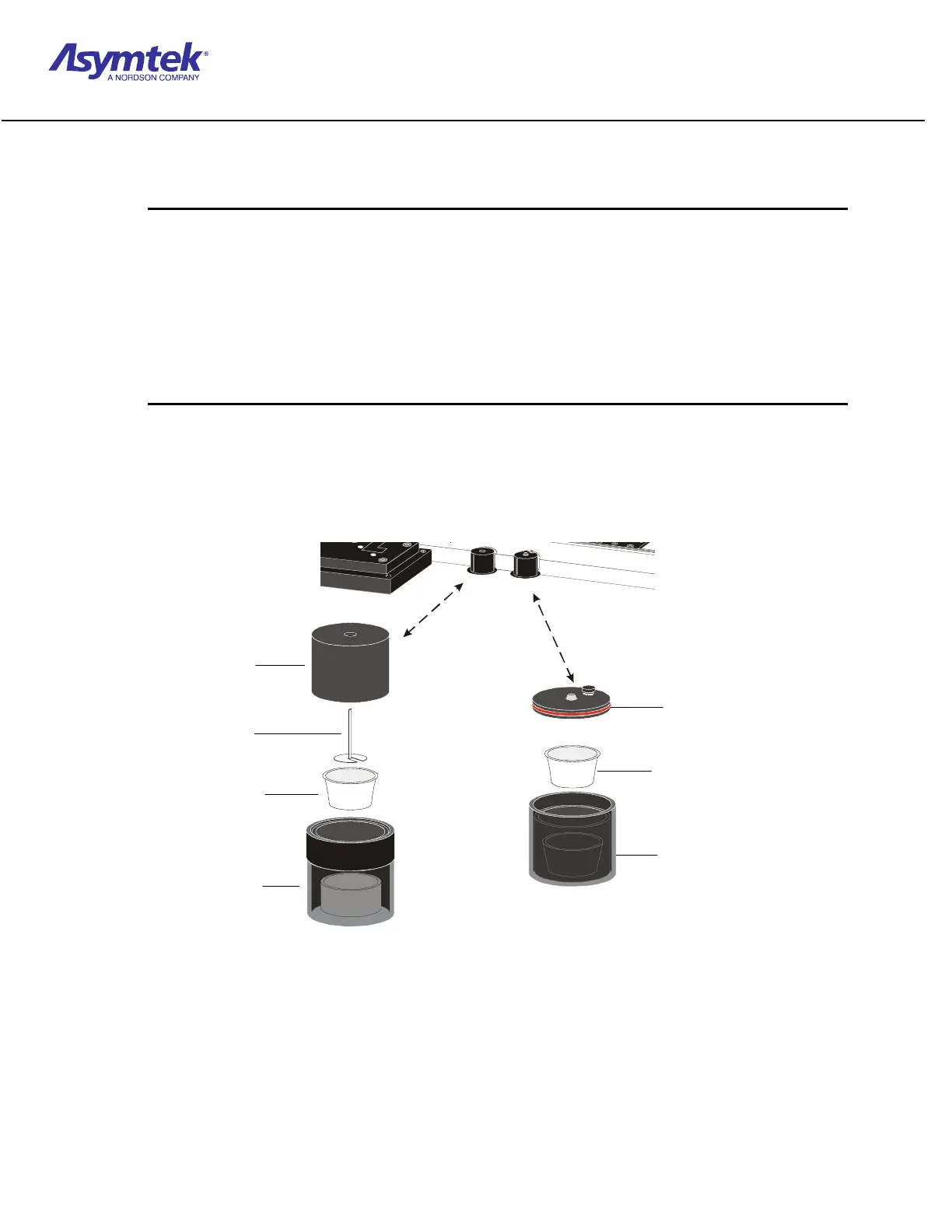

Replacing Station Cups and Banjo Wipe
Weigh Station
Lid
Banjo Wipe
Plastic Cup
Cutout Showing
Inside of Station
Purge Station Lid
Plastic Cup
Cutout Showing
Inside of Station
To Next Page
