Trainee Guide TR-L2-M2000
Level 2 Maintenance Training - M2000 Dispensing Systems 3-2-6 P/N 73-0018-00 (Revision B)
Exercise Sheet 3-2-2
Replacing the Purge Boot
1. Remove the purge station lid.
2. Grip the top of the purge boot with a pair of needle-nosed pliers and pull it out of
the lid from the top.
3. Obtain a new boot (
See table below for size verification).
4. Push the new boot into the top of the lid until it starts to come out of the bottom
5. Grip the bottom of the boot with a pair of needle-nosed pliers and gently pull until it
pops into position.
Purge Boot Colors, Sizes and Compatible Needles
Purge Boot Color
Inside Diameter
Compatible Needle
Gauges
Orange 0.5 mm (0.20 in) 26, 27, 30, 32
Pink 0.8 mm (0.31 in) 22, 23, 24, 25
Green 1.1 mm (0.45 in) 19, 20, 21
Olive 3.0 mm (.120 in) 14, 15, 16, 18

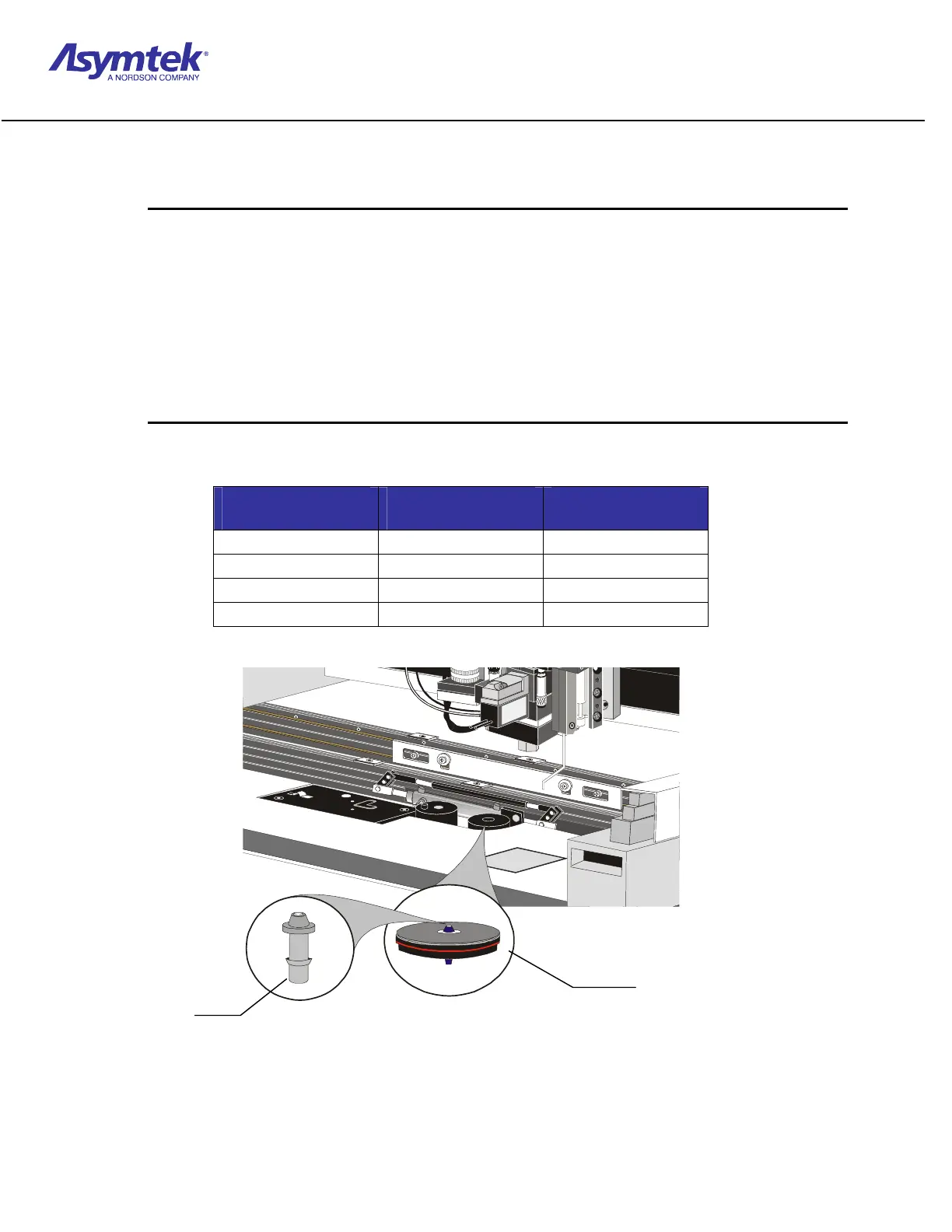

Close-up of Purge
Station Lid
Purge
Boo
Purge Boot Close-up
