Remove the Motherboard
3.
Remove cables from the motherboard.
a.

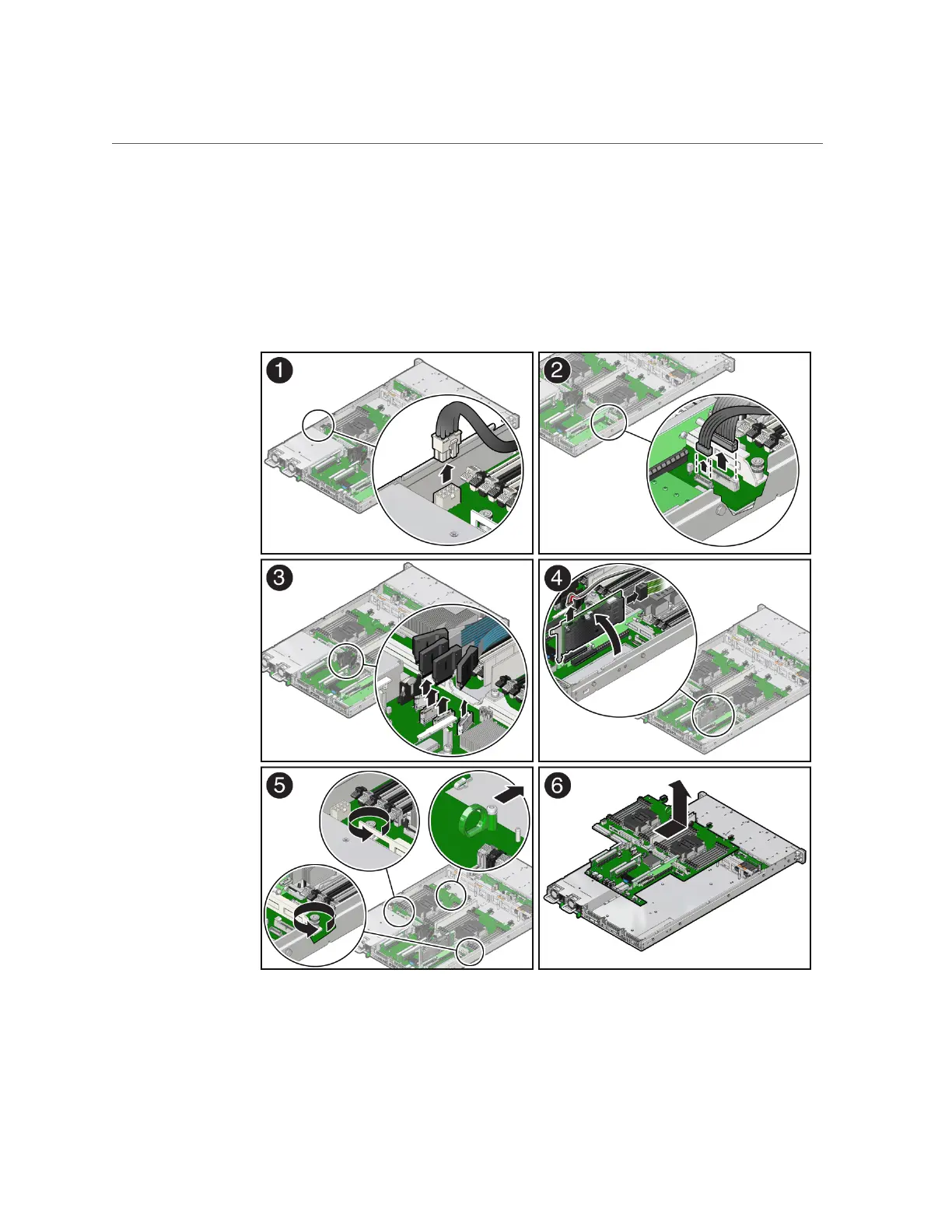

Disconnect the disk backplane power cable from the motherboard by
pressing in on the connector latch and then pulling out the cable connector
[1].
Servicing the Motherboard (FRU) 201
