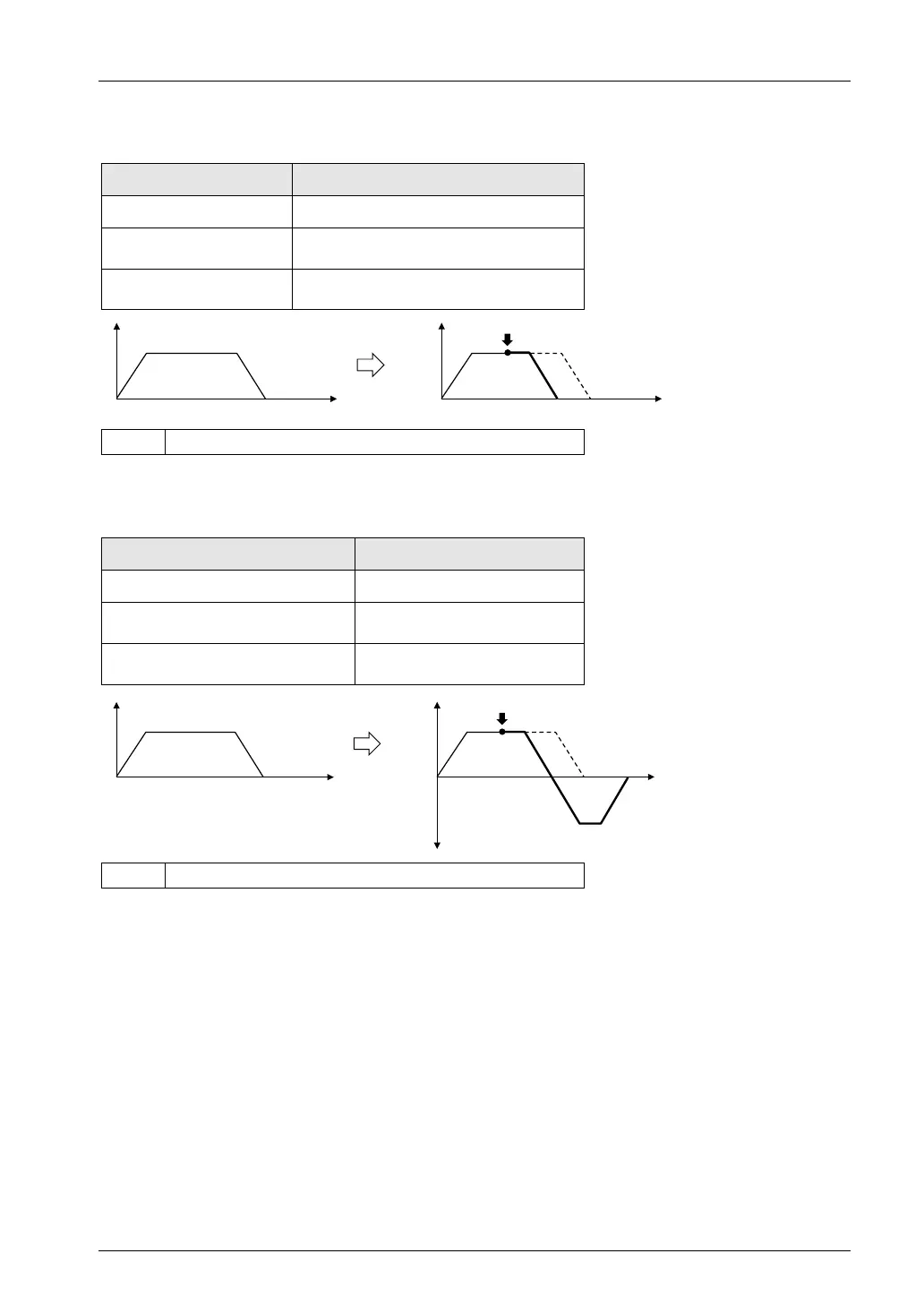

8.5 Movement Amount Change Function
8-37
 Example of operation (1) When reducing the movement amount (Change movement
amount > Current movement amount)
Parameter Setting value
Control method Increment
Positioning movement
amount (Before change)
10,000 pulses
Positioning movement
amount (After change)
7,000 pulses
10,000 pulses
f
t
f
t
7,000 pulses
A
A Movement amount change request on
 Example of operation (2) When reducing the movement amount (Change movement
amount < Current movement amount)
Parameter Setting value
Control method Increment
Positioning movement amount
(Before change)
10,000 pulses
Positioning movement amount
(After change)
1,000 pulses
10,000 pulses
F(+)
t
f
t
1,000 pulses
A
F(-)
A Movement amount change request on
