9.6 Electronic Cam Function
9-47

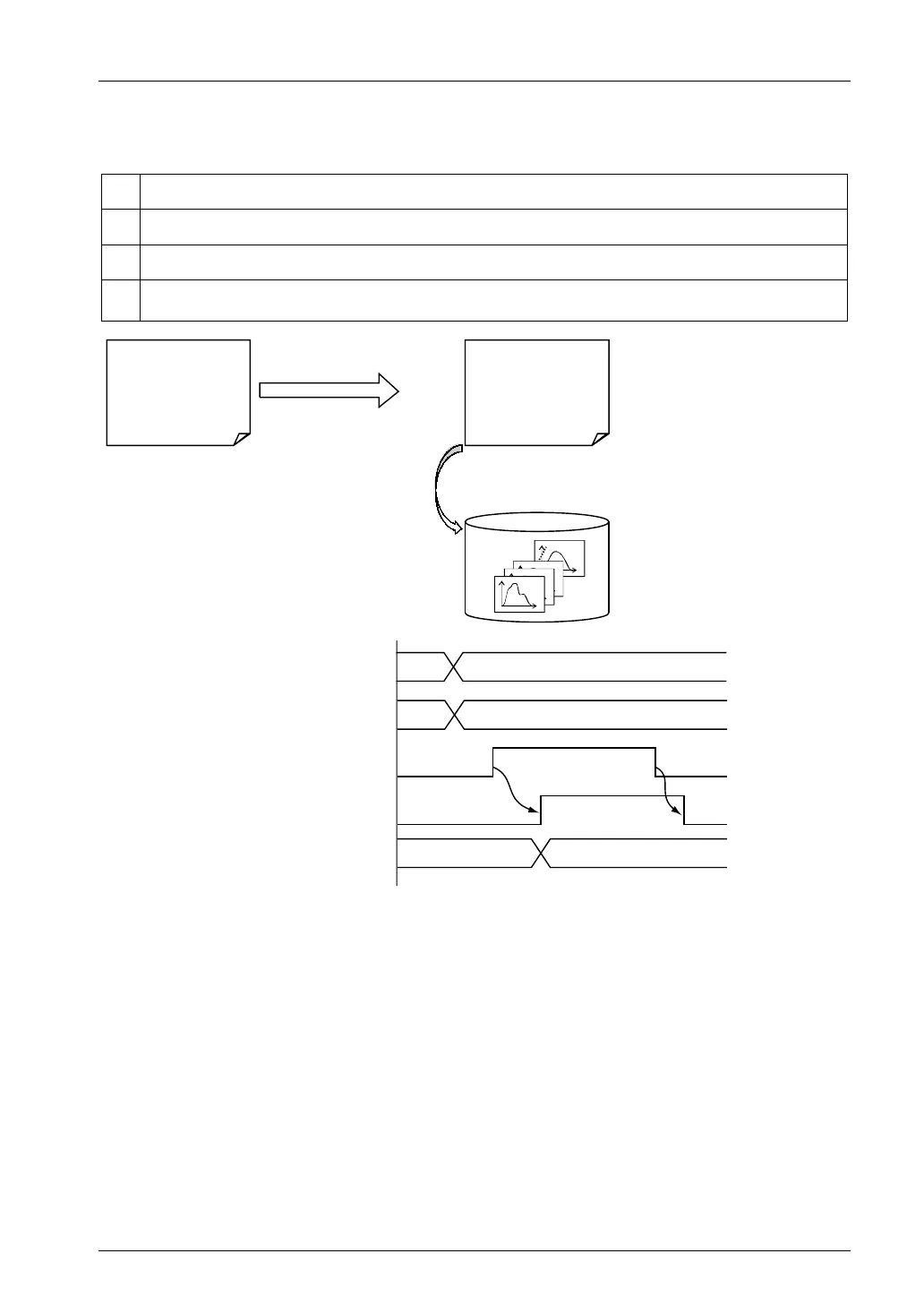

Rewriting cam patterns
The procedure of rewriting cam pattern data in the cam pattern setting area is as follows.
①
Write the setting of the cam pattern you want to rewrite into the cam pattern editing area.
②
Specify a cam pattern number you want to rewrite for the cam pattern number (UM66F40).
③
Turn on the cam table rewriting request (Y9).
④
Check if the cam pattern rewriting result is "0000H (Normal end)" when the cam table rewriting done
annunciation (X9) turns on.
N
o
.n
No.
3
No.2
No.1
UM66F40
UM66F97
Rewriting cam tables
(Y9)
User program
Internal cam pattern data
Cam pattern editing area
Cam pattern edit no.
Number of set sections
Start phase for sections 1 to n
Displacement
Cam curve no.
Changing parameters
Shift amount
ON
OFF
ON
OFF
0000H
1
(UM66F40)
XXX
(UM66F99)
XXXX H
XXX
XXX
(UM66F42-UM68F93)
Cam pattern data
Cam table rewriting request (Y9)
Cam table rewriting done annunciation (X9)
Cam pattern rewriting result
Cam pattern no.
