5-2 Menu Organisation
AC30 series Variable Speed Inverter
Menu Descriptions
Control Screen
In local sequencing mode the Control Screen menu shows the Local Setpoint, the Seed Feedback and configuration of the action of the Run key
and direction. When the inverter is not in local sequencing mode this menu shows the operating speed. The contents of the Control Screen can
be modified by the configuration.
Setup
Parameters that may require modification once the Setup Wizard is complete.
Monitor
This menu contains parameters commonly used to verify the correct operation of the inverter and the process.
Favourites
The Favourites menu contains up to 20 parameters selected for ease of access.
To Add a Parameter to the Favourites Menu
Using the GKP, navigate to the parameter of interest.
Press and hold the OK key until the Attributes screen is
shown, (hold for about 2s)
then this appears and press the “Add to Favourites”
soft key.
To Remove a Parameter From the Favourites Menu
Using the GKP navigate to the parameter of interest in the
Favourites menu.
Press and hold the OK key until the Attributes screen is
shown, (hold for about 2s).
Press the “Remove from Favourites” soft key, .

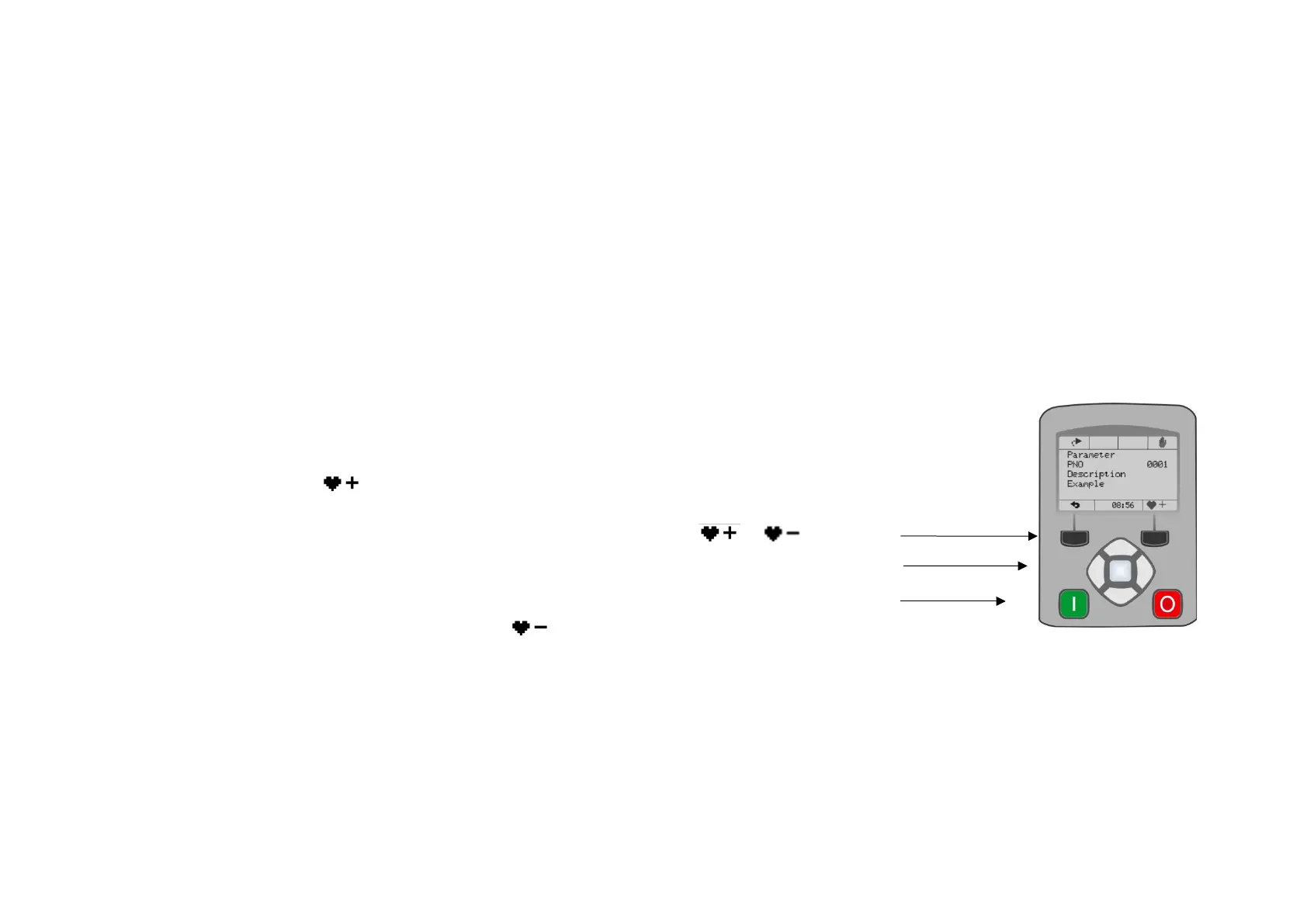

or is shown here
Press the soft key 2 to add to or
remove from Favourites
OK Key

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
