Parker AC30 series User Manual

4-6 The Graphical Keypad
AC30 series Variable Speed Inverter

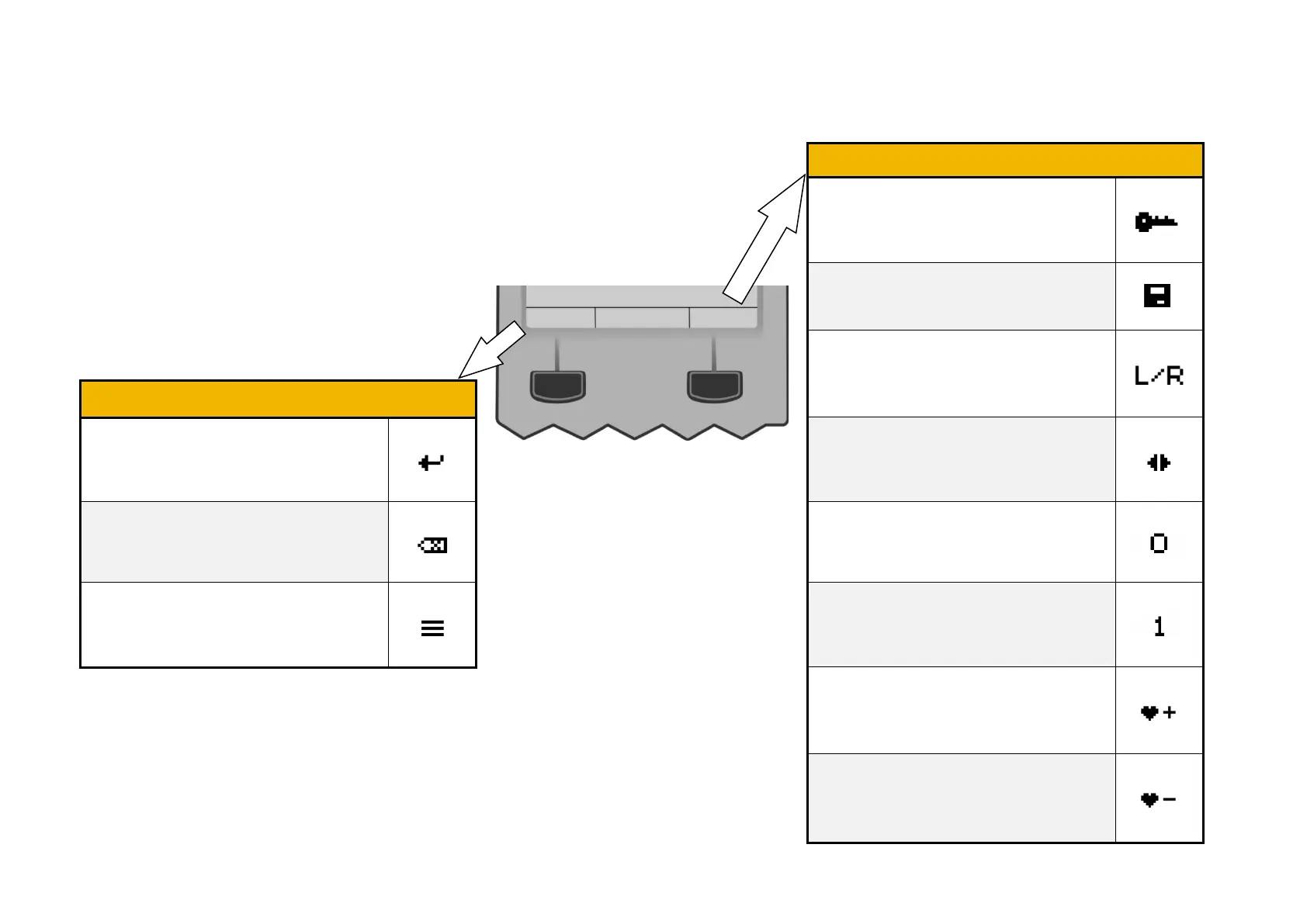

Bottom Line – Soft Key Action Indication
The bottom line of the display indicates the action of the Soft Key 1 and Soft Key 2 pushbuttons, as shown.
Soft Key 2
Lock parameters
Displayed: when on the GKP welcome page.
Soft key action: Resets GKP password entered,
‘locking’ all the parameters.
Save parameters
Displayed: when on the GKP welcome page.
Soft key action: Saves all parameters.
‘Local’/ ‘Remote’ control mode
Displayed: while navigating menus or parameters.
Soft Key 1
Soft key action: Toggles between ‘Local’ and
‘Remote’ control modes.
Return
Change direction
Displayed: when navigating through the menus. Displayed: while navigating menus or parameters.
Soft key action: Moves ‘back’ to the previous menu
level.
Soft key action: Toggles direction between ‘+ve’ and
‘-ve’ speed setpoint.
Abort Toggles parameter assigned to ‘Soft Key 2’
Displayed: when editing a parameter value. Displayed: while navigating menus or parameters.
Soft key action: Discards change to parameter
value.
Soft key action: Toggles between ‘0’ and ‘1’ control
modes. Present value ‘0’.
Setup Wizard
Toggles parameter assigned to ‘Soft Key 2’
Displayed: when on the GKP welcome page. Displayed: while navigating menus or parameters.
Soft key action: Enters into the setup wizard.
Soft key action: Toggles between ‘0’ and ‘1’ control
modes. Present value ‘1’.
Add to ‘Favourites’ menu
Displayed: while viewing parameter attributes.
Soft key action: Adds parameter to the ‘Favourites’
menu.
Remove from ‘Favourites’ menu
Displayed: while viewing parameter attributes.
Soft key action: Removes parameter from the
‘Favourites’ menu.

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
