Parker AC30 series User Manual

Setup Wizard 6-1
AC30 series Variable Speed Inverter
Chapter 6: Setup Wizard
GKP Setup Wizard
Purpose of the Setup Wizard
The purpose of the setup wizard is to configure the inverter in a clear and concise manner.
First familiarize yourself with Chapter 4 Graphical Keypad, for the keypad functions.
Starting the Setup Wizard
The Setup Wizard is automatically invoked when first powered up. The setup wizard may be
invoked at any other time by pressing the set-up key ( ). This is shown on the Welcome
Screen, (at the “top” of the MMI menu structure). The Setup Wizard is also invoked by
changing the parameter “Run Wizard?” to YES (you will find this under the “Parameters:
Device Manager: Setup Wizard" menu).
Running the Setup Wizard

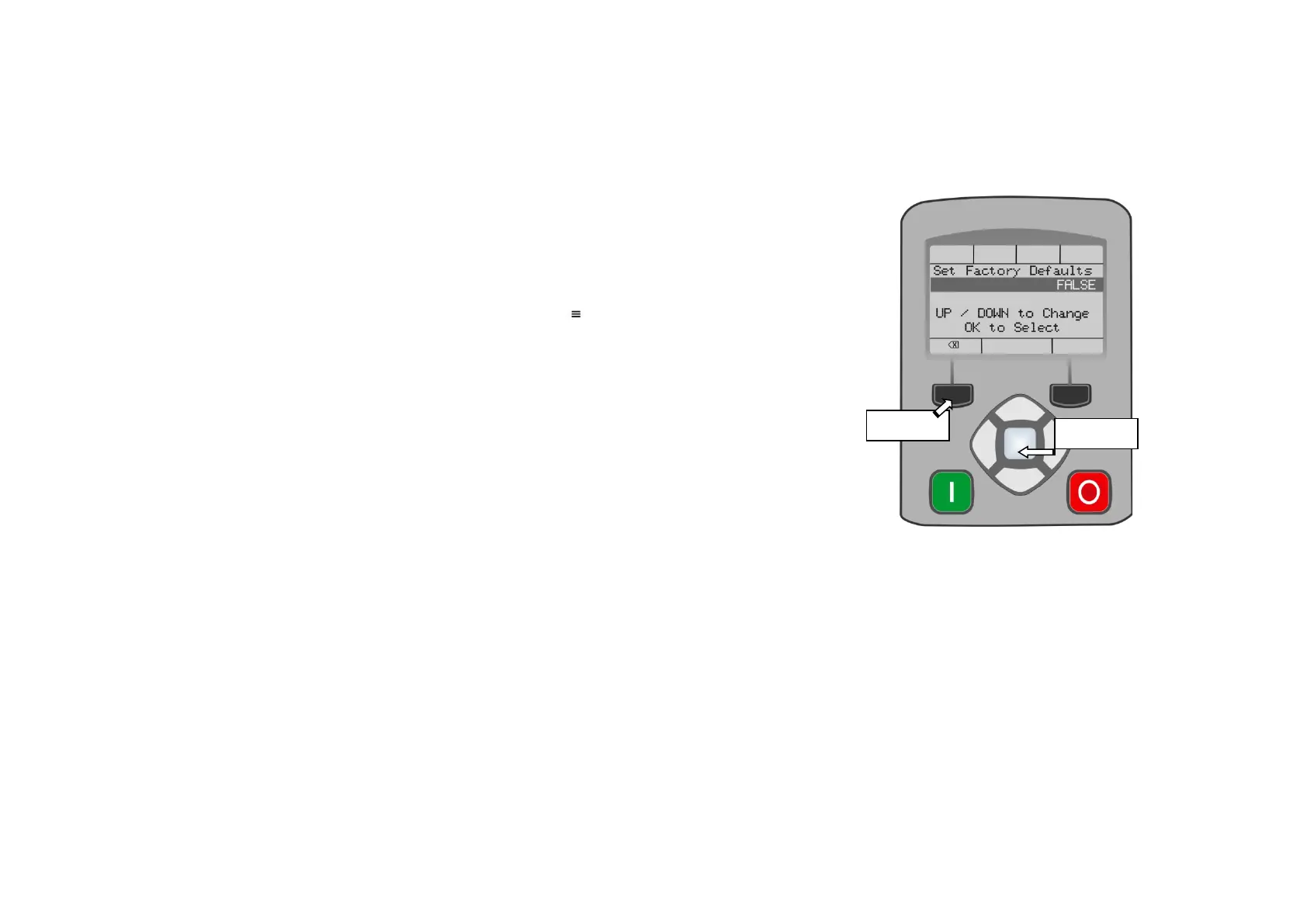

At each point in the wizard pressing the OK key selects the displayed value and moves on to
the next step.
Pressing Soft key 1 moves back a step. Pressing the UP and DOWN keys modifies the
selected value.
The default setting for all parameters depends on earlier answers and on the physical
configuration of the inverter so pressing OK repeatedly will result in no parameter values being
altered. All data entered is automatically saved without the need for any additional commands.
Information that you will need in order to set up the motor control
When you run the setup wizard you will be asked for various items of information in order to
set up the motor control.
OK key
Soft Key 1

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
