6-22 Setup Wizard
AC30 series Variable Speed Inverter
Motor Control Strategy

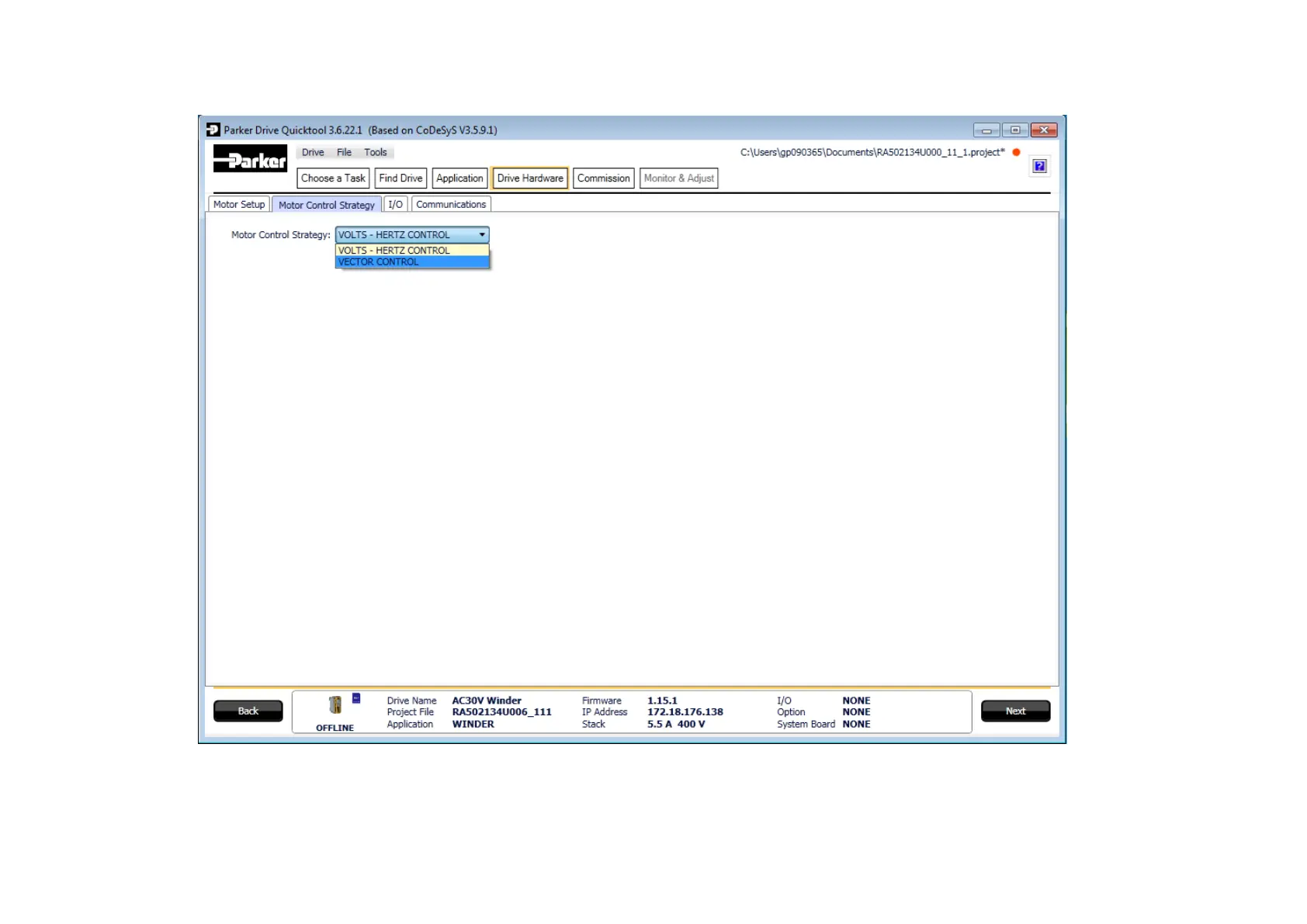

Figure 9-8 Motor Control Strategy
The “Motor Control Strategy” tab allows configuration of the Drive control. The figure above shows a simple V/Hz control strategy but when
Vector Control is selected additional parameters are shown for the user to select and configure.
