Parker AC30 series User Manual

The Graphical Keypad 4-3
AC30 series Variable Speed Inverter

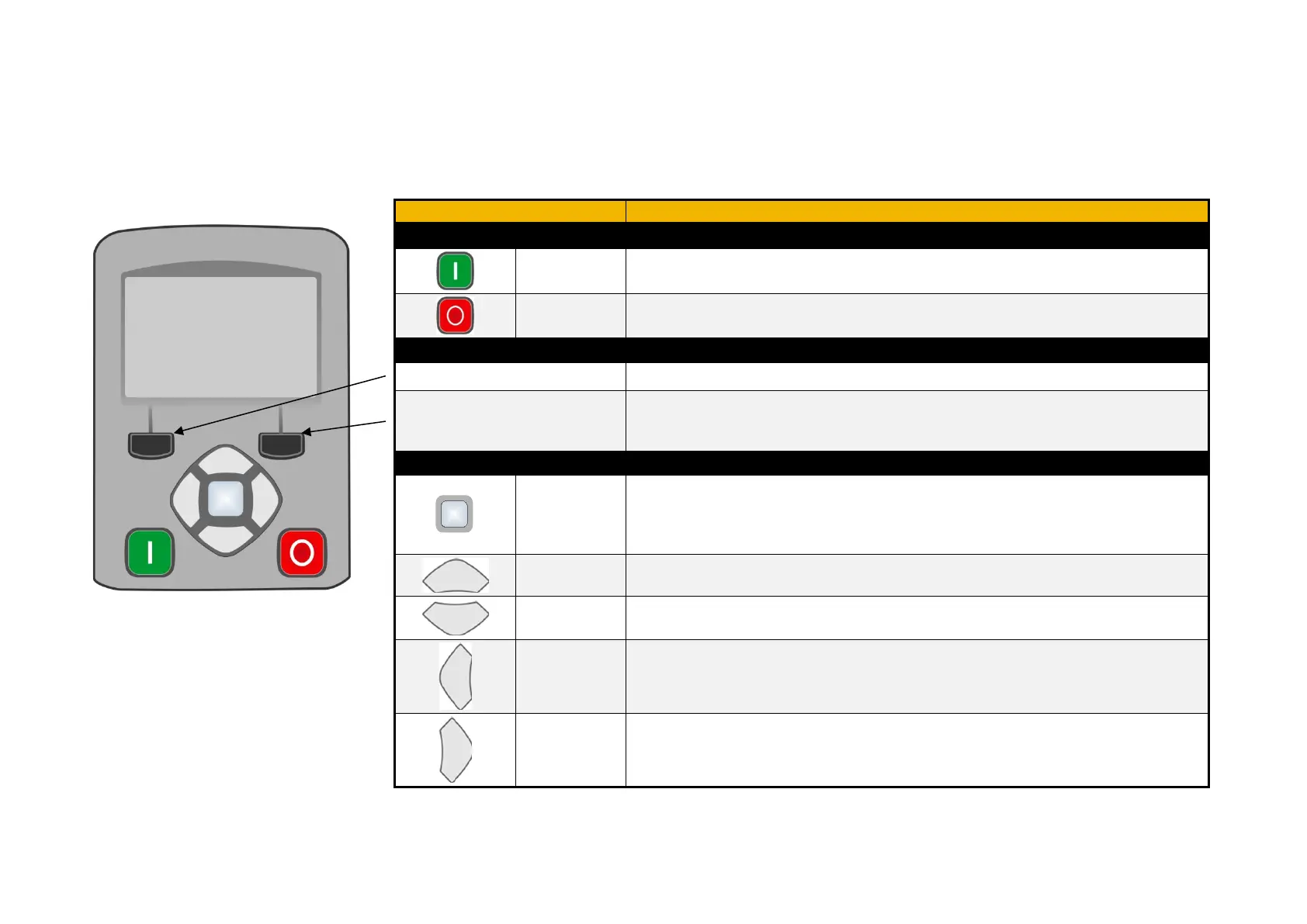

Keypad
The GKP has a total of nine keys. They can be divided into three groups:
1. Operation keys (LED illuminated pushbuttons)
2. Soft keys
3. Navigation / Editing keys
Key
Function
Operating Keys
(only active when
Local
control mode is active)
RUN
Runs the inverter.
STOP
Stops the inverter when running / Resets or Acknowledges trips.
Soft Keys (function changes depending on which screen is displayed)
Soft Key 1
Return / Abort / Setup Wizard shortcut
Soft Key 2
Locks password / Save changes / Toggles between ‘Local’ or ‘Remote’ control
mode / Changes motor rotation direction (‘Local’ control mode only) / Add or
Removes parameters to or from the ‘Favourites’ menu.
Navigation / Editing Keys
OK
Enters into the next menu level or parameter / Enters into parameter edit mode /
Accepts the value of the parameter being edited / Displays parameter information
(key press held >1s) / Selects parameter as default at power up (key press held
>2s)
UP
Moves ‘up’ through the parameters of the menu list / Increments the value of the
parameter being edited.
DOWN
Moves ‘down’ through the parameters of the menu list / Decrements the value of
the parameter being edited.
LEFT
Moves ‘back’ to the previous menu list / Selects the digit of the parameter being
edited.
RIGHT
Moves ‘into’ the next menu list or parameter / Selects the digit of the parameter
being edited.

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
