Settings : Remote Control
29 - 761

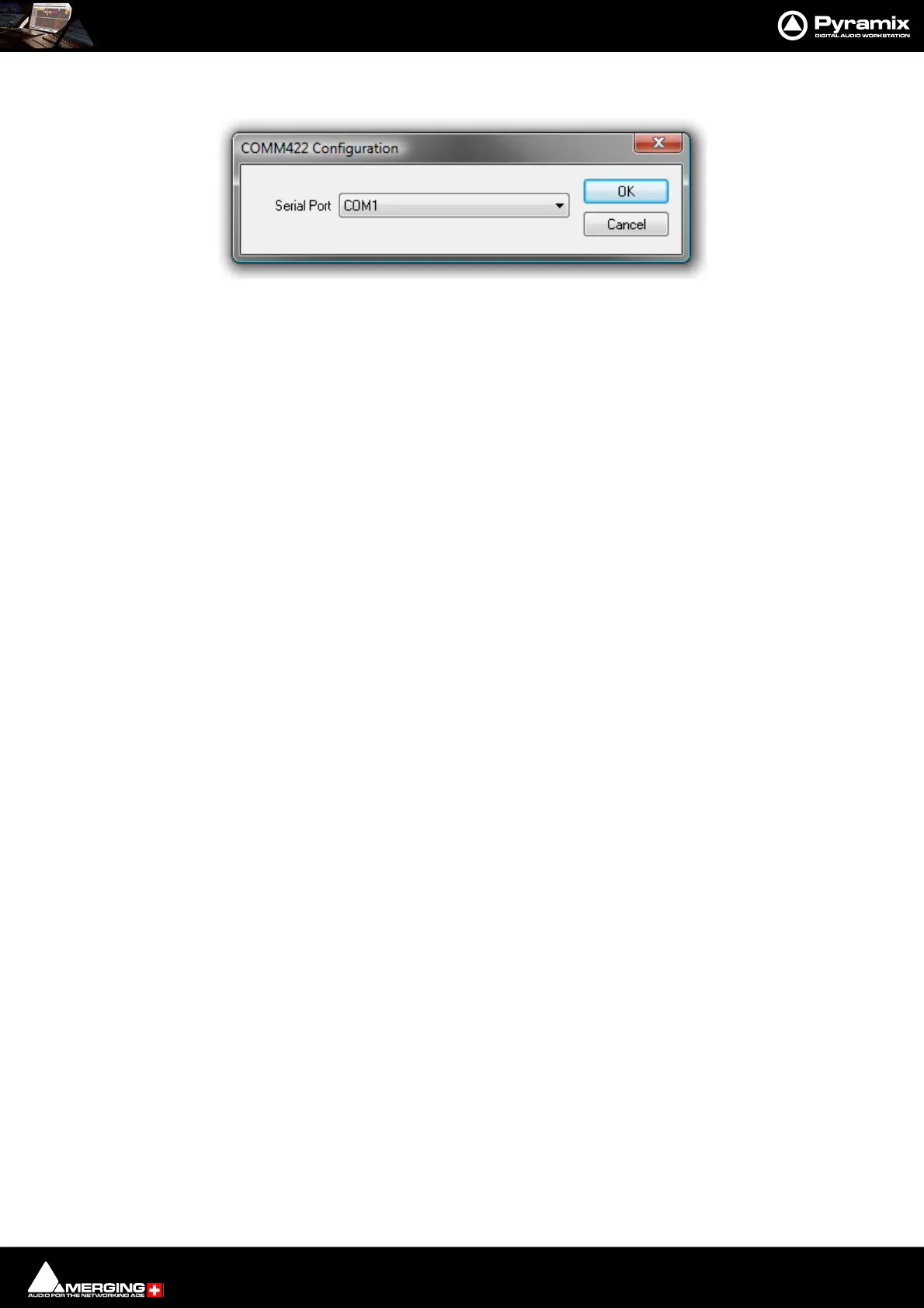

COMM422 Configuration:
Serial Port
Shows the current Serial Port selected from the drop-down list. If not already highlighted, select the desired serial
COM port. Standard choices are either COM1 or COM2.
Click OK to confirm the choice. This automatically sets the selected COM port with the proper parameters of the
Sony 9-pin communication protocol.
Monitoring options on Stop
After a Stop command the following command will be issued:
•Stop Only
• Stop + Full EE Off
• Stop + Full EE On
• Stop + Select EE On
Monitoring Options on Pause/Jog(0)
After a Pause/Jog command the following command will be issued:
• Pause/Jog(0) Only
• Pause/Jog(0) + Full EE Off
• Pause/Jog(0) + Full EE On
• Pause/Jog(0) + Select EE On
Monitoring options
Selecting:
• Apply Monitoring Options only when the Machine is Chasing (Slave)
ensures that the above options, Monitoring options on Stop and Monitoring options on Pause/Jog(0) are only
applied when the 9-pin external machine is chasing the Internal Machine (being synchronized, i.e. editing). When
the 9-pin external machine is Master (the Internal Machine is chasing it, typically for recording back to tape) then
the 9-pin external machine is in normal Input/Repro Auto mode.
TimeCode Request
•Auto
•LTC
•VITC
• Control Track
The radio buttons select the source of the TimeCode from the external machine. Sony machines usually respond
to all requests, so the Auto setting will probably be appropriate. If necessary E.g. where there are several different
TimeCodes present on a tape, you can specify a desired TimeCode source to override the automatic setting. U-
Matic machines do not respond to all requests, therefore you must specify the TimeCode source.
COMM422 Configuration dialog
