automatically, and a message box informs you about the process. When the recon-
figuration has finished, the instrument again reboots automatically.
Note: Do not switch off the instrument during the reconfiguration process!
Now the firmware update is complete.
7.4.5 General configuration settings
Access: [Setup] > "System Configuration" > "Config"
General system settings, for example concerning the initial behaviour of the R&S ZNL/
ZNLE after booting, can also be configured.
Preset Mode................................................................................................................133
Out-of-range value behavior....................................................................................... 133
Preset Mode

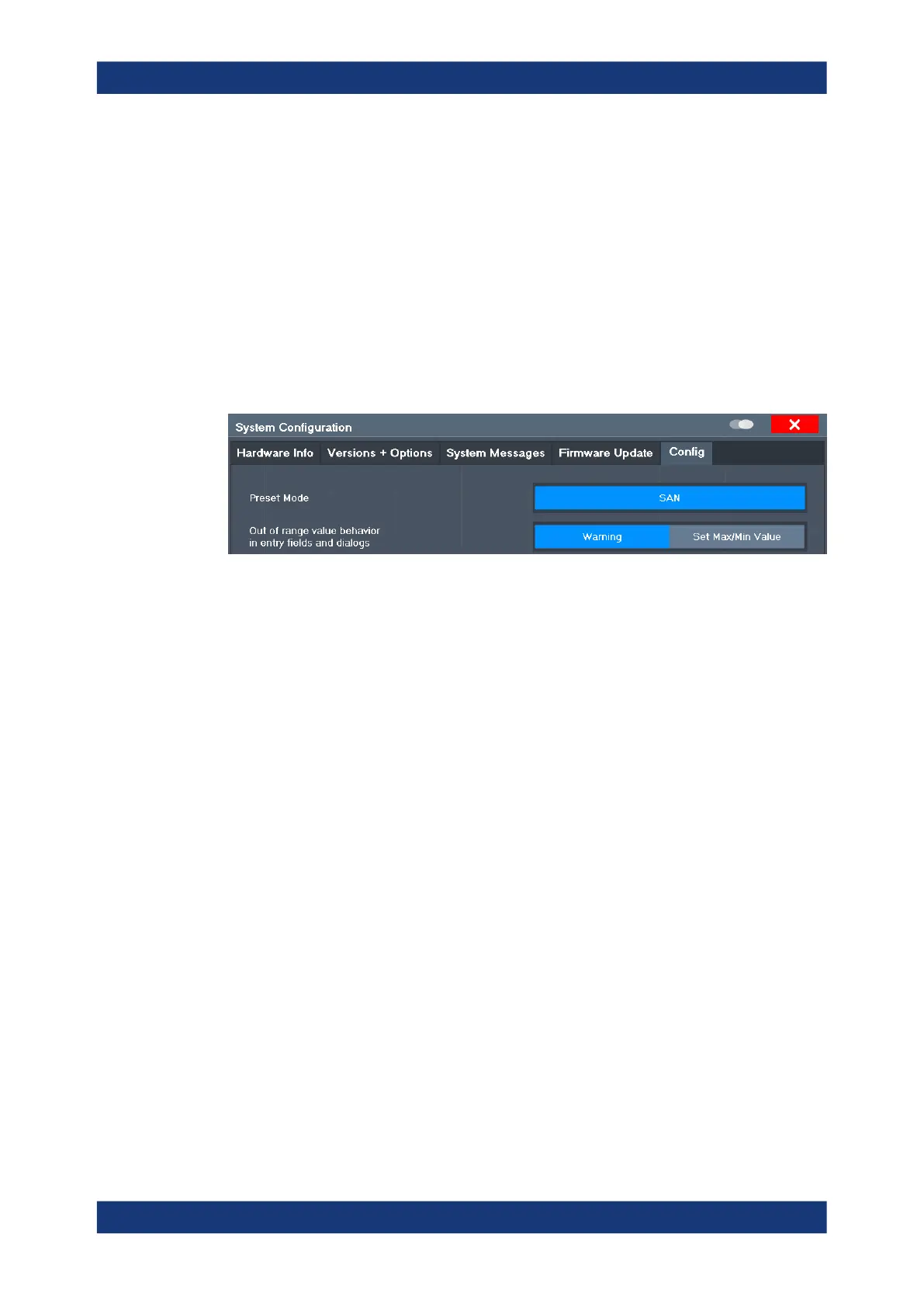

The presettings can be defined in the "Config" tab of the "System Configuration" dialog
box.
For details on operating modes see Chapter 5, "Operating modes, applications, chan-
nel setups, and result displays", on page 84.
"SAN"
Signal and Spectrum Analyzer mode
(Only when the optional Spectrum application has been installed.)
"VNA"
Vector Network Analysis
Remote command:
SYSTem:PRESet:COMPatible on page 621
Out-of-range value behavior
By default, if you enter a value that is outside the valid range in an input field for a set-
ting, a warning is displayed and the value is not accepted. Alternatively, entries below
the minimum value can automatically be set to the minimum possible entry, and entries
above the maximum value set to the maximum possible entry. This behavior avoids
errors and facilitates setting correct values.
7.4.6 Additional interfaces
The following settings are only available if the "Additional interfaces" option R&S FPL1-
B5 is installed.
