General instrument setup
R&S
®
ZNL/ZNLE
134User Manual 1178.5966.02 ─ 20
These options are not available for the R&S ZNLE.

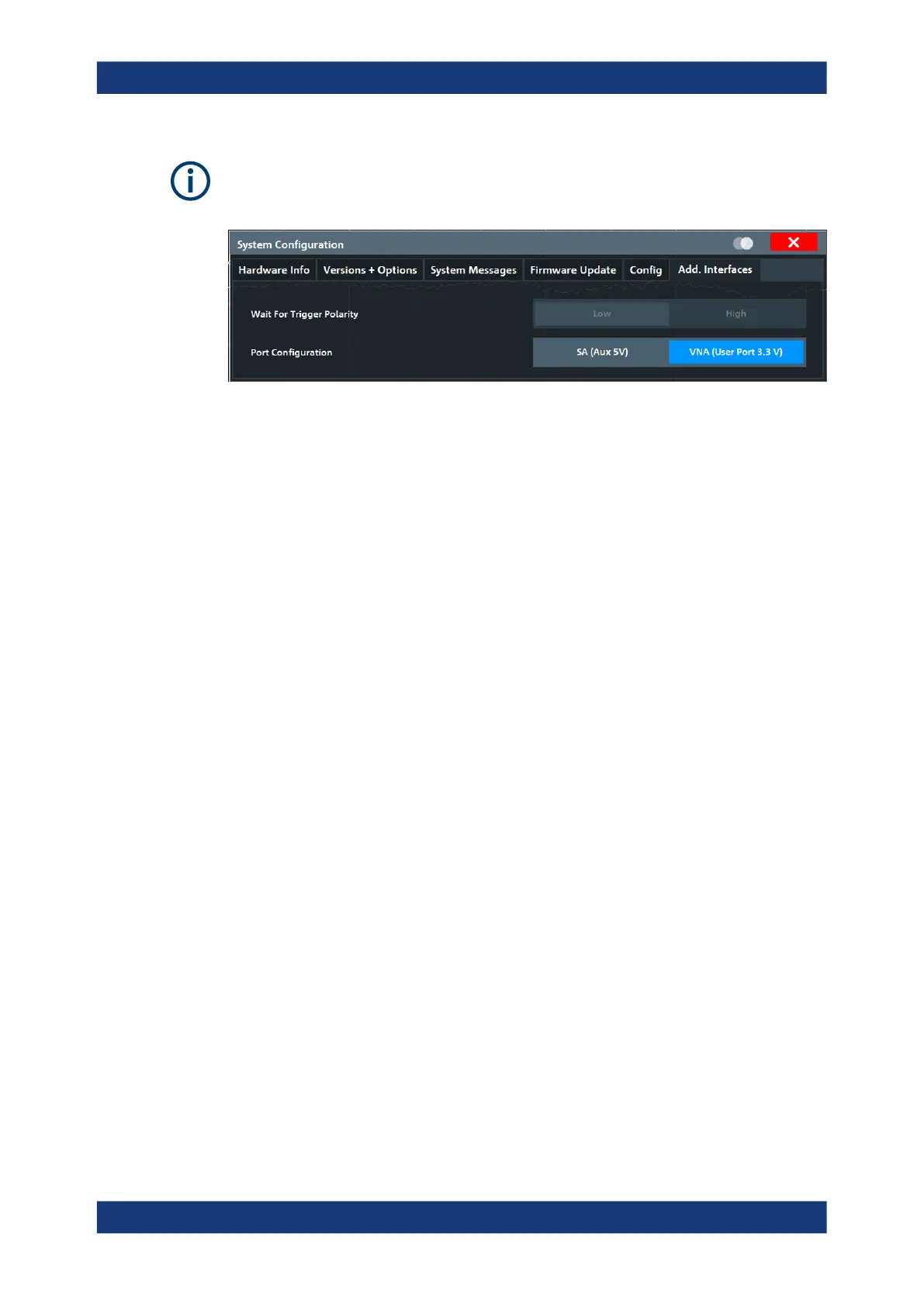

Wait for Trigger Polarity
In Spectrum operating mode, the optional AUX PORT connector of the R&S ZNL can
provide a signal that indicates the instrument is ready to receive a trigger signal.
(For details on the connector see the R&S ZNL Getting Started manual).
The signal polarity that indicates the trigger availability is configurable.
"Low"
A low signal (= 0 V) indicates the instrument is ready to receive a trig-
ger.
"High"
A high signal (= 5 V) indicates the instrument is ready to receive a
trigger.
Port Configuration
The Additional Interfaces provided by option R&S FPL1-B5 can either be used by SA
channel setups (SA mode) or by VNA channel setups (VNA mode, default).
"SA (Aux 5 V)"
The Additional Interfaces can only be used by SA channel setups. In
particular the Aux. Port is configured as SA Auxiliary Port (5 V).
In this mode, VNA channel setups can not use the VNA User Port
functionality (trigger, channel bits, TTL signals, ...).
"VNA (User
Port 3.3 V)"
VNA channel setups can use the Aux. Port as VNA User Port (3.3 V).
For details on the connector see Chapter 14.2.1.1, "Aux. Port",
on page 1110.
In this mode, SA channel setups can't use any of the Additional Inter-
faces.
Remote command:
n.a.
7.5 Service functions
Access: [Setup] > "Service"
When unexpected problems arise with the R&S ZNL/ZNLE some service functions
may help you solve them.
Service functions
