VNA GUI reference

R&S

ZNL/ZNLE

452User Manual 1178.5966.02 ─ 20

Remote command:

CALCulate<Chn>:MARKer<Mk>:REFerence[:STATe]

CALCulate<Chn>:MARKer<Mk>:REFerence:Y

Add Marker

Adds a new marker to the active trace. Uses the next "free" marker number

Coupled Markers

Activates or deactivates Marker coupling. The label indicates the selected Coupling

Type:

"Coupling Type" Label

"All" "Coupled Markers"

"Channel" "Coupled Markers in <name of active channel>"

"Diagram" "Coupled Markers in <name of active diagram>"

Coupling also works if Tracking is enabled for Marker <m> in one trace. The Marker

<m> of the other traces then follow the movements of the tracked marker. The same

holds true for the reference marker.

Remote command:

CALCulate:MARKer:COUPled[:STATe]

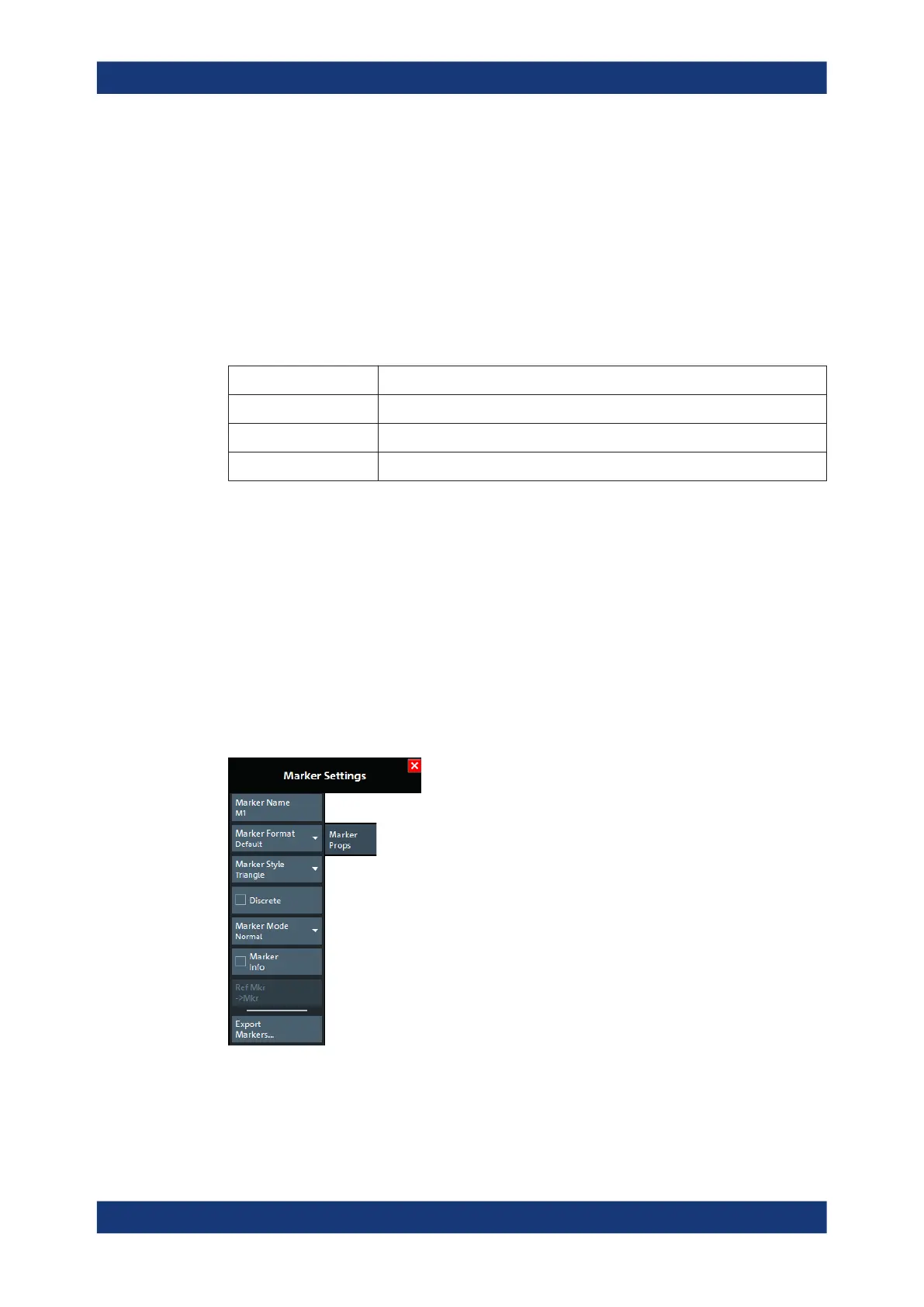

10.10.2 Marker Props tab

Modifies the properties of a marker created previously (see Chapter 10.10.1, "Markers

tab", on page 449). The functions (except "Export Markers...") are unavailable if the

active trace contains no markers.

Marker Name

Assigns a (new) name to the active marker. Marker names can contain letters, num-

bers, blanks and special characters.

Marker Settings softtool
