10.9.1 Diagram tab
Selects a diagram as the active diagram, defines a title, deletes or adds diagrams and
arranges them on the screen. Many of the functions are unavailable if the active chan-
nel setup contains only one diagram.
Active Diagram
Selects the active diagram.
Each channel setup screen can display several diagrams simultaneously, each with a
variable number of traces. One of these diagrams and traces is active at each time.
The diagram number (or name) in the upper right corner of the active diagram is high-
lighted. At the same time, the active trace is highlighted in the trace list on top of the

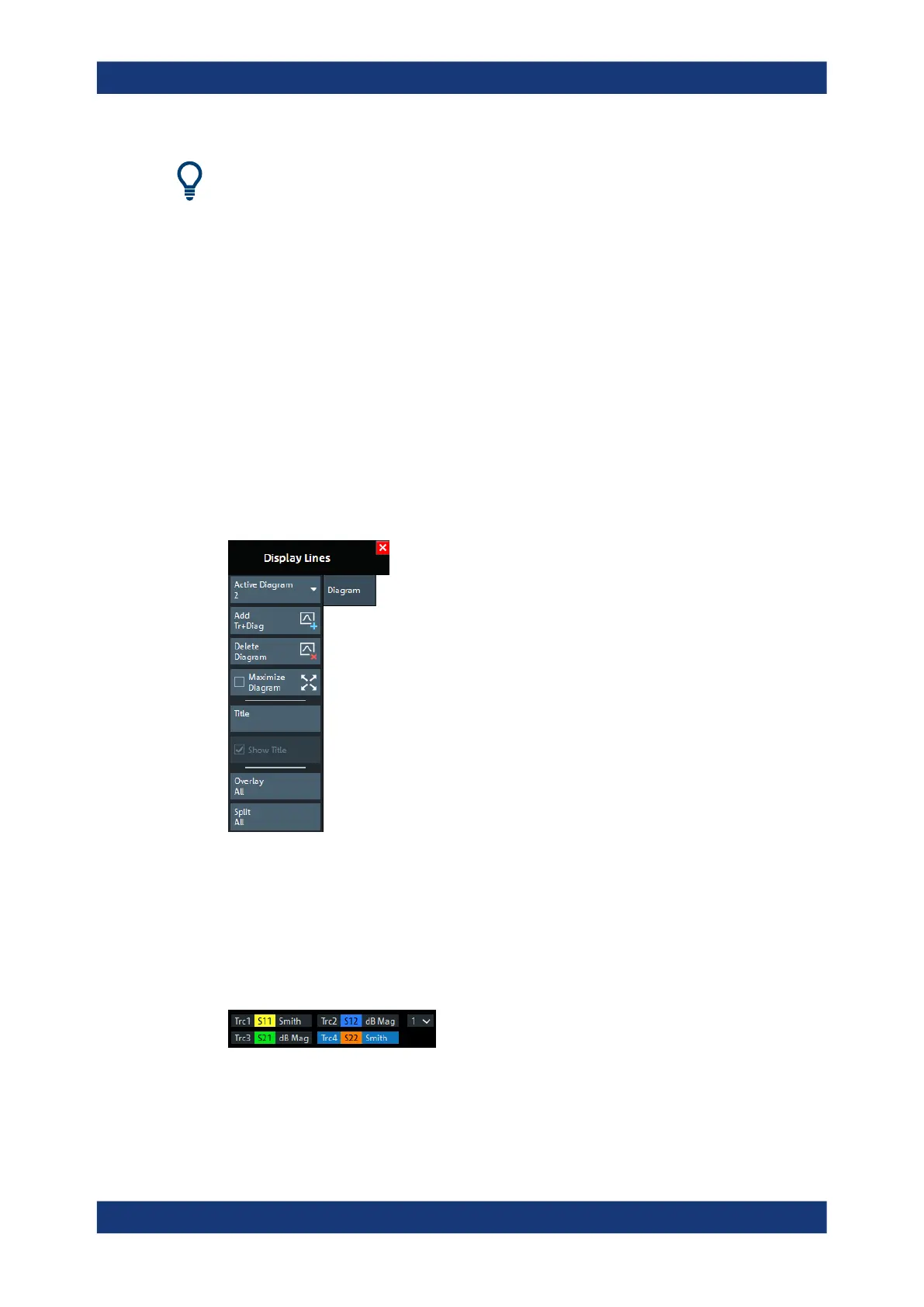

active diagram (Trc3 in the figure below):
The analyzer provides several tools for activating diagrams:
●
tap on a point in the diagram to activate the diagram including the last active trace
in the diagram.
●
tap on a trace list to activate the trace including the corresponding diagram.
Display Lines softtool
