R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
402User Manual 1178.5966.02 ─ 20
●
The default value for the common mode is Z
0c
= 25 Ω = Z
0
/2.
Remote command:
[SENSe<Ch>:]PORT<PhyPt>:ZREFerence
[SENSe<Ch>:]LPORt<LogPt>:ZCOMmon
[SENSe<Ch>:]LPORt<LogPt>:ZDIFferent
Connector
Allows you to specify the connector type of the related physical port.
Remote command:
[SENSe<Ch>:]CORRection:COLLect:CONNection<PhyPt>
Use Default
Allows you to toggle between default and renormalized port impedance (or impedan-
ces) for the selected logical port and connector type.
Remote command:
[SENSe<Ch>:]LPORt<LogPt>:ZDEFault[:STATe]
Renormalization According to Theory of
Selects the waveguide circuit theory for renormalization. The conversion formulas of
these theories only differ if the reference impedance of at least one test port has a non-
zero imaginary part.
Refer to Chapter 9.3.2, "Reference impedances", on page 217.
Remote command:
CALCulate<Chn>:TRANsform:IMPedance:RNORmal
10.7.2 Ratios tab
Selects ratios of wave quantities as measured quantities.
Background information
Refer to Chapter 9.3.5, "Wave quantities and ratios", on page 223.
10.7.2.1 Controls on the Ratios tab

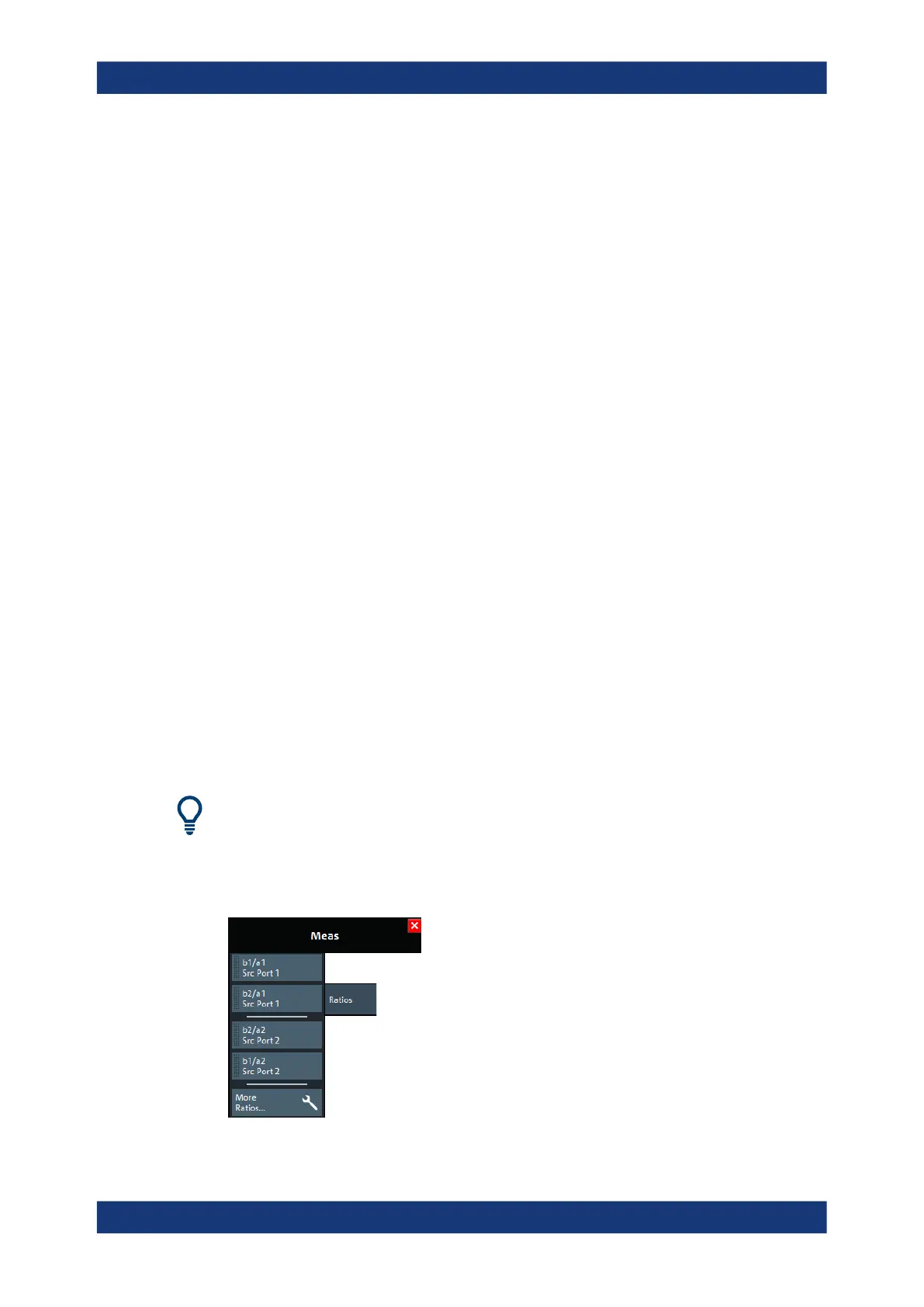

Meas softtool
