10.14.5 Port Sets tab
Selects transformation networks for deembedding/embedding arbitrary port sets,
defines their parameters, assigns them to a port set and enables embedding.
Use the complementary dock widget to create the required port sets and to activate or
deactivate dembedding/embedding for selected port sets (see Chapter 10.14.1.4, "Port
Sets panel", on page 536).
Background information
Refer to Chapter 9.6.2.5, "Port pair de-/embedding", on page 288 and Chapter 9.6.2.6,
"Port set de-/embedding", on page 288.
If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"
on page 527), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 543.
Type
Switches between "Deembedding" and "Embedding" network definition.

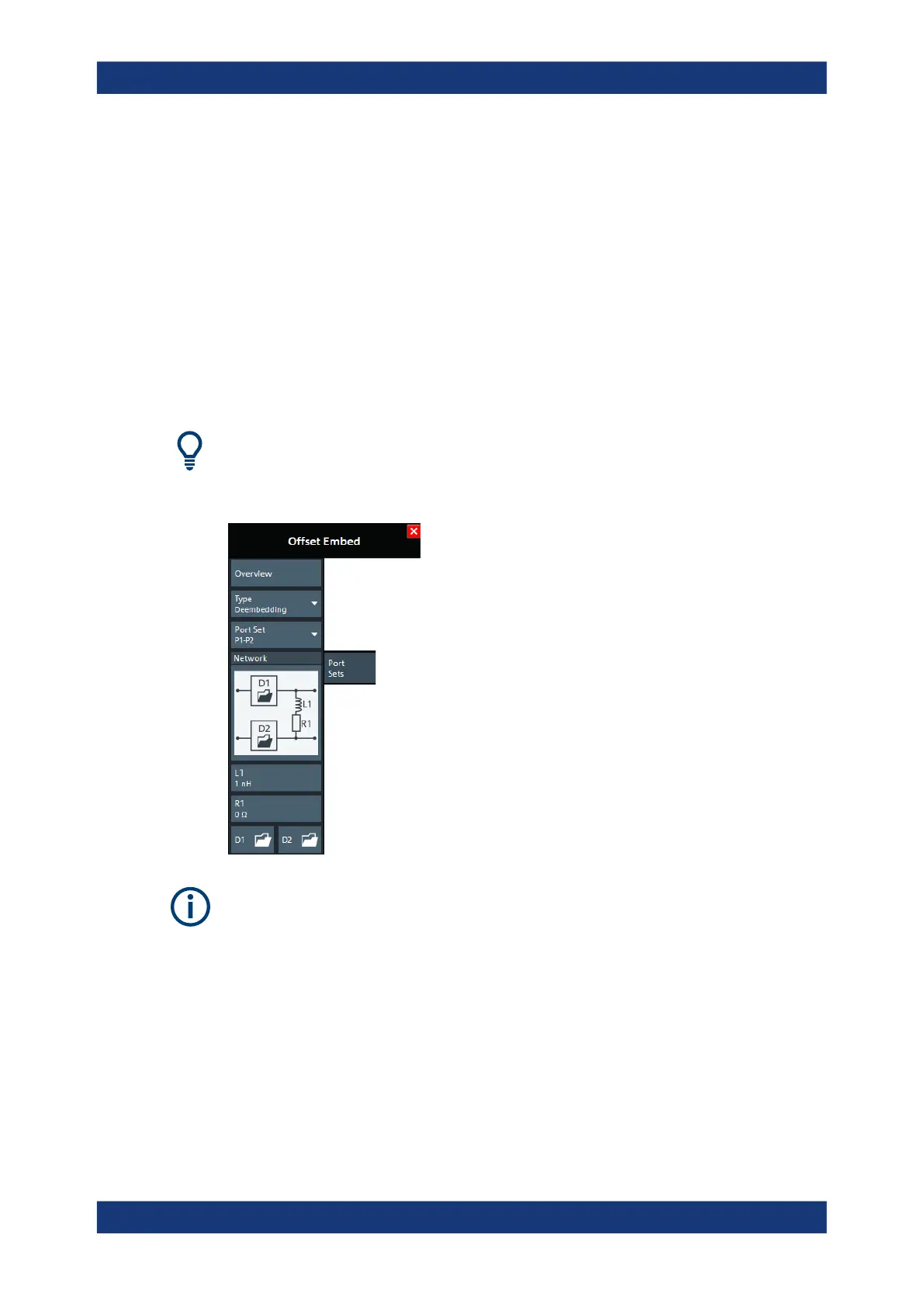

Offset Embed softtool
