The file name consists of the unique device ID and the current date and time of the file
creation.
If you contact the Rohde & Schwarz support to get help for a certain problem, send
these files to the support in order to identify and solve the problem faster.
Remote command:
DIAGnostic:SERVice:SINFo? on page 622
Save Device Footprint
Creates an *.xml file with information on installed hardware, software, image and
FPGA versions. The *.xml file is stored under
C:\Program Files\Rohde-Schwarz\Vector Network Analyzer\ZNL\
devicedata\xml\ on the instrument. It is also included in the service ZIP file (see "
Create R&S Support Information " on page 135).
7.5.2 Self-test settings and results

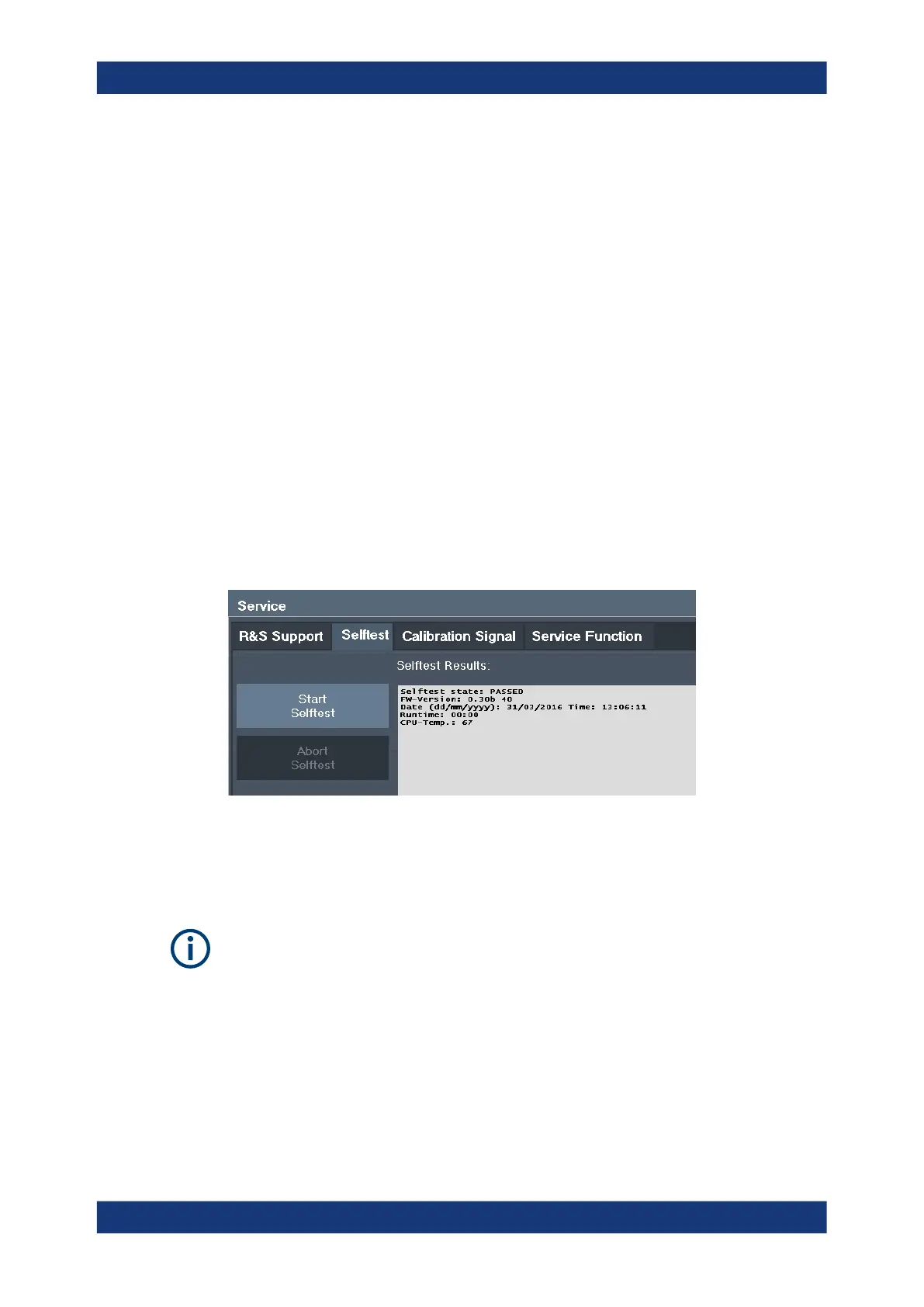

Access: [Setup] > "Service" > "Selftest"
If the R&S ZNL/ZNLE fails you can perform a self-test of the instrument to identify any
defective modules.
Once the self-test is started, all modules are checked consecutively and the test result
is displayed. You can abort a running test.
In case of failure a short description of the failed test, the defective module, the associ-
ated value range and the corresponding test results are indicated.
A running Sequencer process is aborted when you start a self-test.
If you start a self-test remotely, then select the "Local" softkey while the test is still run-
ning, the instrument only returns to the manual operation state after the test is comple-
ted. In this case, the self-test cannot be aborted.
Remote command:
*TST? on page 566
DIAGnostic:SERVice:STESt:RESult? on page 607
