4.2 Instrument tour

4.2.1 Front panel view

This chapter describes the front panel, including all function keys and connectors.

6 7

8 9

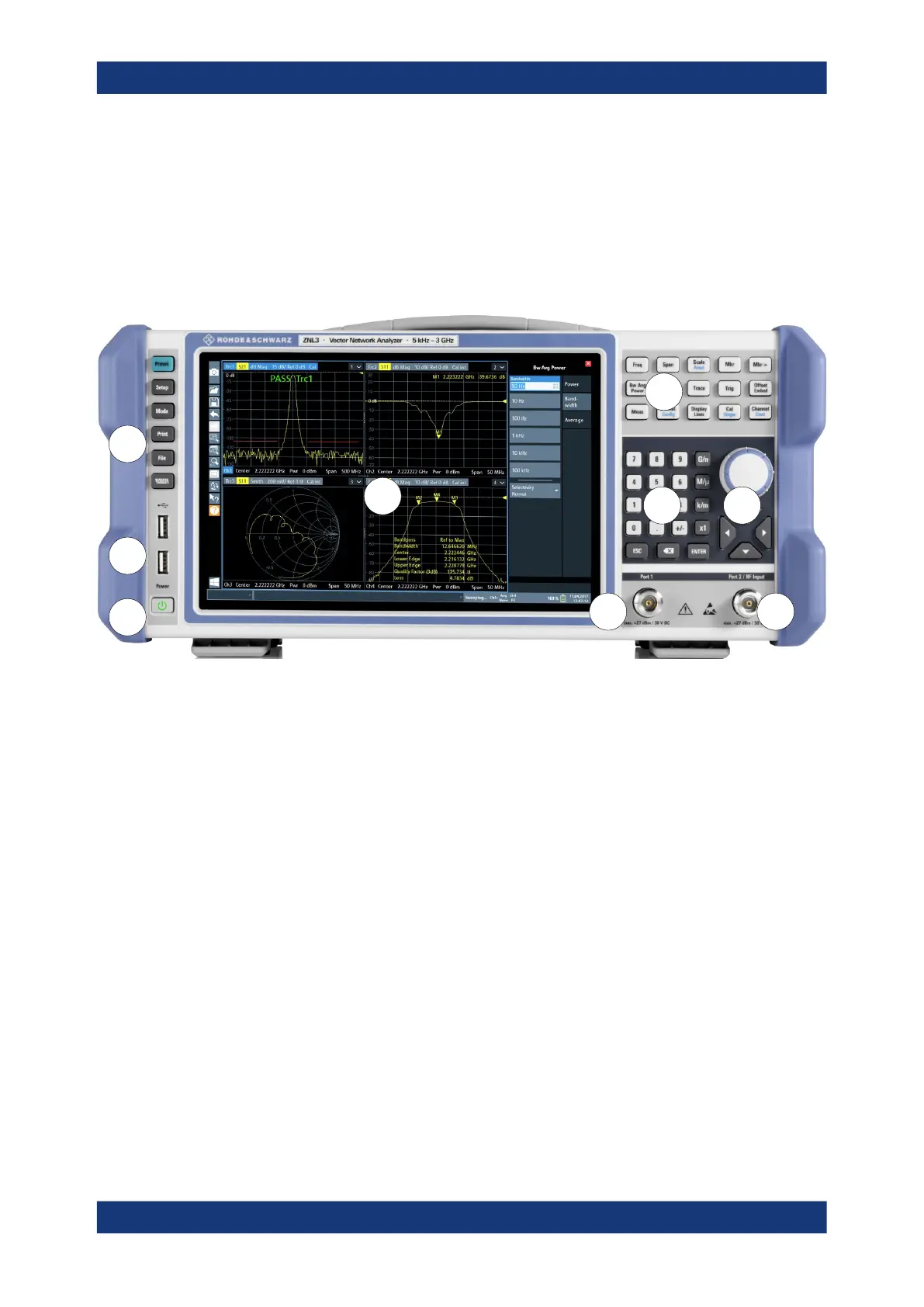

Figure 4-1: Front panel view

1 = Power key

2 = USB (2.0) connectors

3 = System keys

4 = Touchscreen

5 = Function keys

6 = Keypad

7 = Navigation controls

8 = Port 1

9 = Port 2 / RF input 50 Ω connector

4.2.1.1 Touchscreen

All measurement results are displayed on the screen on the front panel. Additionally,

the screen display provides status and setting information and allows you to switch

between various measurement tasks. The screen is touch-sensitive, offering an alter-

native means of user interaction for quick and easy handling of the instrument.
