Getting Started
R&S
®
ZNL/ZNLE
39User Manual 1178.5966.02 ─ 20
21
3
4
8
6 7
5

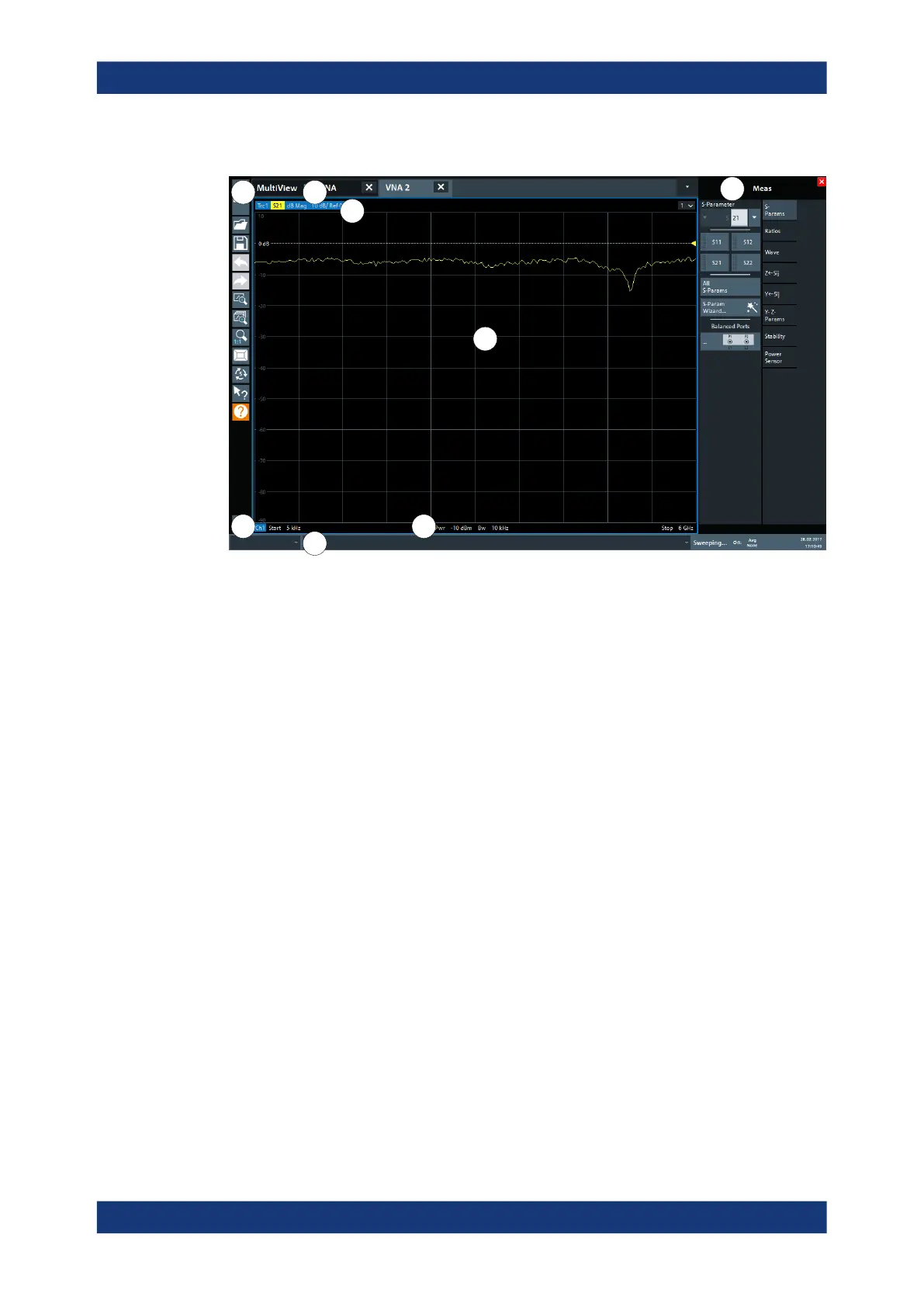

Figure 4-2: Touchscreen elements
1 = Toolbar with standard application functions, e.g. print, save/open file etc.
2 = Tabs for individual channel setups
3 = Softtool panel (a.k.a. softkey bar)
4 = Window title bar with diagram-specific (trace) information
5 = Measurement results (diagram) area
6 = Channel list
7 = Diagram footer with diagram-specific information
8 = Instrument status bar for error messages and date/time display
Any user interface elements that react to a click by a mouse pointer also react to a tap
on the screen, and vice versa. Using touchscreen gestures, you can perform the fol-
lowing tasks (among others).
(See Chapter 4.3, "Trying out the instrument", on page 51)
Changing a setting
Changing the display
Changing the displayed result range in a diagram
Moving a marker
Zooming into a diagram
Selecting a new evaluation method
Scrolling through a result list or table
Saving or printing results and settings
To imitate a right-click by mouse using the touchscreen, for example to open a context-
sensitive menu for a specific item, press the screen for about 1 second.
