VNA GUI reference
R&S
®
ZNL/ZNLE
548User Manual 1178.5966.02 ─ 20
[SENSe<Ch>:]CORRection:COLLect:FIXTure:EXPort
[SENSe<Ch>:]CORRection:COLLect:FIXTure:IMPort
10.14.3 One Way Loss tab
Defines loss parameters for each physical port.
Use the complementary dock widget to activate or deactivate length/loss compensation
for selected ports (see Chapter 10.14.1.2, "Offset panel", on page 533).
Background information
Refer to the following sections.
Chapter 9.6, "Offset parameters and de-/embedding", on page 277
Chapter 9.6.1.2, "Definition of loss parameters", on page 278
Chapter 9.6.1.4, "Auto Length and Loss", on page 280
Chapter 9.6.1.5, "Fixture Compensation", on page 281
Overview
See "Overview" on page 543.
Port
Physical test port of the analyzer. You can define independent loss parameters for all
ports.
Remote command:
The <PhyPt> numeric suffix in the [SENSe<Ch>:]CORRection:... commands
identifies the physical port.
Loss at DC / Loss at 1st Freq / 1st Freq for Loss
See "Loss at DC / Loss at 1st Freq / 1st Freq for Loss / Use 2nd Freq / Loss at 2nd
Freq / 2nd Freq for Loss" on page 534.

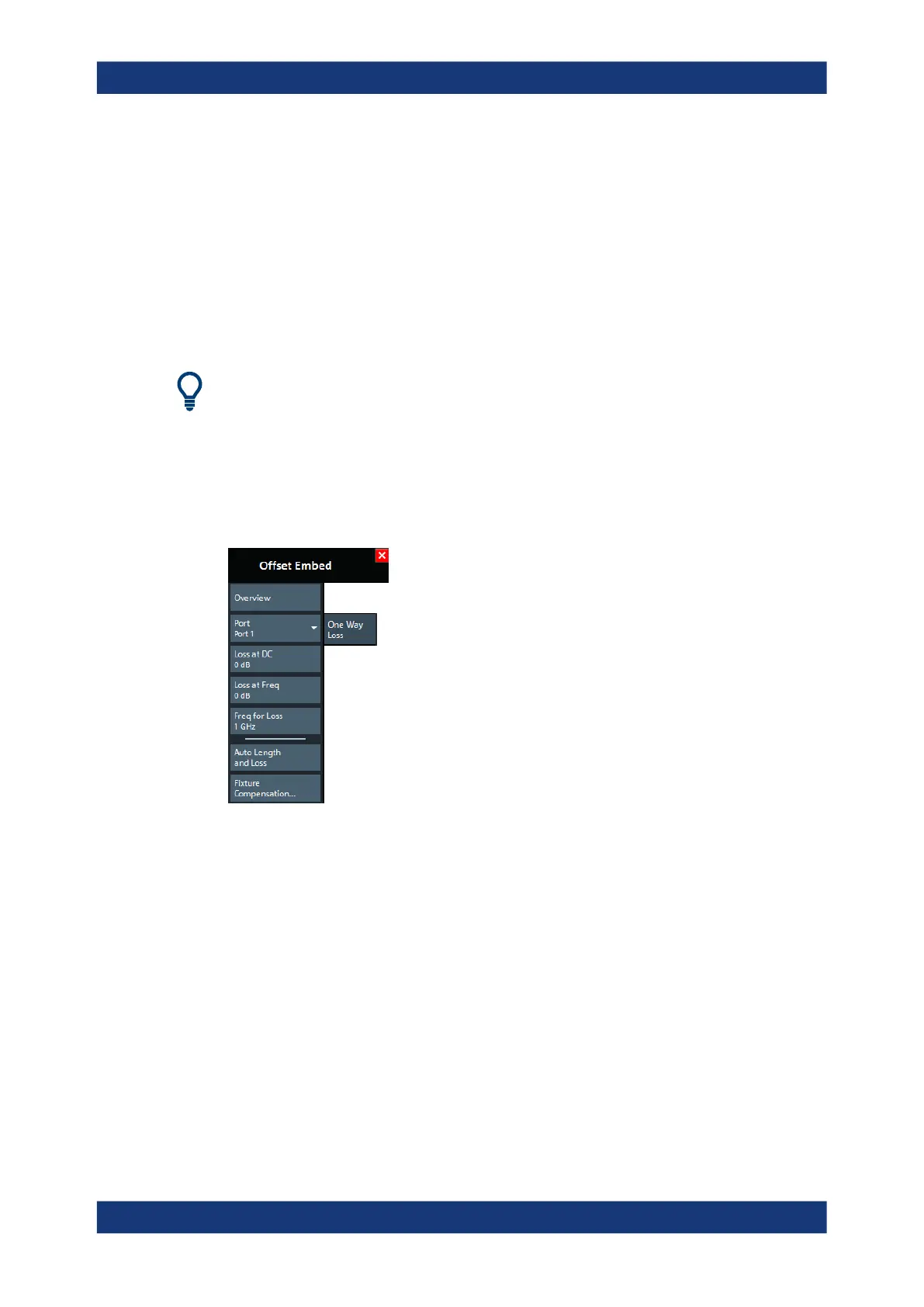

Offset Embed softtool
