Evaluation Range

Selects a predefined evaluation range. Up to 10 different ranges are available for each

channel setup. "Full Span" means that the search range is equal to the entire sweep

range. The trace statistics functions consider all measurement points with stimulus val-

ues x

between the "Start" and "Stop" value of the evaluation range:

"Start" ≦ x

≦ "Stop"

The evaluation ranges are defined similar to the marker search ranges. For more infor-

mation, see Chapter 10.11.1.2, "Search Range dialog", on page 461.

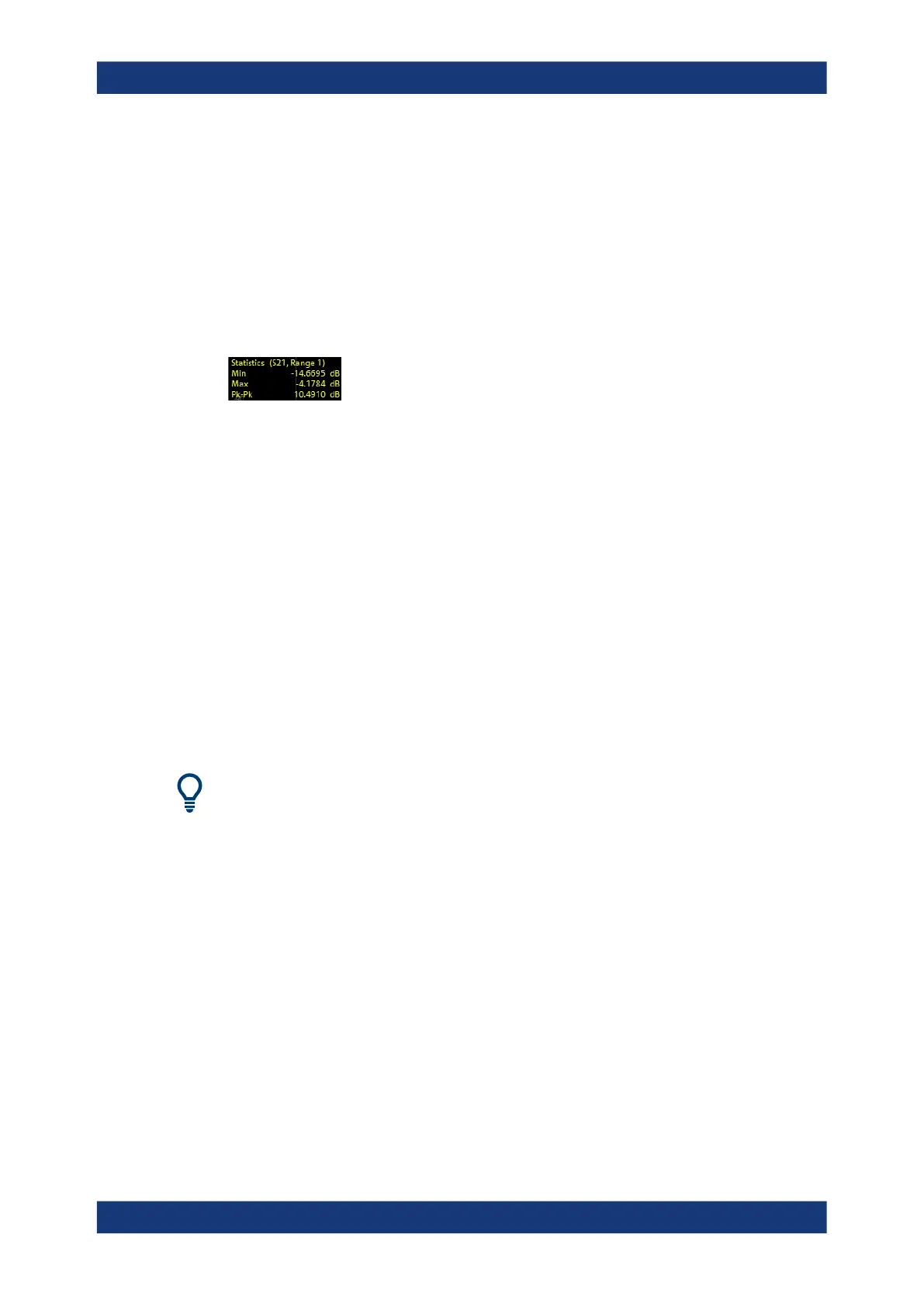

Note: A restricted evaluation range is indicated in the "Trace Statistics" info field.

Remote command:

CALCulate<Chn>:STATistics:DOMain:USER

CALCulate<Chn>:STATistics:DOMain:USER:STARt

CALCulate<Chn>:STATistics:DOMain:USER:STOP

Range Limit Lines On

Displays or hides the range limit lines in the diagram area. Range limit lines are two

vertical lines at the Start and Stop values of the active evaluation range ("Range 1" to

"Range 10").

Remote command:

CALCulate<Chn>:STATistics:DOMain:USER:SHOW

10.6.9 Smooth Shift Hold tab

Provides various functions to modify the entire measured trace.

●

The analyzer can export the raw complex (unformatted) data or formatted data.

The unformatted data are independent of all "Smooth Shift Hold" settings; see

"Formatted Values" on page 391.

●

For complex traces, if marker format and trace format do not coincide, the marker

values are calculated before Smoothing and Hold are applied. In this case, the dis-

played marker values may not behave as expected.
