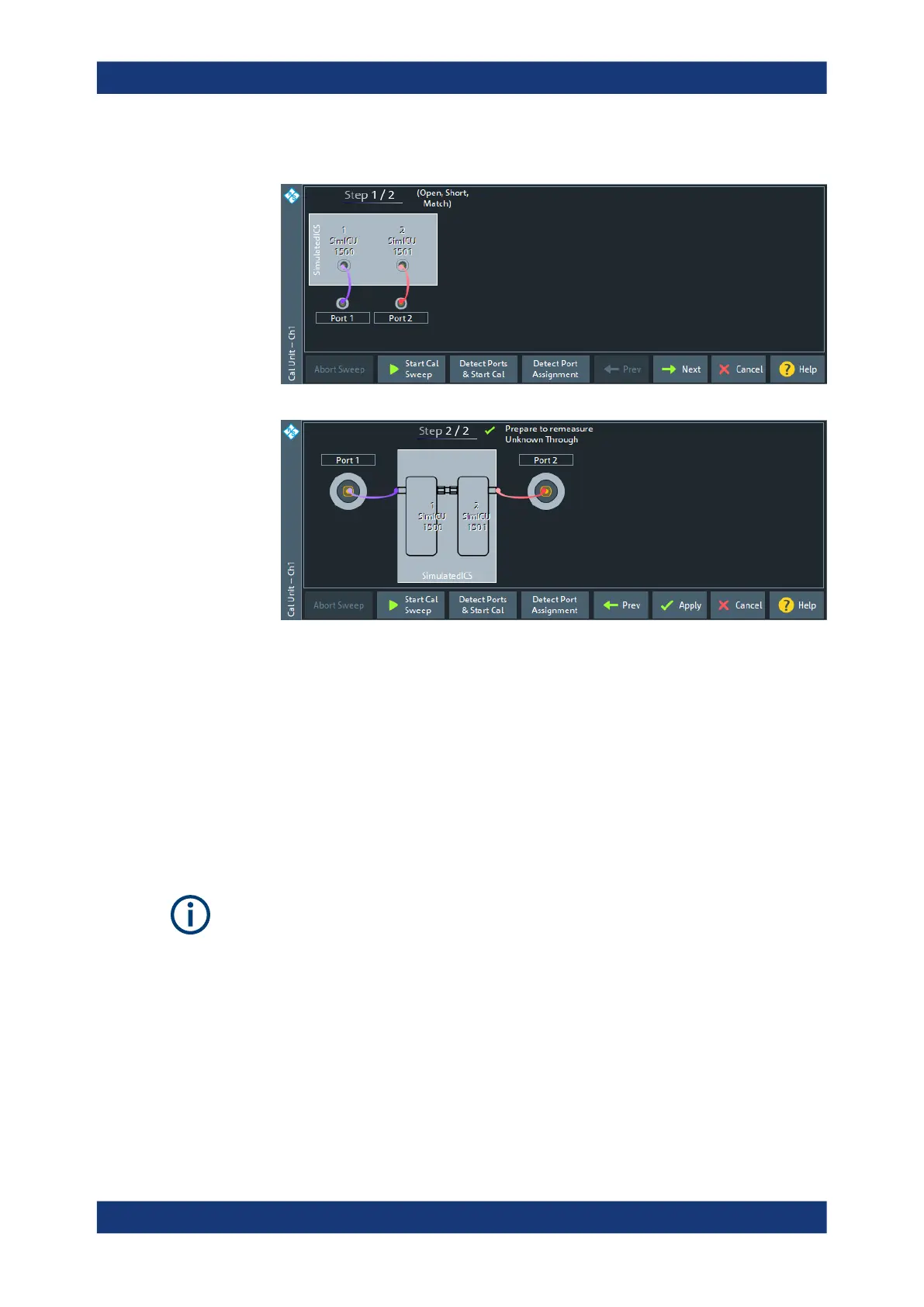

f) Step 1: OSM

g) Step 2: Unknown Through

5. Connect the DUT to the calibrated setup and perform the required measurements.

6. Refresh the calibration in situ, whenever required.

a) "Repeat" the calibration

b) Perform OSM measurements.

c) Skip Through measurements.

9.5.5.5 Calibration validation

This feature allows you to validate the active channel calibration against the expected

result from a stored characterization. It requires an R&S calibration unit.

●

Cal validation works with 2- and 4-port calibration units.

●

Currently, cal validation is limited to automatic calibrations. Furthermore, the same

calibration unit has to be used for calibration and validation.

Calibration validation provides an automated, single-click (basic) mode, and an

advanced mode for detailed validation and adjustment of limit tolerances, reporting,

and SCPI automation.

Basic mode

When "Cal Validation" is launched for the first time, it runs in basic mode. In this mode,

the R&S ZNL/ZNLE automatically detects the instrument ports connected to the cal
