VNA GUI reference

R&S

ZNL/ZNLE

390User Manual 1178.5966.02 ─ 20

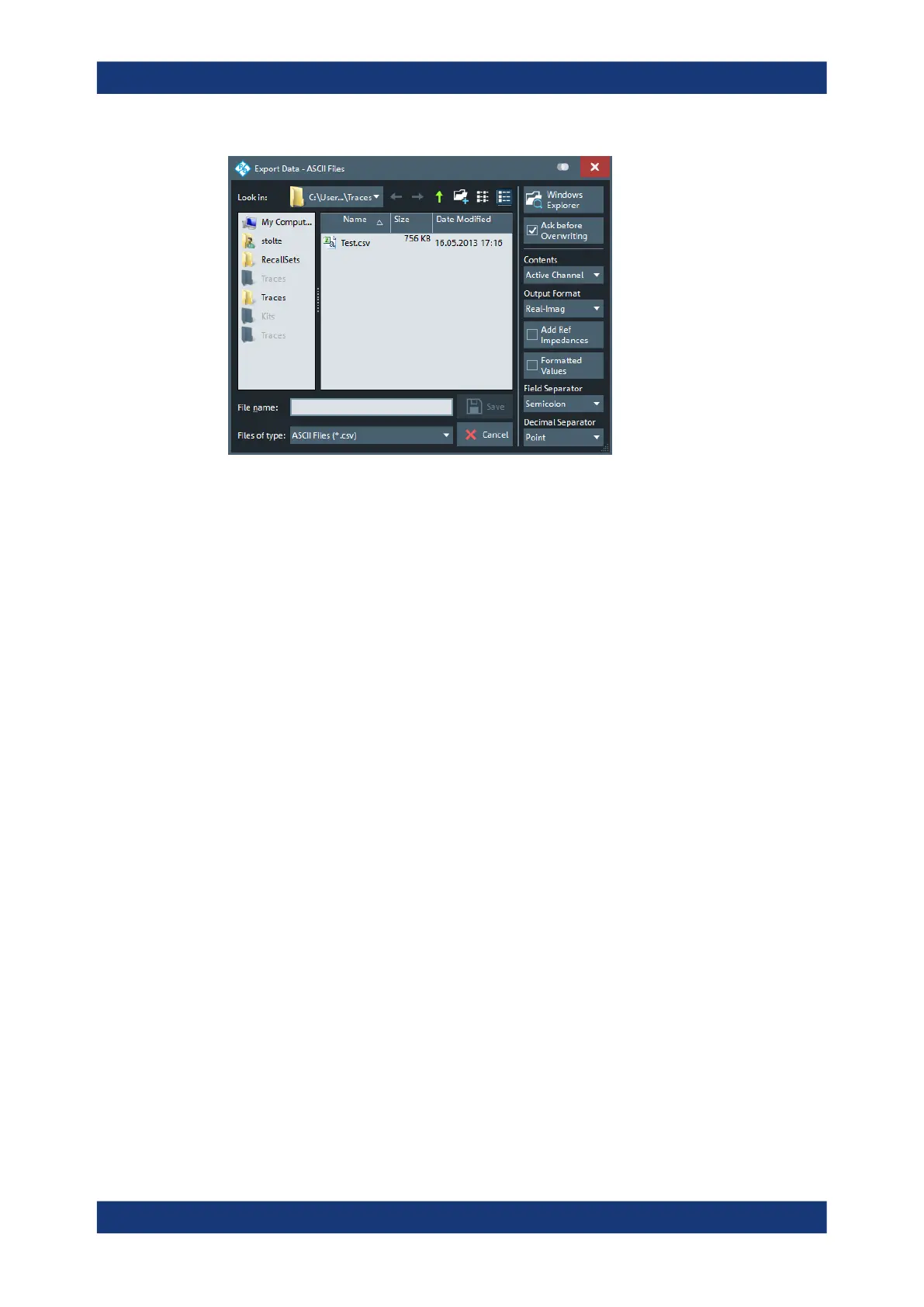

Figure 10-8: ASCII Trace files export

The "Export Data - <File Type>" dialog is a standard "Save File" dialog with several

additional buttons to specify the export options. Many options depend on the selected

export file format ("Files of type"). The displayed controls change accordingly.

The export options are remembered when the dialog is closed.

Ask Before Overwriting

Activates a message box to be displayed before an older trace file with the same file

name and directory is overwritten.

Contents

For ASCII (*.csv) and Matlab (*.dat) export, you can include the active trace, all

traces of the active channel (including memory traces), or all traces in all channels.

For Touchstone file export, it is possible to export the traces of the active channel or of

all channels. Consider "Conditions for Touchstone file export" on page 243.

In both cases, the R&S ZNL/ZNLE creates one file per channel.

File Format

Selects the Touchstone file format to be generated. See Chapter 9.4.2.1, "Touchstone

files", on page 238.

Remote command:

n.a.

Output Format

Selects the format of the exported raw, complex measurement values. The exported

values can be represented by the real and imaginary parts, the linear magnitude and

phase, or dB magnitude and phase; see also "Formatted Values" on page 391.

Export of Formatted Values is not available for Touchstone files.

Trace softtool
