VNA GUI reference
R&S
®
ZNL/ZNLE
501User Manual 1178.5966.02 ─ 20
Related information
Refer to the following sections:
●
Chapter 9.5.2.4, "Cal kit Files", on page 260
●
Chapter 10.12.2.2, "Calibration Kits dialog", on page 499
●
Chapter 9.5.2.1, "Calibration standard types", on page 256

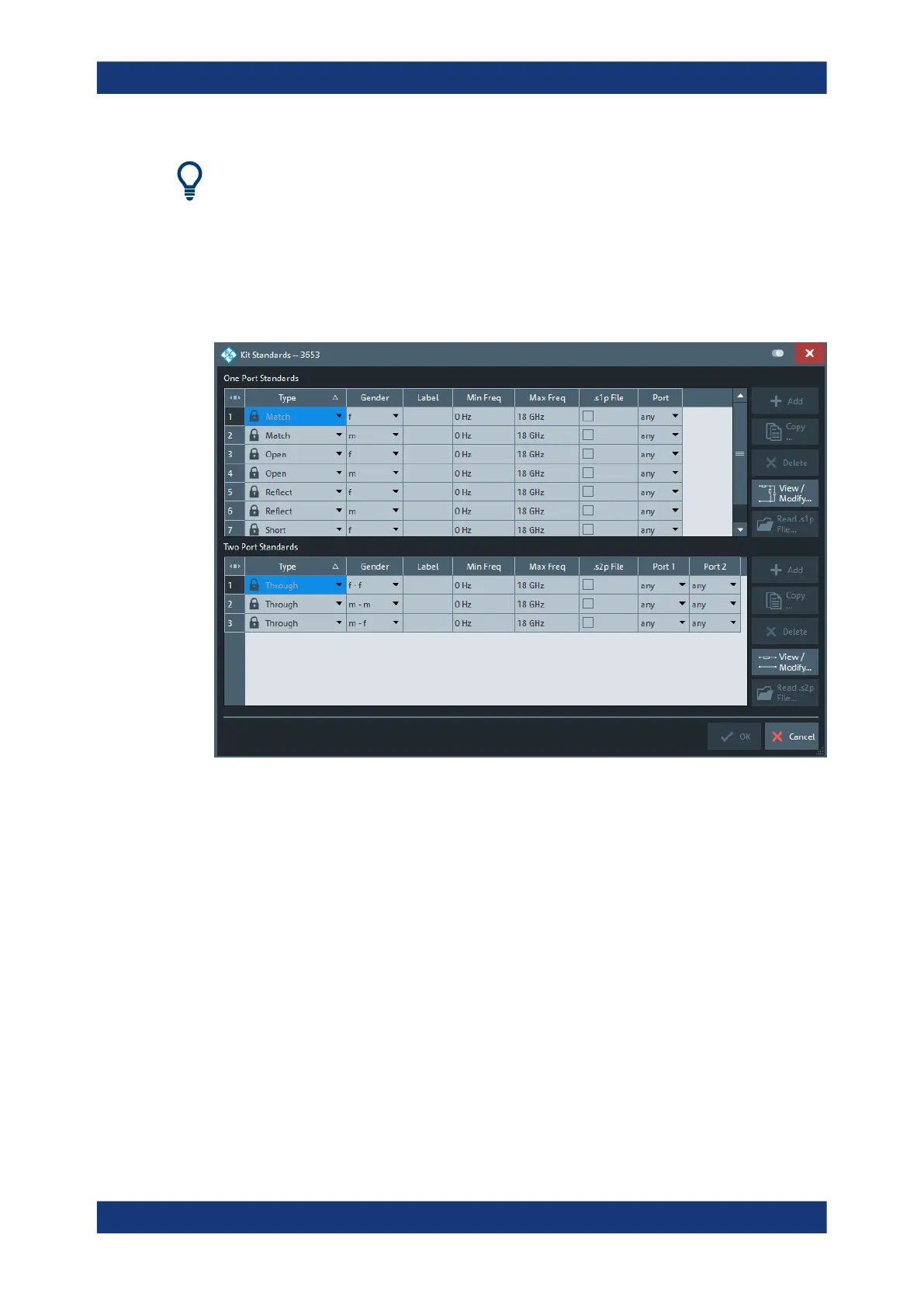

Access: Calibration Kits dialog > "Standards..."
One port and two port standards are listed in two separate tables. Most of the buttons
on the right side are available only if the "Kit Standards" dialog was opened for a user-
defined calibration kit.
One Port Standards / Two Port Standards
The standard tables contain the following information:
●
"Type" and "Gender" describe the calibration standard type; for an overview see
Chapter 9.5.2.1, "Calibration standard types", on page 256.
●
"Label" is a user-defined name of the standard. The label can help you identify a
standard or distinguish different standards with similar parameters.
●
"Min Freq" and "Max Freq" define the rated frequency range of the standard. Dur-
ing calibration, the analyzer checks whether the sweep range is within the validity
range of all measured standards and possibly generates a warning.
●
".s1p File" and ".s2p File" define whether the characteristics of the standard are
described by a Touchstone file rather than by a circuit model from which the
R&S ZNL/ZNLE can calculate the S-parameters. See "Read .s1p File... / Read .s2p
File... /" on page 502 and "View / Modify Cal Kit Standards dialog" on page 502.
●
"Port" defines whether the standard can be connected to any analyzer port or to
just one port (for one-port standards) or a pair of ports (for two-port standards).
