Operating modes, applications, channel setups, and result displays

R&S

ZNL/ZNLE

91User Manual 1178.5966.02 ─ 20

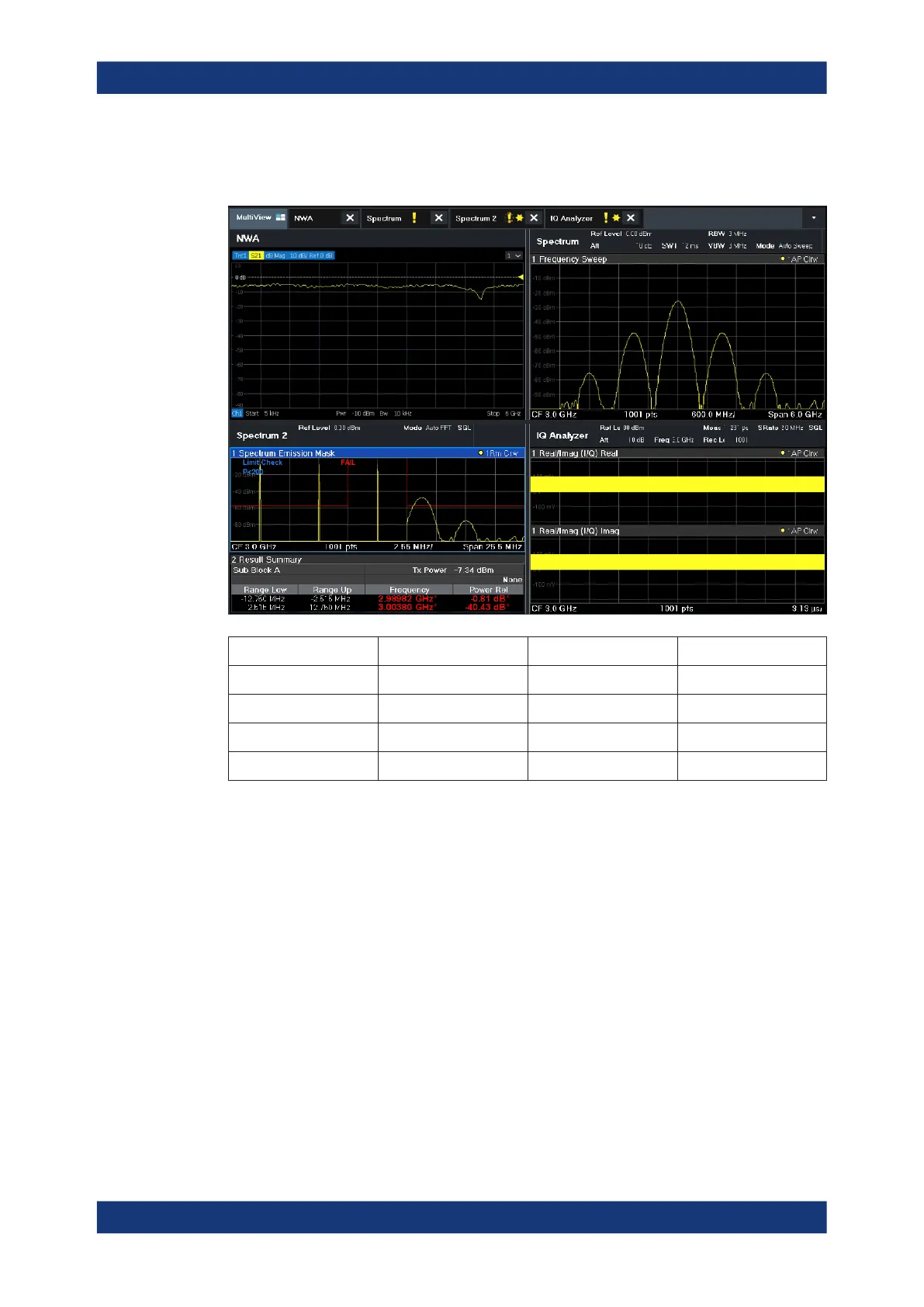

Example: Sequencer procedure

Assume the following active channel setup definition:

Tab name Application Sweep mode Sweep count

VNA VNA Cont. Sweep 2

Spectrum Spectrum Cont. Sweep 5

Spectrum 2 Spectrum Single Sweep 6

IQ Analyzer IQ Analyzer Single Sweep 7

For Single Sequence, the following sweeps will be performed:

2 x VNA, 5x Spectrum, 6x Spectrum 2, 7x IQ Analyzer

For Continuous Sequence, the following sweeps will be performed:

2 x VNA, 5x Spectrum, 6x Spectrum 2, 7x IQ Analyzer,

...

For Channel-defined Sequence, the following sweeps will be performed:

2 x VNA, 5x Spectrum, 6x Spectrum 2, 7x IQ Analyzer,

2 x VNA, 5x Spectrum,

...

Running a sequence of measurements
