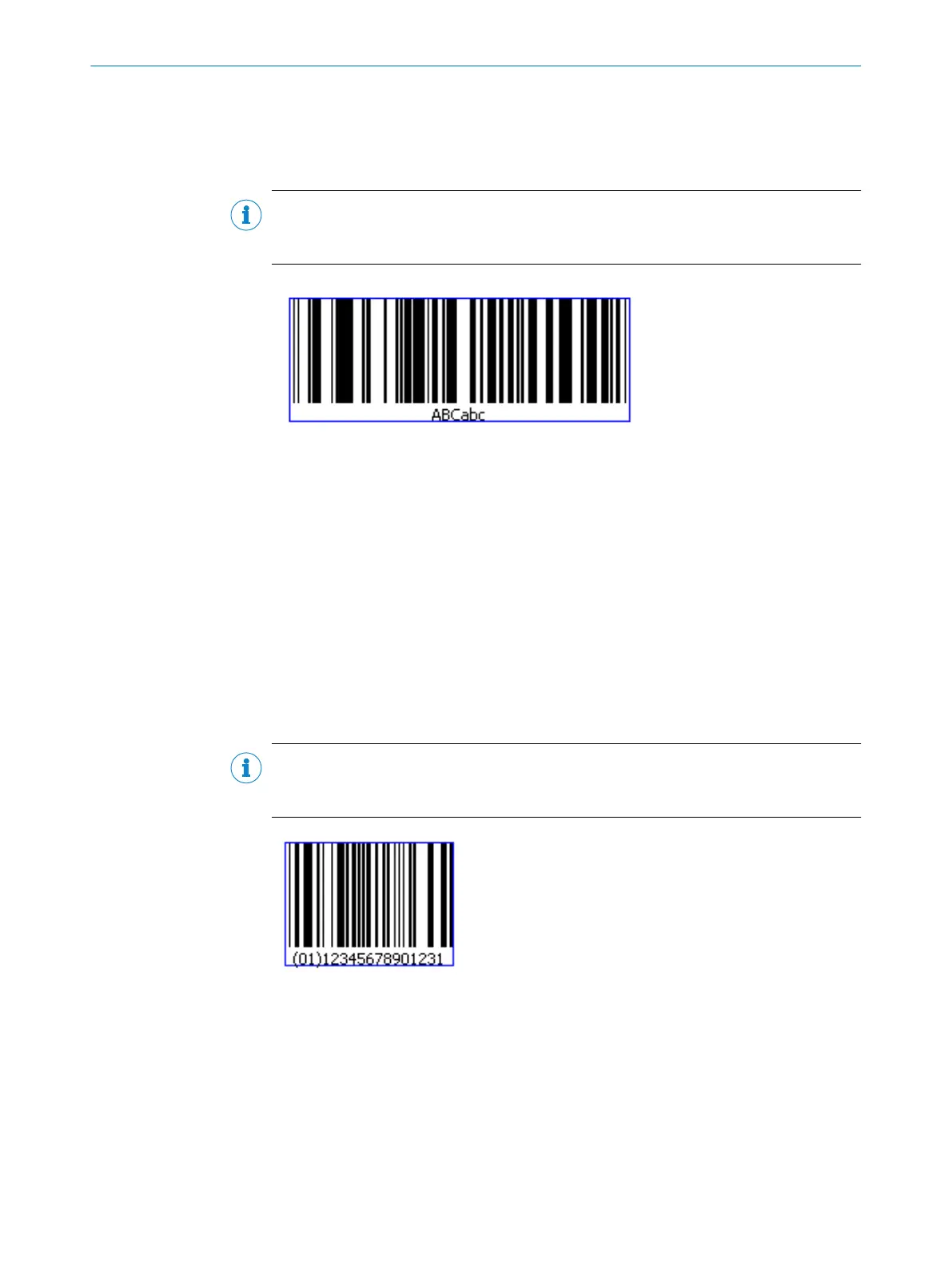

110 DataBar Expanded
If the DataBar Expanded parameter is activated, decoding is enabled for the relevant
code type.
NOTE
As only activated code types are processed, you can increase the processing speed by
deactivating the code types that are not being used.
•
Code name: GS1 DataBar Expanded (GDBE)
•
Character set: Max. 74 digits, max. 41 characters
•
Structure: 2 guard patterns: 2 modules each, both containing 1 bar and 1 gap;
4-22 data characters: 17 modules each, all containing 4 bars and 4 gaps; 2-11
finder patterns and 1 check digit
•
Intrinsic safety: High
•
Spatial requirements: Variable
•
Standard: ISO/IEC 646
•
Areas of application: Variable-measure foods, coupons
111
DataBar Limited
If the DataBar Limited parameter is activated, decoding is enabled for the relevant code
type.
NOTE
As only activated code types are processed, you can increase the processing speed by
deactivating the code types that are not being used.
•
Code name: GS1 DataBar Limited (GDBL)
•
Character set: 14 fixed digits
•
Structure: No quiet zone, the separator consists of a gap (1X) and a line (1X)
•
Intrinsic safety: High
•
Spatial requirements: Low
•
Standard: ISO/IEC 24727
•
Areas of application: Trade and industry (pharmaceuticals industry and electronics
sector)
SOPAS PARAMETER OVERVIEW
48
O N L I N E H E L P | Lector62x 8013778/YPV6/2016-01-14 | SICK
Subject to change without notice
