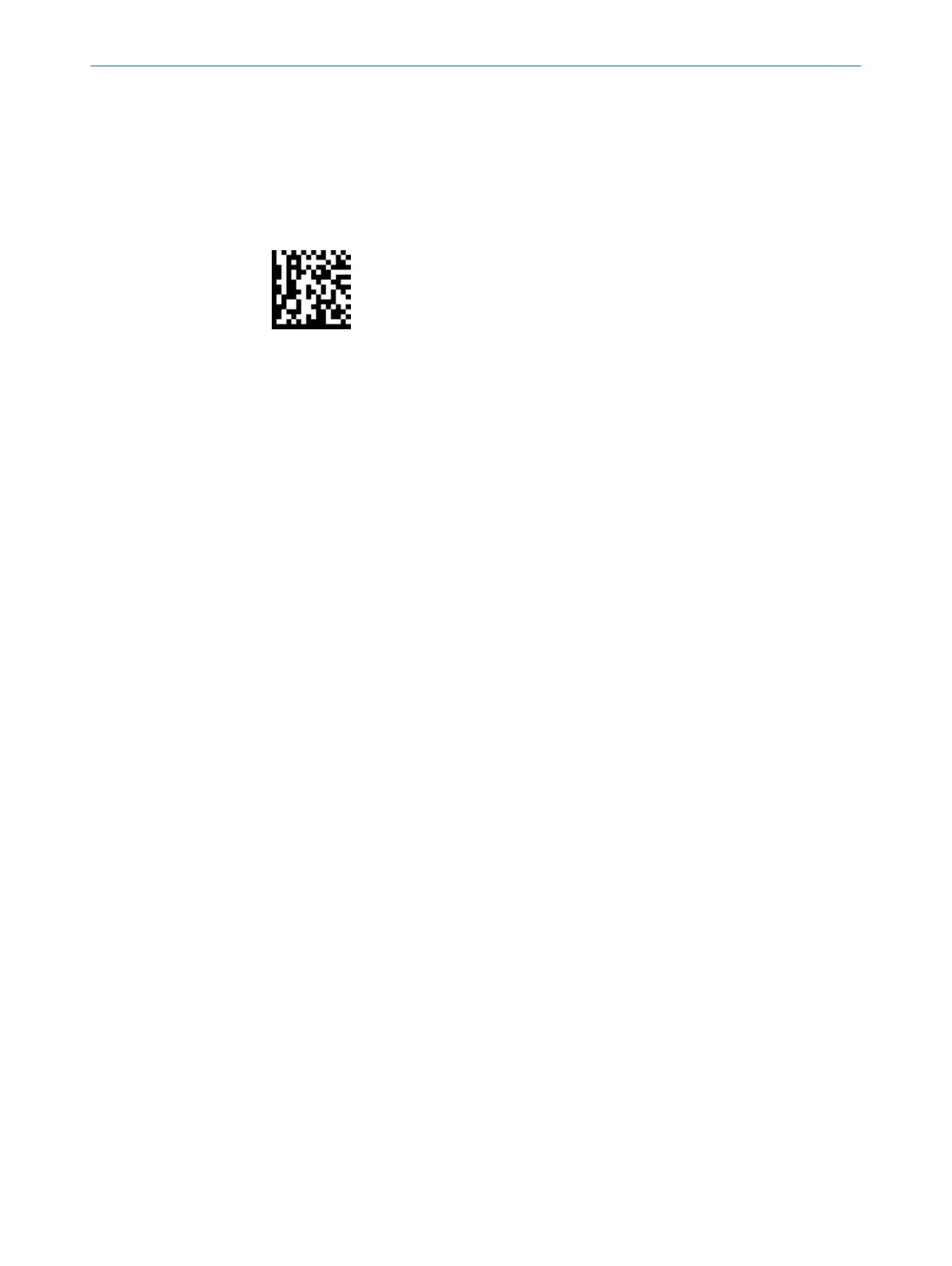

112 Data Matrix
If the Data Matrix parameter is activated, decoding is activated for the corresponding
code type. The configuration tab for the corresponding code type can be seen and
opened in SOPAS ET.
As only activated code types are processed, you can increase the processing speed by
deactivating the code types that are not being used.
•
Code name: Data Matrix
•
Max. number of numeric characters: 3,116
•
Max. number of alphanumeric characters: 2,335
•
Max. number of ASCII characters: 1,982
•
Max. number of ISO characters: 1,556
•
Structure: Symbol with L-pattern, rectangular symbols also possible
•
Standard: ISO/IEC 16022
•
Areas of application: Electronics, automotive, aviation, pharmaceuticals, and food
packaging
113 File Format
The file format can be configured in the File Format group.
114 File name
The File name parameter can be used to specify a file name for the log file.
115 File Path
The structure of the data storage can be specified under File Path.
116 Data output mode
The Data output mode parameter is used to define how often data is output.
•
SINGLE: The reading results are output once.
•
MULTIPLE: Initially, the reading results are output once. On expiry of a specific period
(Label Timeout or Condition Timeout), the data is output again. If the appropriate
setting is made, it is possible to distinguish between different objects with identi‐
cal codes.
117 Data bits / parity
The Data bits / parity parameter is used to define the number of data bits (8 or 7) and
the corresponding parity. The setting must match the one on the host.
118 Collection of data
Data is assigned to an object in the Collection of data group. Using the parameters in
the Collection of data group, object data can be uniquely set in relation to a particular
object and the code content can be uniquely assigned to an object.
SOPAS PARAMETER OVERVIEW
8013778/YPV6/2016-01-14 | SICK O N L I N E H E L P | Lector62x
49
Subject to change without notice
